1999 Kawasaki Lakota 300 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1999 Kawasaki Lakota 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

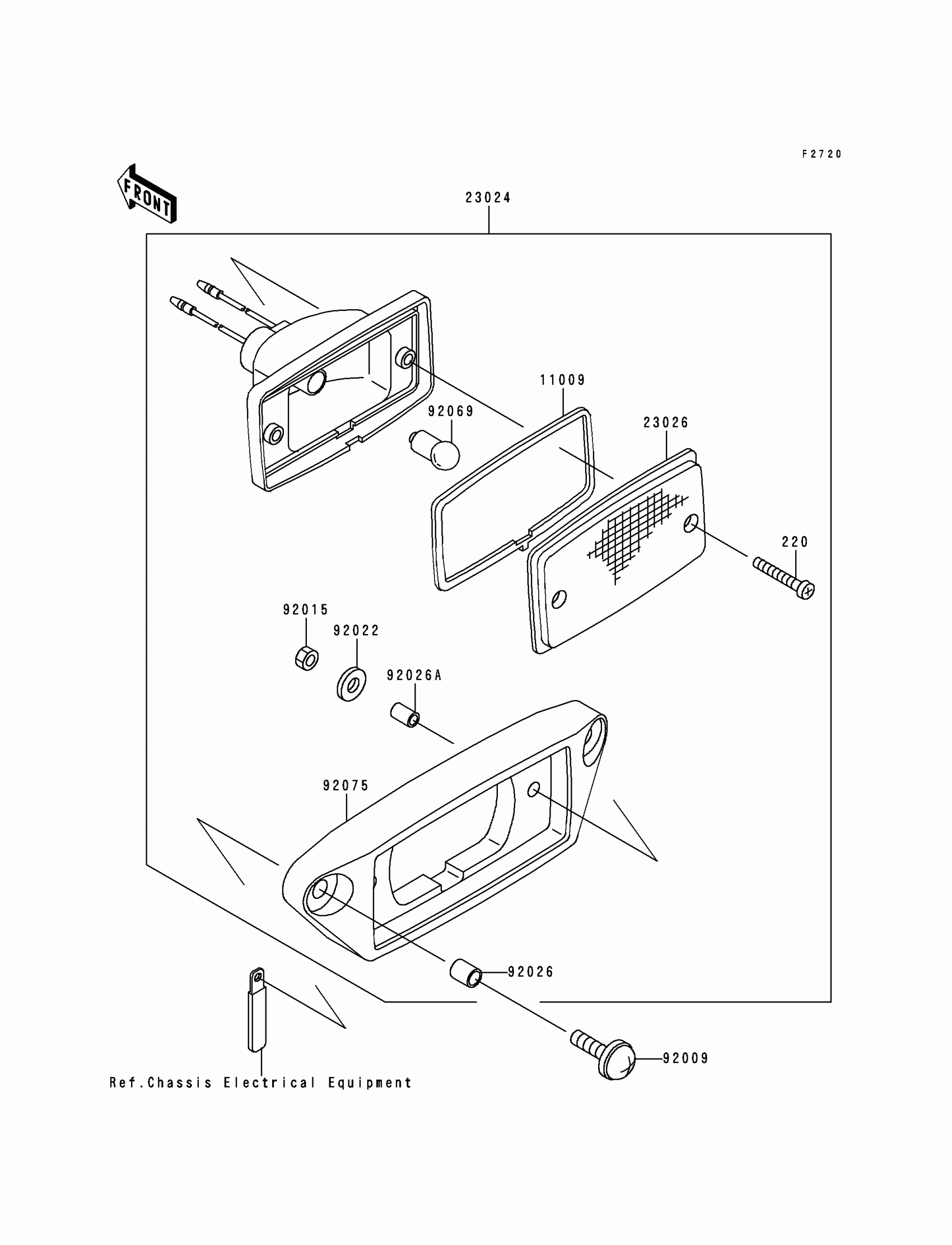

1999 Kawasaki Lakota 300 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS

220B0430

1
Out of stock

11009

GASKET,TAIL LAMP

11009-4004

1
Out of stock

23024

LAMP-ASSY-TAIL

23024-1123

1
Out of stock

23026

LENS,TAIL LAMP

23026-4003

1
Out of stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92015

NUT,4MM

92015-1550

1
Out of stock

92022

WASHER,PLAIN,4MM

92022-1762

1
Out of stock

92026

SPACER,6.3X8.3X10

92026-1260

1
Out of stock

92026A

SPACER,4.5X6.5X10

92026-1261

1
Out of stock

92069

BULB,12V 8W

92069-1012

1
Out of stock

92075

DAMPER,TAIL LAMP

92075-1782

1
Out of stock
