1999 Kawasaki Lakota 300 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 1999 Kawasaki Lakota 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

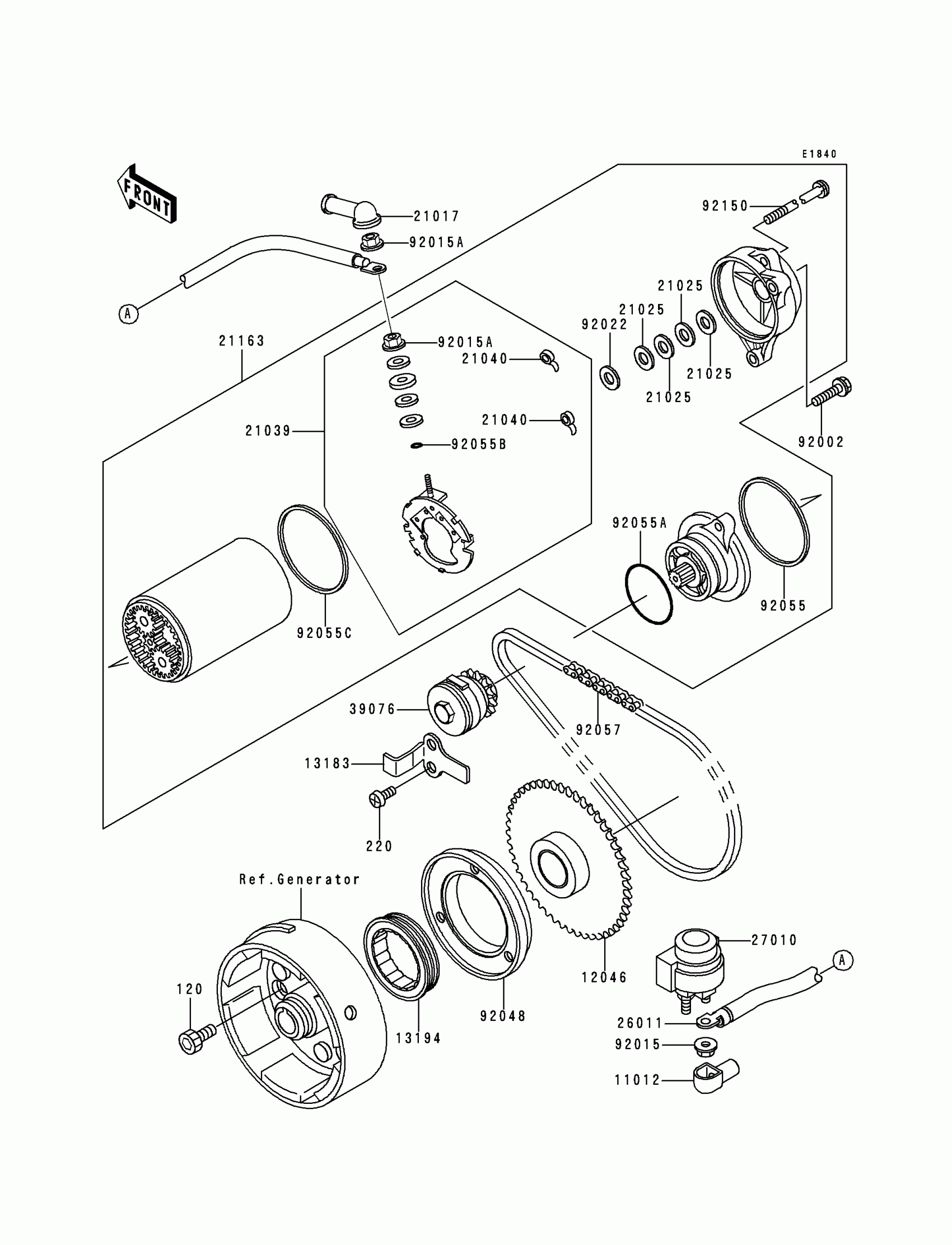

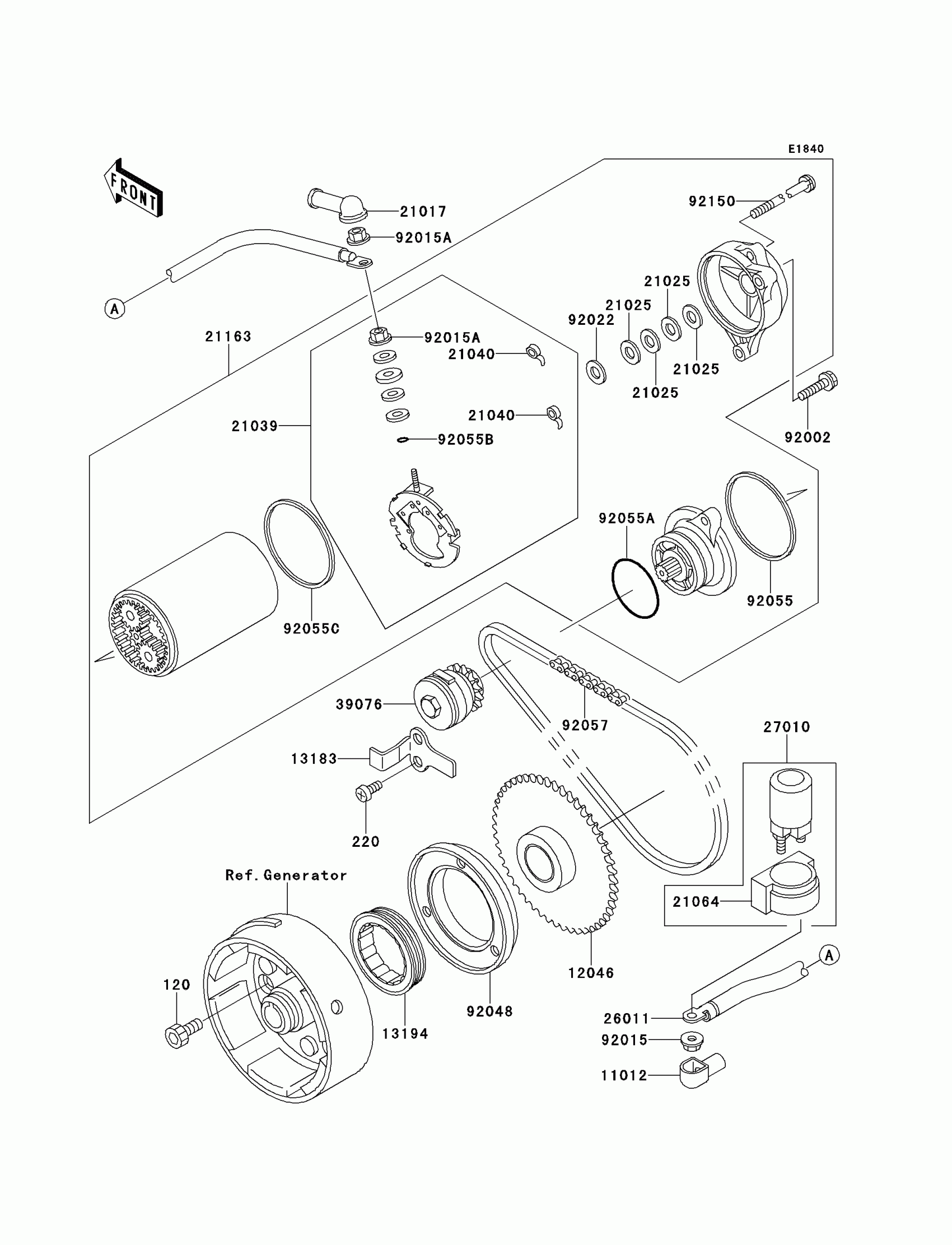

1999 Kawasaki Lakota 300 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X16

120P0816

1
Out of stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

11012

CAP,TERMINAL

11012-1354

1
Out of stock

12046

SPROCKET,STARTER

12046-1077

1
Out of stock

13183

PLATE,STARTER CHAIN

13183-1002

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1091

1
Out of stock

21017

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

21025

WASHER,9.1X18X0.2

21025-011

1
Out of stock

21039

BRUSH,CARBON

21039-1063

1
Out of stock

21040

SPRING-BRUSH

21040-1057

1
Out of stock

21163

STARTER-ELECTRIC

21163-1141

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1634

1
Out of stock

27010

SWITCH

27010-1351

1
Out of stock

39076

1

$195.29

In stock

92002

BOLT

92002-1664

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,9.1X18X0.8

92022-1132

1
Out of stock

92048

RACE,ONEWAY CLUTCH

92048-1095

1
Out of stock

92055

RING-O,64MM

92055-1086

1
Out of stock

92055A

RING-O,42.8MM

92055-1313

1
Out of stock

92055B

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055C

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92057

CHAIN,STARTER,KEC29H,64L

92057-1196

1
Out of stock

92150

BOLT,STARTER MOTOR

92150-1138

1
Out of stock
