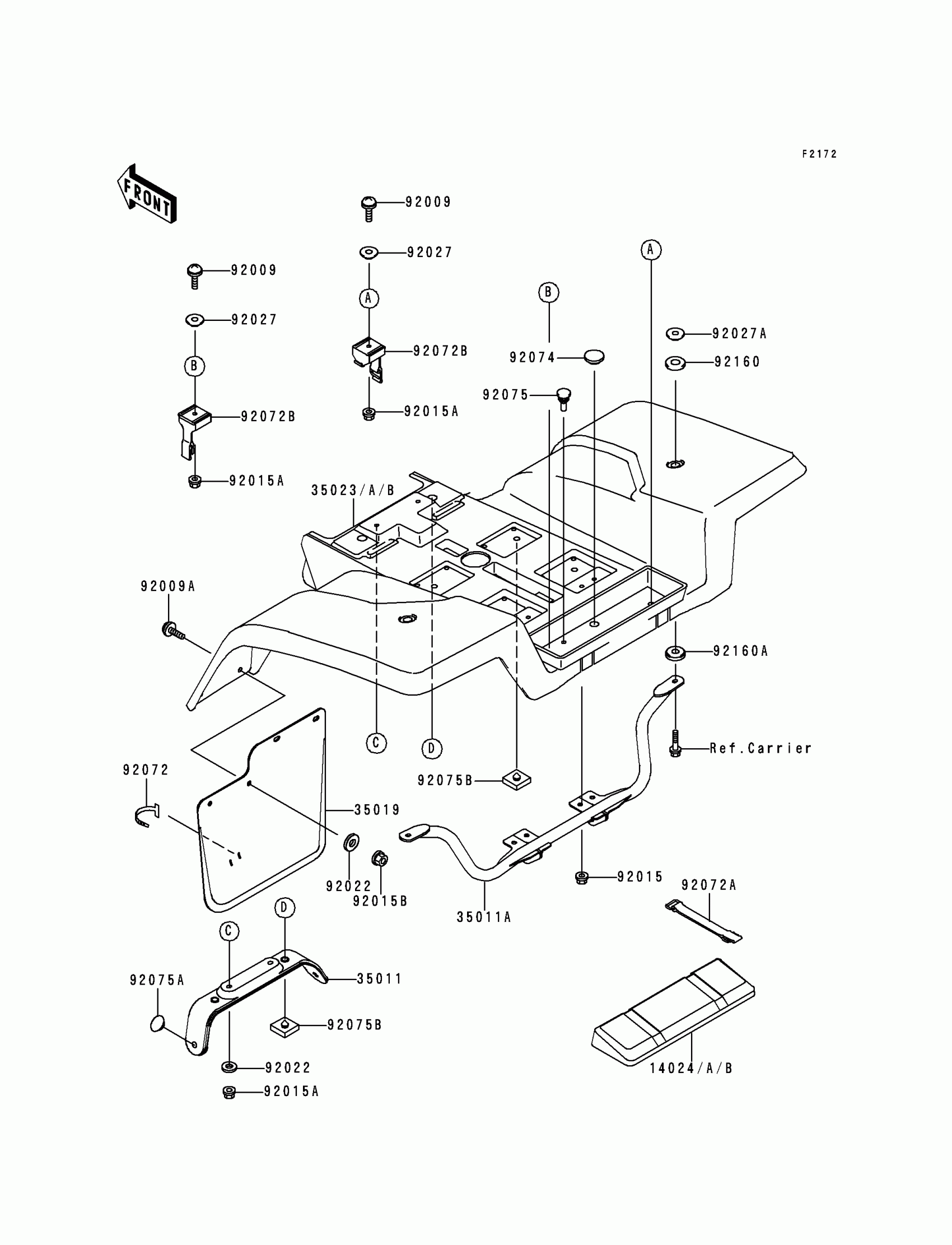

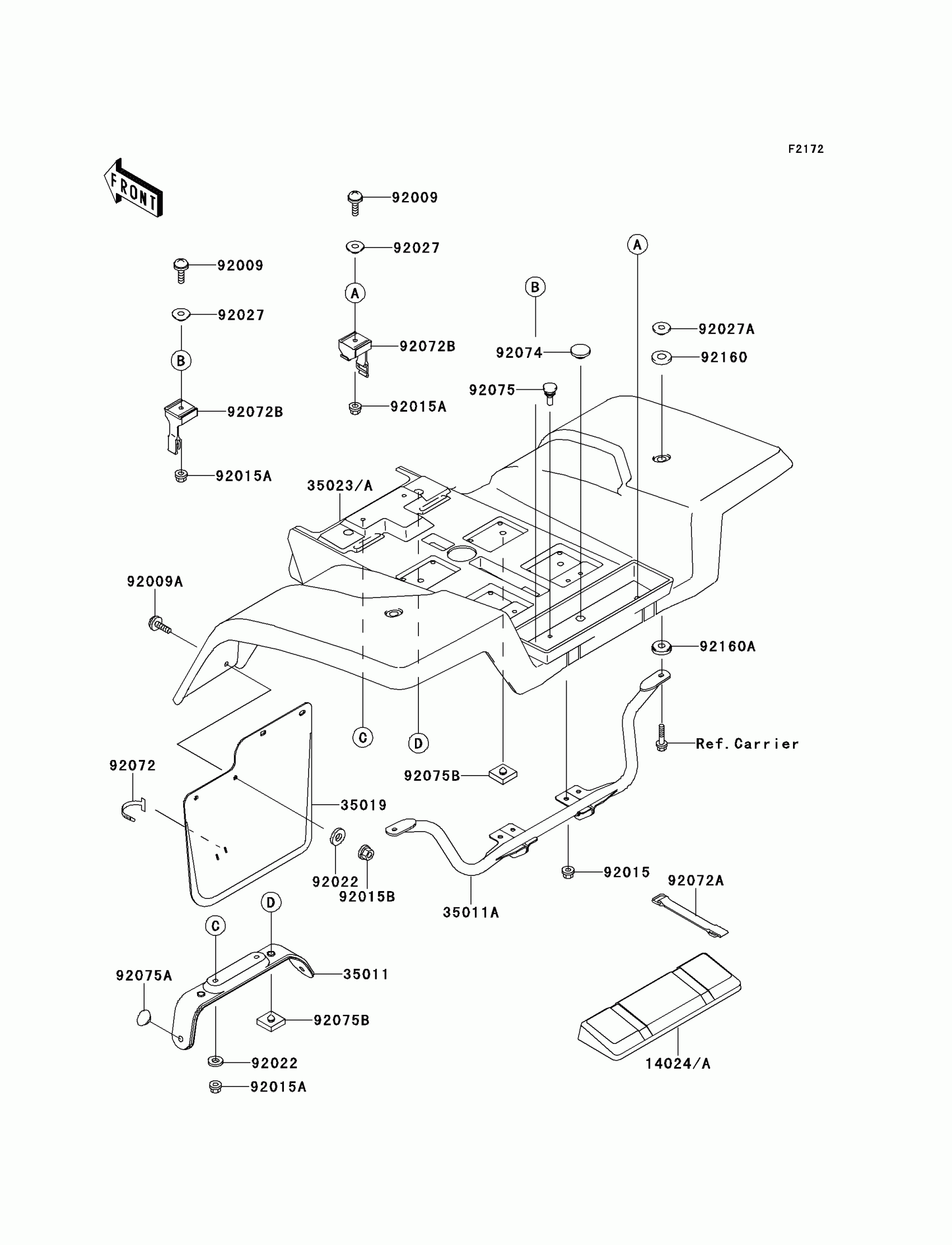

Kawasaki Lakota 300 Rear Fender(s) Diagram
#
Description
Price
14024A
COVER,REAR FENDER,H.GREEN
14024-1283-6A
$25.80
14024B
COVER,REAR FENDER,F.RED
14024-1283-6L
$26.19
35011
STAY,REAR FENDER,FR
35011-1316
$51.27
35011A
STAY,REAR FENDER,RR,SILVER
35011-1698-5A
$46.84
35019
FLAP,REAR FENDER,F.BLACK
35019-1321-6Z
$16.87
35023A
FENDER-REAR,H.GREEN
35023-1392-6A
Unavailable
35023B
FENDER-REAR,F.RED
35023-1392-6L
$149.58
92009
SCREW,6X14
92009-1288
$3.92
92009A
SCREW,6X16
92009-1621
Unavailable
92015
NUT,FLANGED,6MM,BLACK
92015-1233
$5.52
92015A
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92015B
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92022
WASHER,6.5X20X1.6
92022-1804
$1.40
92027
COLLAR,L=5.1
92027-1260
$6.22
92027A
COLLAR
92027-1767
$5.52
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=150
92072-1203
$14.23
92072B
BAND
92072-1215
$39.63
92074
PLUG,11X3.2
92074-038
$7.22
92075
DAMPER,6X10X15
92075-1808
$1.39
92075A
DAMPER
92075-1861
$10.35
92075B
DAMPER
92075-1882
$8.10
92160
DAMPER
92160-1011
$4.11
92160A
DAMPER
92160-1017
$5.78
