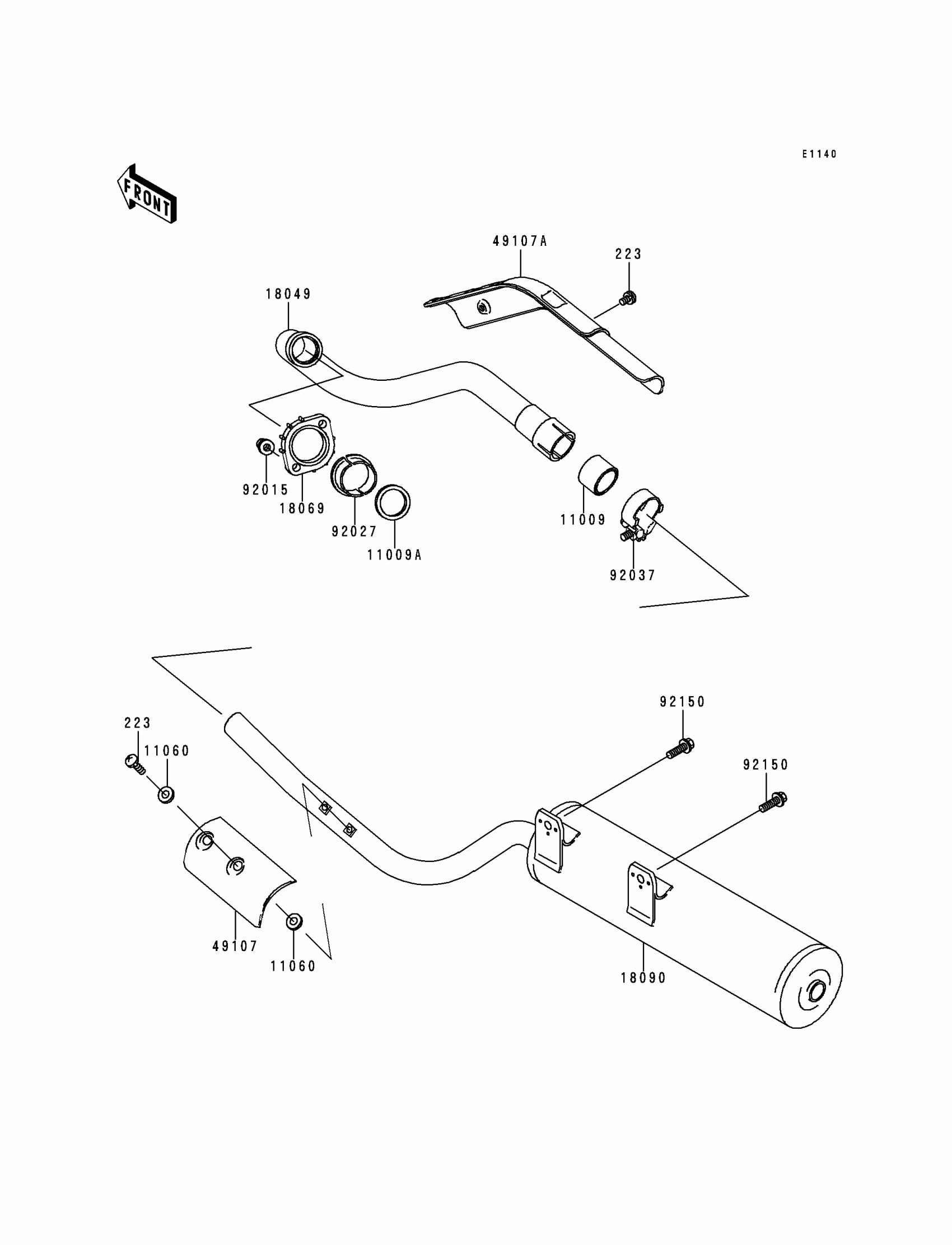

Kawasaki Lakota 300 Muffler(s) Diagram

Description

Price

223

SCREW-PAN-WS-CROS

223R0610

$3.27

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1718

$27.27

11009A

GASKET,EXHAUST PIPE H

11009-1866

$8.25

11060

GASKET,6.2X11.5X1.5

11060-1109

$4.26

18049

PIPE-EXHAUST

18049-1702

$98.10

18069

HOLDER-EXHAUST PIPE

18069-1014

$18.82

18090

BODY-COMP-MUFFLER

18090-1401

$331.88

49107

COVER-EXHAUST PIPE,RR

49107-1072

$32.79

49107A

COVER-EXHAUST PIPE

49107-1082

$74.58

92015

NUT,8MM

92015-1402

$4.69

92027

COLLAR,EXHAUST PIPE

92027-264

$4.73

92037

CLAMP

92037-1956

$20.75

92150

BOLT

92150-1158

$5.47
