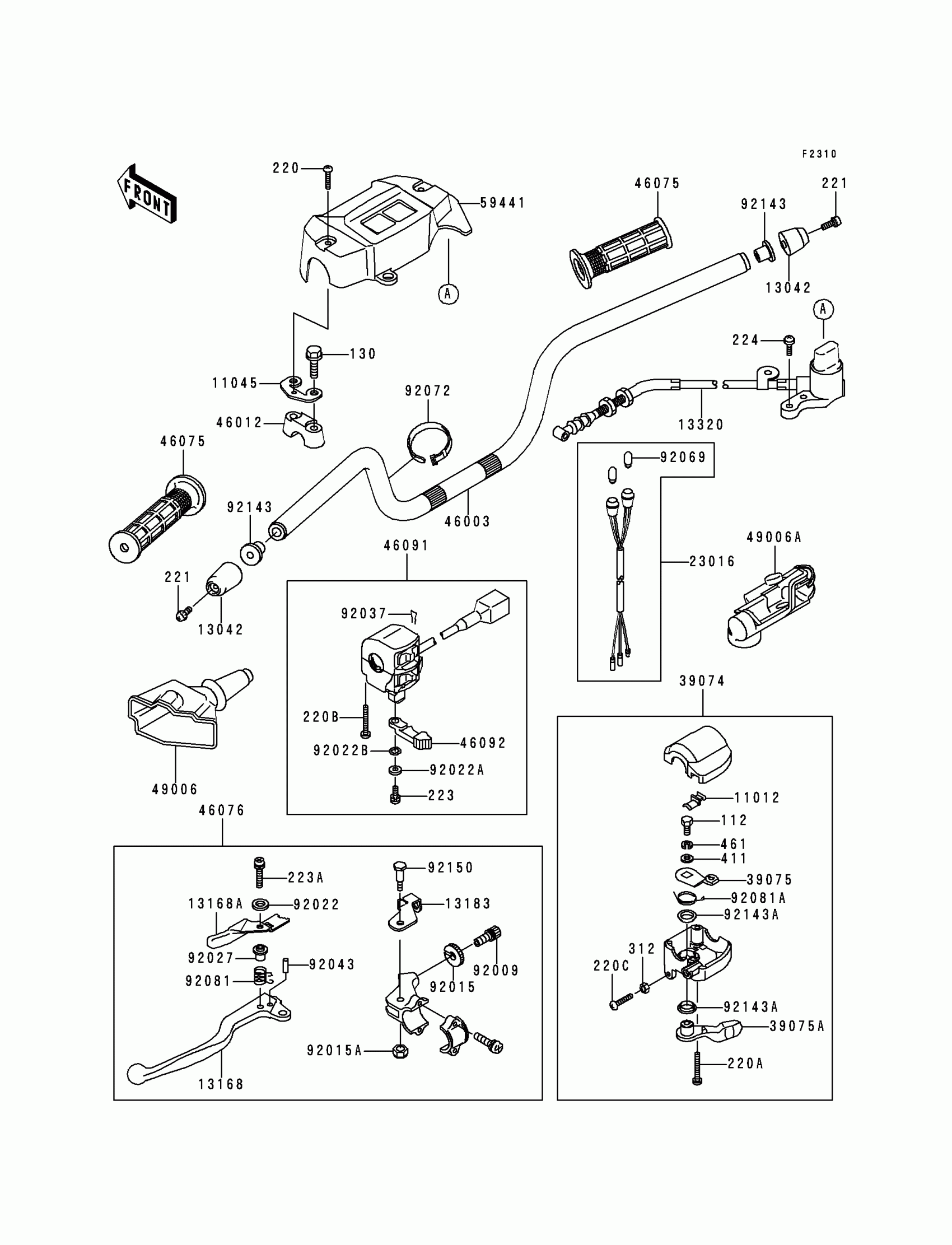

Kawasaki Lakota 300 Handlebar Diagram

#

Description
Price

112

BOLT-UPSET

112D0614

$0.49

130

BOLT-FLANGED,8X60

130P0860

$1.74

220

SCREW-PAN-CROS,4X20

220C0420

$0.94

220A

SCREW-PAN-CROS,5X30

220C0530

Unavailable

11012

CAP

11012-1425

Unavailable

11045

BRACKET,HANDLE COVER,RH

11045-1925

$7.69

13042

WEIGHT,HANDLE

13042-1005

$32.86

13168

LEVER,LH

13168-1449

$41.68

13168A

LEVER,LOCK

13168-1450

$29.01

13183

PLATE,LOCK

13183-1609

Unavailable

13320

LEVER-ASSY,REVERSE

13320-1010

$136.06

23016

LAMP-ASSY,NEUTRAL&REVERSE

23016-1083

$58.77

39074

LEVER-ASSY-THROTTLE

39074-1055

$79.09

39075

LEVER-THROTTLE,ARM

39075-1054

$11.51

39075A

LEVER-THROTTLE

39075-1059

$33.25

46003

HANDLE,SILVER NO.40

46003-1410-5A

$48.91

46012

HOLDER-HANDLE

46012-1168

$16.33

46075

GRIP

46075-1056

$25.83

46076

LEVER-ASSY-GRIP,LH

46076-1178

$52.54

46091

HOUSING-ASSY-CONTROL,LH

46091-1462

$233.96

46092

LEVER-GRIP,CHOKE

46092-1149

$5.69

49006

BOOT,CLUTCH LEVER

49006-1057

$21.09

49006A

BOOT,RH

49006-1198

Unavailable

59441

COVER-HANDLE

59441-1111

$34.26

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$16.33

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$8.86

92015A

NUT

92015-1829

$4.26

92022

WASHER,4MM

92022-1647

$4.21

92022A

WASHER,5MM

92022-1837

$3.35

92022B

WASHER,WAVE,5MM

92022-1838

$3.35

92027

COLLAR,RETURN SPRING

92027-1336

$13.68

92037

CLAMP,CLIP

92037-1836

$5.33

92043

PIN,SPRING,3X16

92043-1268

$10.28

92069

BULB,12V 3W,T7

92069-1020

$6.52

92072

BAND,L=149

92072-031

$5.00

92081

SPRING,LOCK RETURN

92081-1358

$5.46

92081A

SPRING

92081-1685

$79.09

92143

COLLAR,L=9.6

92143-1016

$6.22

92143A

COLLAR

92143-1138

$3.56

92150

BOLT

92150-1420

Unavailable

220B

SCREW-PAN-CROS,5X35

220C0535

$2.06

220C

SCREW-PAN HEAD,6X30

220C0630

$1.89

221

SCREW-CSK-CROS

221C0650

$3.84

223

SCREW-PAN-WS-CROS,5X12

223C0512

$4.32

223A

SCREW-PAN-WS-CROS,4X20

223D0420

$4.42

224

SCREW-PAN-WP-CROS,5X20

224B0520

$0.48

312

NUT-HEX,6MM,BLACK

312C0600

$3.57

411

WASHER-PLAIN,6MM

411E0600

$1.31

461

WASHER-SPRING

461L0600

$0.71
