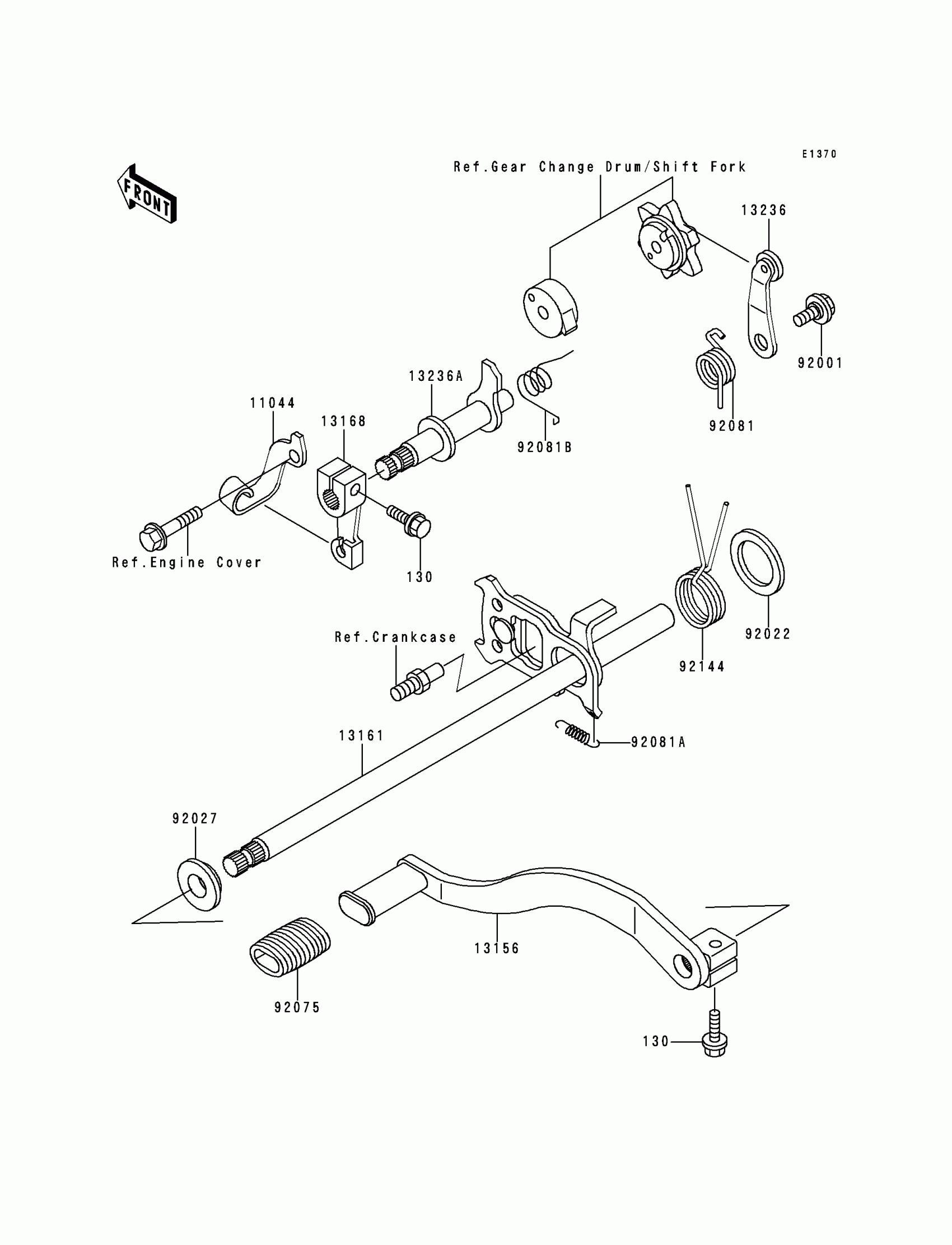

Kawasaki Lakota 300 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

$6.86

11044

BRACKET,REVERSE CABLE

11044-1303

$9.13

13156

LEVER-CHANGE,PEDAL

13156-1358

$72.47

13161

LEVER-COMP-CHANGE SHAFT

13161-1196

Unavailable

13168

LEVER,REVERSE

13168-1267

$27.46

13236

LEVER-COMP,CHANGE DRUM

13236-1178

$13.50

13236A

LEVER-COMP,REVERSE

13236-1239

$33.82

92001

BOLT,FLANGED,6X14

92001-1715

$10.65

92022

WASHER,25.5X36X1

92022-057

$4.38

92027

COLLAR,L=5.2

92027-1891

$12.48

92075

DAMPER

92075-1585

$9.45

92081

SPRING

92081-1496

$8.96

92081A

SPRING,CHANGE LEVER

92081-1753

$6.55

92081B

SPRING,REVERSE LEVER

92081-1850

$7.55

92144

SPRING

92144-1798

$12.19
