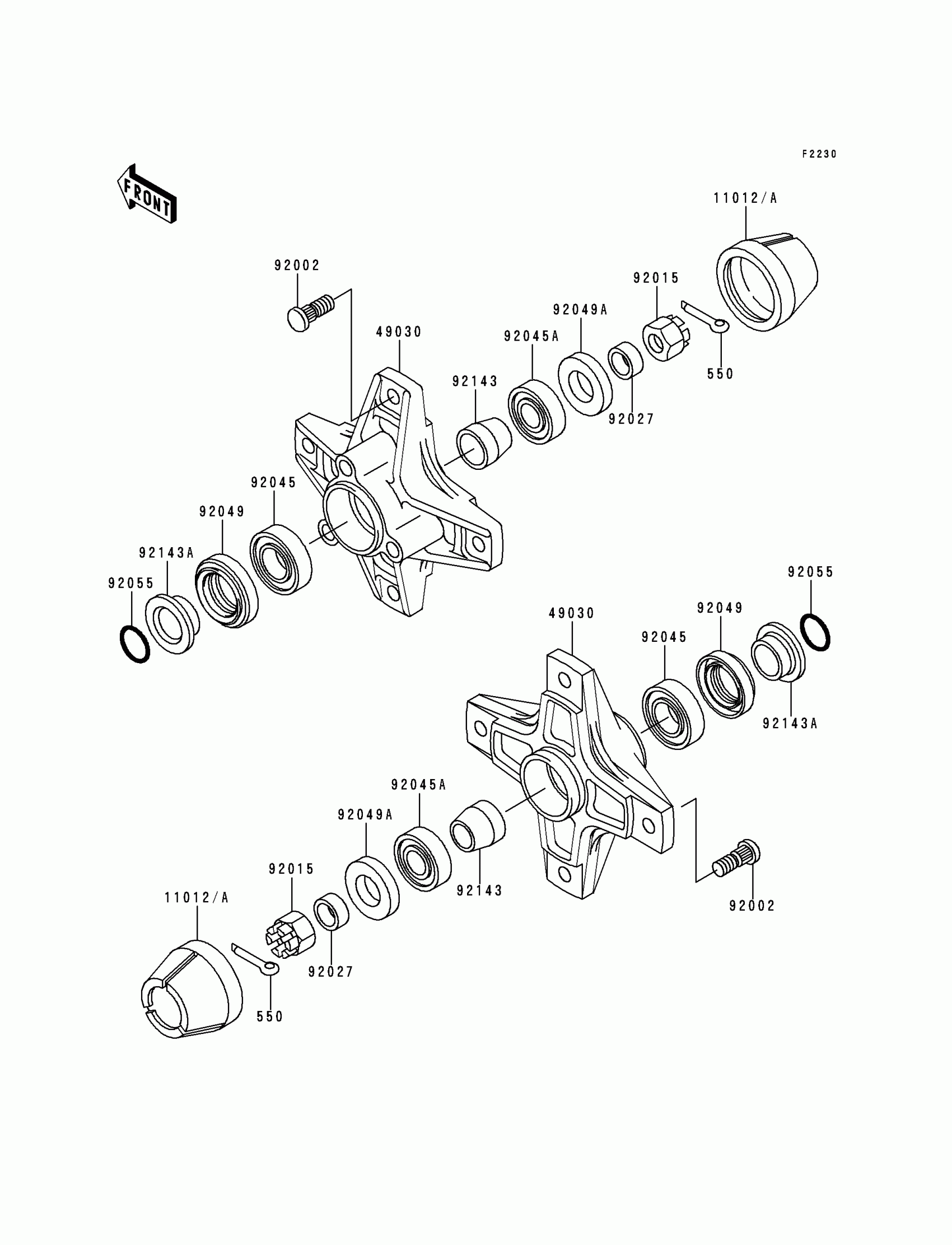

Kawasaki Lakota 300 Front Hub Diagram

Description

Price

550

PIN COTTER 4.0X30

550D4030

$2.33

11012A

CAP,WHEEL

11012-1969

$5.65

49030

HUB,FR

49030-1084

$294.67

92002

BOLT,10X30

92002-1388

$9.48

92015

NUT,CASTLE,16MM

92015-1947

$9.91

92027

COLLAR,16.0X22X9.5

92027-1815

$11.91

92045

BEARING-BALL,60/222RS

92045-1170

$34.21

92045A

BEARING-BALL,6203DDU2 AV2S

92045-1228

$22.99

92049

SEAL-OIL,SDD4 28 44 8

92049-1260

$14.64

92049A

SEAL-OIL

92049-1318

$4.13

92055

RING-O,21.5X1.5

92055-1293

$5.00

92143

COLLAR,L=25

92143-1007

$21.29

92143A

COLLAR,L=14.1

92143-1008

$33.25
