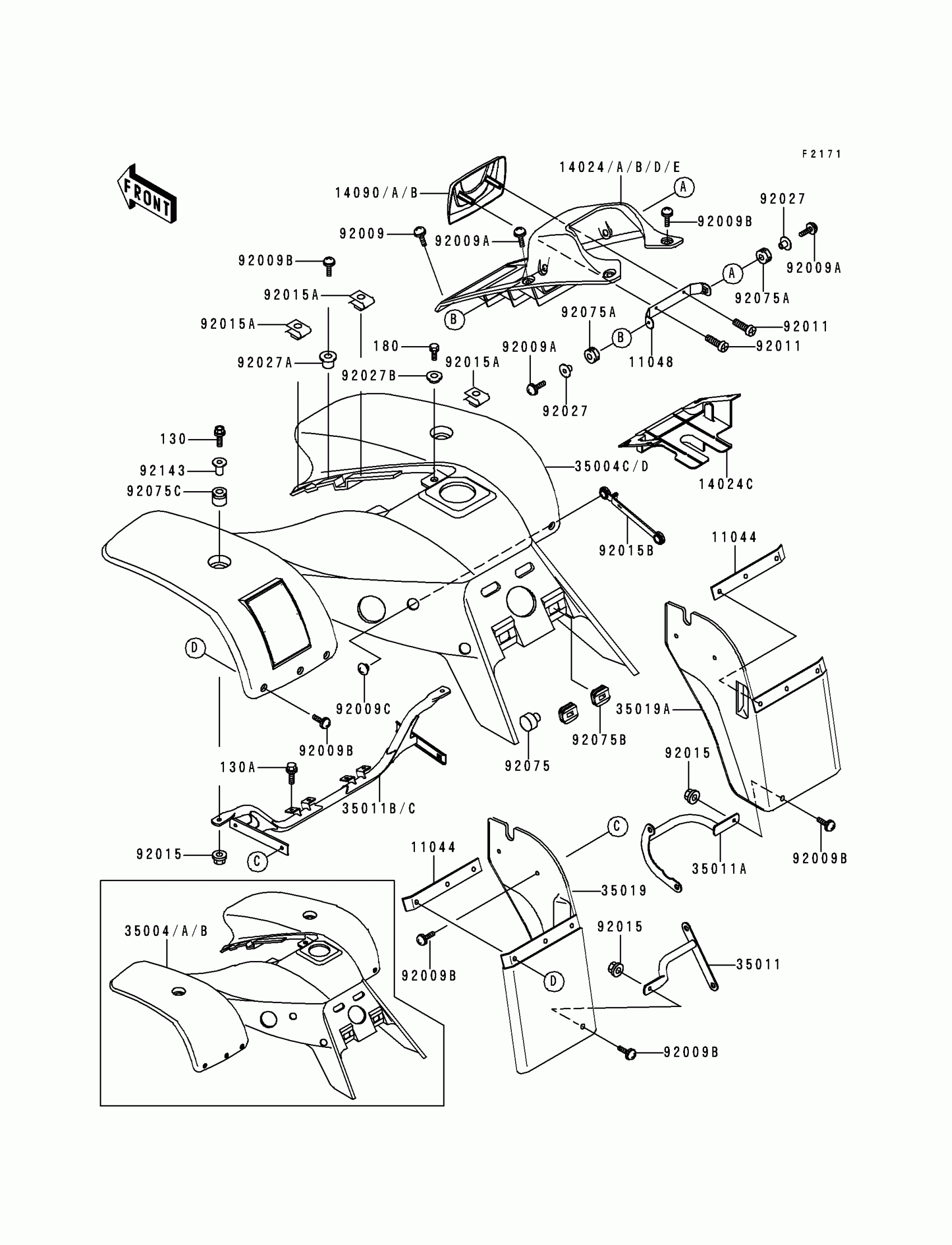

Kawasaki Lakota 300 Front Fender(s) Diagram
#
Description
Price
11044
BRACKET,FLAP
11044-1934
$11.40
11048
BRACKET,HEAD LAMP COVER
11048-1742
Unavailable
14024B
COVER,FRONT FENDER,BLACK
14024-1268-6D
$39.14
14024C
COVER,FRONT FENDER,INNER
14024-1297
$11.30
14090B
COVER,HEAD LAMP,BLACK
14090-1495-6D
Unavailable
35004C
FENDER-FRONT,H.GREEN
35004-1379-6A
Unavailable
35004D
FENDER-FRONT,F.RED
35004-1379-6L
$183.66
35011
STAY,FRONT FLAP,LH,SILVER
35011-1694-5A
$17.71
35011A
STAY,FRONT FLAP,RH,SILVER
35011-1695-5A
$17.71
35011B
STAY,FR FENDER,BLACK
35011-1697-10
$43.93
35019
FLAP,LH
35019-1172
$26.21
35019A
FLAP,RH
35019-1173
$26.21
92009
SCREW,6X18,BLACK
92009-1181
$2.80
92009A
SCREW,6X22,BLACK
92009-1256
$2.78
92009B
SCREW,6X14
92009-1288
$3.92
92009C
SCREW,16MM
92009-1508
Unavailable
92011
SCREW
92011-562
$1.65
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92015A
NUT,CLAMP,6MM
92015-1678
$5.52
92015B
NUT
92015-1701
$12.48
92027
COLLAR,L=13.1,BLACK
92027-1450
$6.22
92027A
COLLAR
92027-1757
$4.69
92027B
COLLAR,L=5.6
92027-1933
$5.78
130
BOLT-FLANGED,6X35
130G0635
$0.93
130A
BOLT-FLANGED,6X12
130P0612
$3.84
180
BOLT-UPSET-WS,6X35
180D0635
Unavailable
92075
DAMPER,DUAL SEAT
92075-023
$4.92
92075A
DAMPER,10X24X12
92075-1690
$5.00
92075B
DAMPER
92075-1834
$9.18
92075C
DAMPER
92075-1936
$5.47
92143
COLLAR,L=19.6
92143-1100
$7.79
