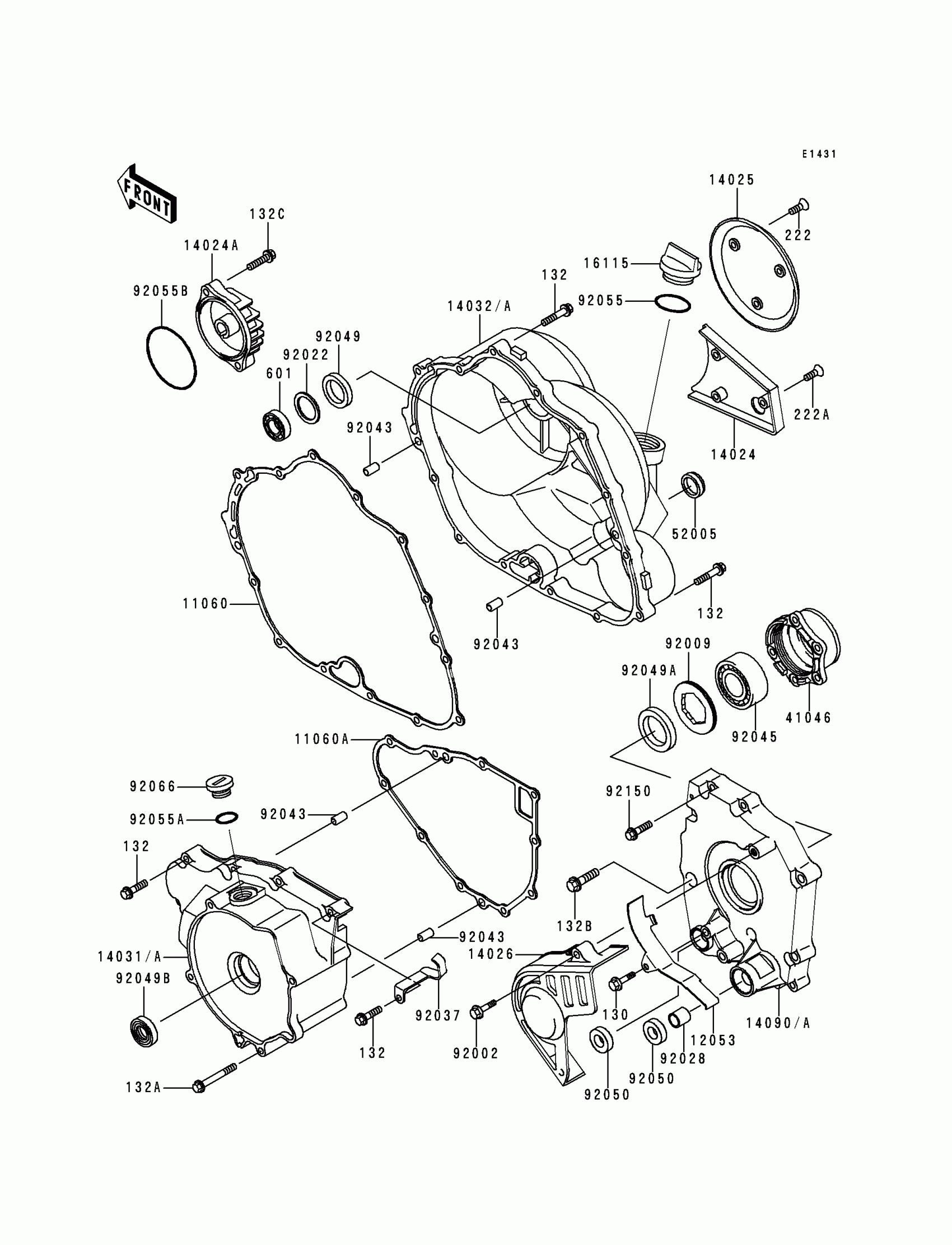

Kawasaki Lakota 300 Engine Cover(s) Diagram
#
Description
Price
130
BOLT-FLANGED
130J0610
$2.33
132
BOLT-FLANGED-SMALL,6X30
132J0630
$3.84
132A
BOLT-FLANGED-SMALL
132J0680
$5.55
132B
BOLT-FLANGED-SMALL,8X30
132J0830
$4.15
132C
BOLT-FLANGED-SMALL,6X25
132Y0625
$5.02
222
SCREW-CSK-RD-CROS
222C0512
$4.15
222A
SCREW-CSK-RD-CROS
222C0518
$4.67
601
BEARING-BALL,#6202C3
601B6202
$8.64
11060
GASKET,CLUTCH COVER
11060-1655
$26.39
11060A
GASKET,GENERATOR COVER
11060-1656
$9.81
12053
GUIDE-CHAIN
12053-1345
$8.53
14024
COVER,RELEASE ADJUSTER
14024-1061
$44.52
14024A
COVER,OIL FILTER
14024-1062
$56.15
14025
COVER
14025-1807
$38.87
14026
COVER-CHAIN
14026-1210
$45.61
14031A
COVER-GENERATOR
14031-1339
$156.98
14032A
COVER-CLUTCH
14032-1453
$245.48
14090A
COVER,TRANSMISSION
14090-1756
$53.25
16115
CAP-OIL FILLER
16115-1009
$14.30
41046
HOUSING-BEARING,GEAR CASE,FR
41046-1098
$125.67
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
92002
BOLT,6X30
92002-1534
$6.22
92009
SCREW,55MM
92009-1384
$34.48
92022
WASHER,25.3X33X1
92022-1109
$5.96
92028
BUSHING
92028-1347
$8.51
92037
CLAMP
92037-1872
$7.62
92043
PIN,6.2X8X14
92043-1263
$0.43
92045
BEARING-BALL,5205
92045-1221
$63.90
92049
SEAL-OIL,SCY 15X30X7
92049-1158
$25.27
92049A
SEAL-OIL,TC32457
92049-1159
$8.60
92049B
SEAL-OIL,TC25356
92049-1317
$13.97
92050
SEAL-OIL
92050-082
$8.58
92055
RING-O,31.5X2.6
92055-049
$4.31
92055A
RING-O,20X2
92055-1146
$8.58
92055B
RING-O,63.6X2.4
92055-1433
$10.14
92066
PLUG,COVER
92066-1163
$14.76
92150
BOLT,FLANGED,6X30
92150-1915
$3.35
