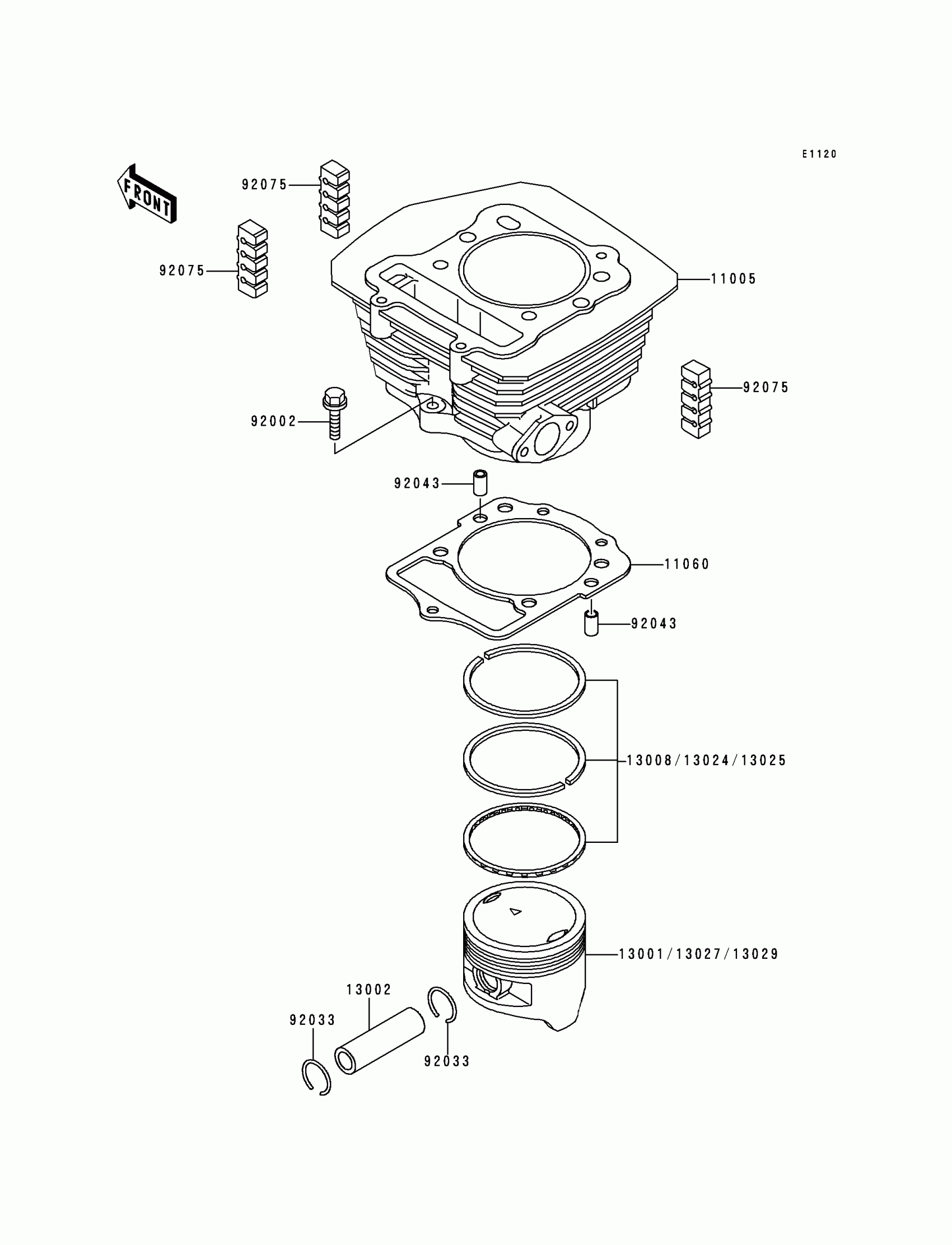

Kawasaki Lakota 300 Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1533

$614.06

11060

GASKET,CYLINDER BASE

11060-1652

$12.99

13001

PISTON-ENGINE,STD

13001-1430

$136.39

13002

PIN-PISTON

13002-1059

$25.06

13008

RING-SET-PISTON,STD

13008-1111

$80.31

13024

RING-SET-PISTON LL,O/S 1.00

13024-1080

$86.20

13025

RING-SET-PISTON L,O/S 0.50

13025-1093

$80.31

13027

PISTON-ENGINE LL,O/S 1.00

13027-1178

$132.19

13029

PISTON-ENGINE L,O/S 0.50

13029-1224

$132.19

92002

BOLT,6X28

92002-1105

$5.61

92033

RING-SNAP,20.5X1.2

92033-1099

$0.62

92043

PIN,6.2X8X14

92043-1263

$0.43

92075

DAMPER

92075-1657

$13.84
