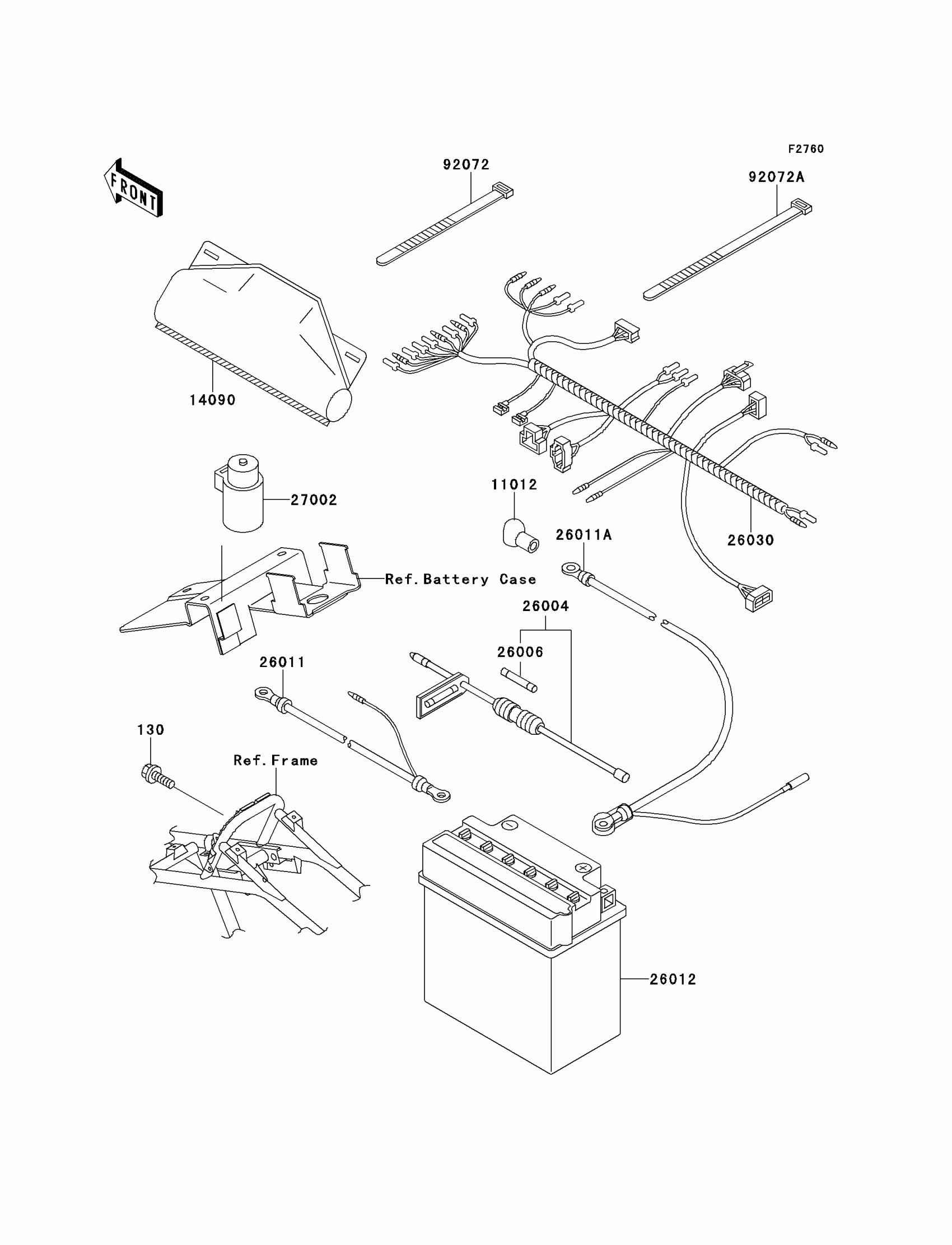

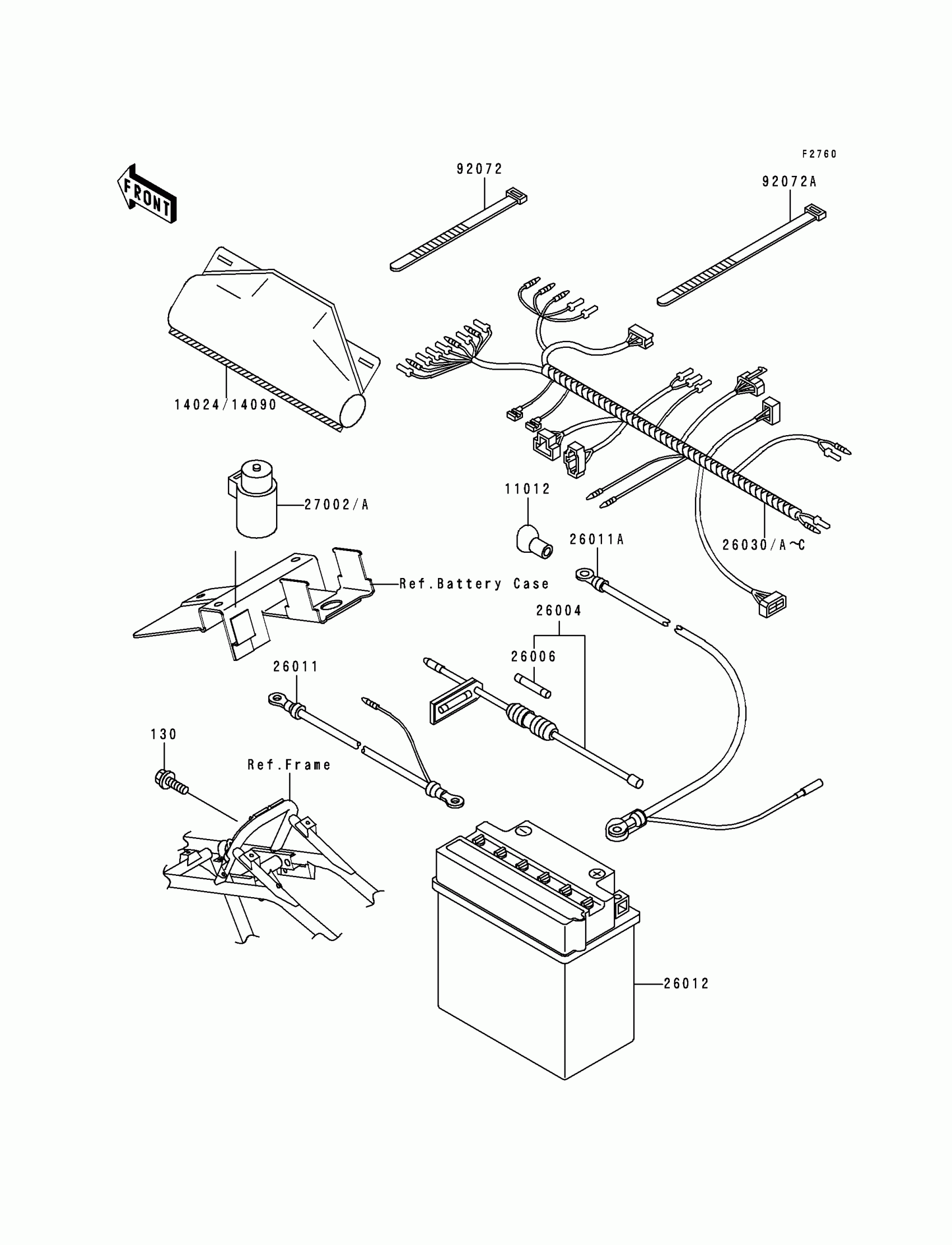

Kawasaki Lakota 300 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT

130B0612

$0.67

11012

CAP,TERMINAL

11012-1354

$10.19

14090

COVER,COUPLER

14090-1611

$8.51

26004

FUSE-ASSY

26004-3715

$57.35

26006

FUSE,30A,L=30

26006-1059

$4.96

26011

WIRE-LEAD,BATTERY(-)

26011-1601

Unavailable

26011A

WIRE-LEAD,BATTERY(+)

26011-1602

$20.03

26012

BATTERY,12V 14AH,YB14A-A2

26012-1146

Unavailable

26030C

HARNESS,MAIN

26030-1616

Unavailable

27002A

RELAY-ASSY

27002-1095

$58.83

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=188

92072-1239

$1.73
