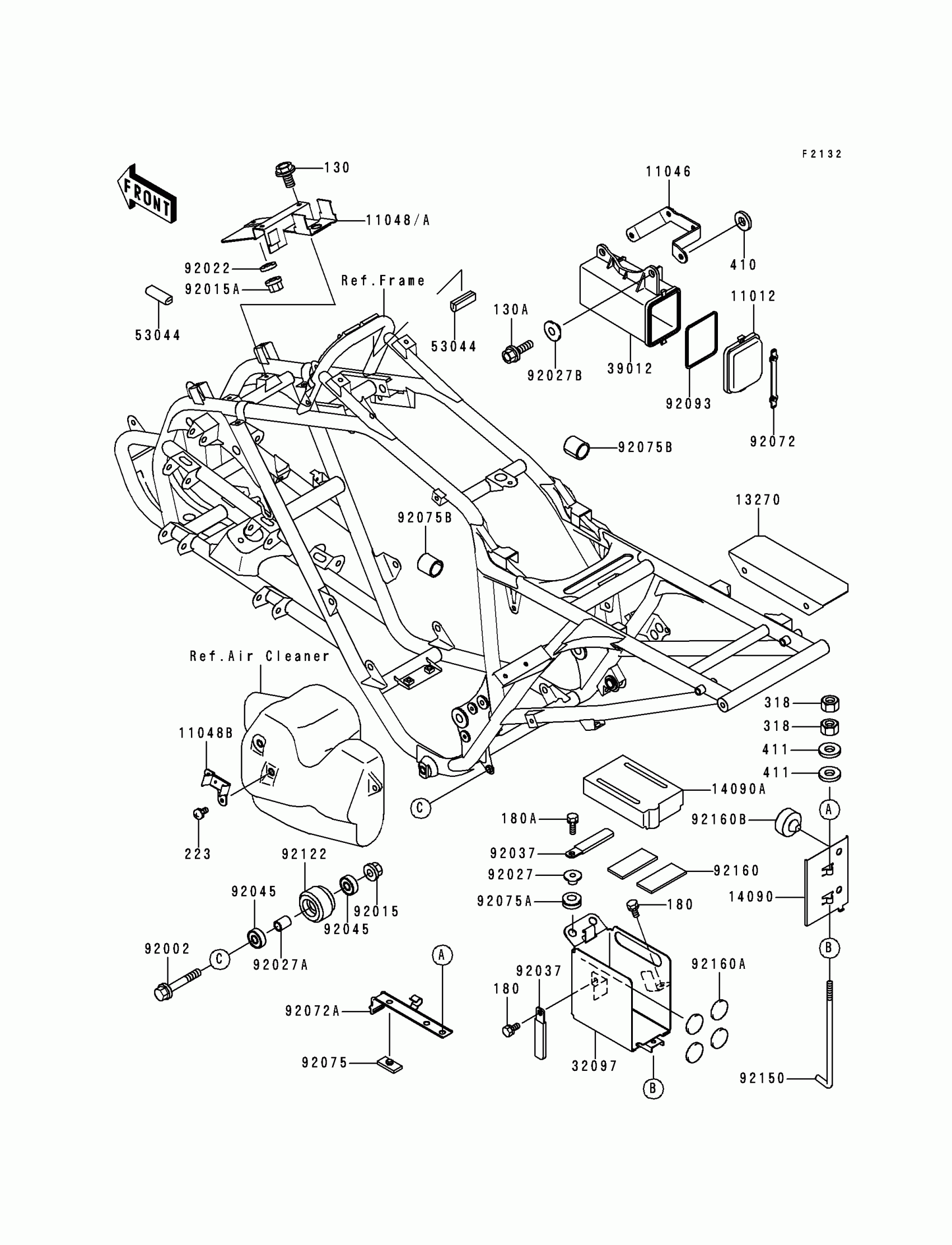

Kawasaki Lakota 300 Battery Case Diagram
#
130
BOLT-FLANGED,6X10
130B0610
$0.48
130A
BOLT-FLANGED,8X20
130G0820
$4.06
180
BOLT-UPSET-WS
180D0612
$4.01
180A
BOLT-UPSET-WS
180D0620
$3.00
223
SCREW-PAN-WS-CROS
223C0610
$4.12
318
NUT-HEX-SMALL
318J0800
$3.59
410
WASHER PLAIN 8MM
410B0800
$0.93
411
WASHER PLAIN
411F0800
$1.66
11012
CAP,TOOL CASE
11012-1606
$11.27
11046
BRACKET,STORAGE CASE
11046-1911
$26.08
11048
BRACKET,ELECTRIC,BLACK
11048-1771-10
Unavailable
11048B
BRACKET,AIR FILTER
11048-1772
Unavailable
13270
PLATE,MUFFLER
13270-1346
$10.10
14090
COVER,BATTERY
14090-1501
$16.28
14090A
COVER
14090-1573
$11.93
32097
CASE-BATTERY
32097-1155
$60.63
39012
CASE-STORAGE
39012-1055
$30.56
53044
TRIM,L=50
53044-1185
$5.29
92002
BOLT,FLANGED,8X52
92002-1857
$4.99
92015
NUT,8MM
92015-1432
$6.57
92015A
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92022
WASHER,7X16X1.2
92022-1344
$3.92
92027
COLLAR
92027-1045
$5.52
92027A
COLLAR
92027-1081
$9.59
92027B
COLLAR
92027-1354
$5.00
92037
CLAMP
92037-1679
$5.52
92045
BEARING-BALL,608DMC3 AV2S
92045-1227
Unavailable
92072
BAND,TOOL CASE CAP
92072-1226
$6.22
92072A
BAND,BATTERY
92072-1315
$8.28
92075
DAMPER
92075-1054
$5.00
92075A
DAMPER,FAN
92075-1167
$5.59
92075B
DAMPER,25X31X30
92075-1906
$6.57
92093
SEAL,TOOL CASE CAP
92093-1247
$5.29
92122
ROLLER,CHAIN GUIDE
92122-1102
$80.04
92150
BOLT,BATTERY
92150-1293
$10.65
92160
DAMPER
92160-1073
$7.98
92160A
DAMPER
92160-1472
$6.45
92160B
DAMPER
92160-3766
$2.91
