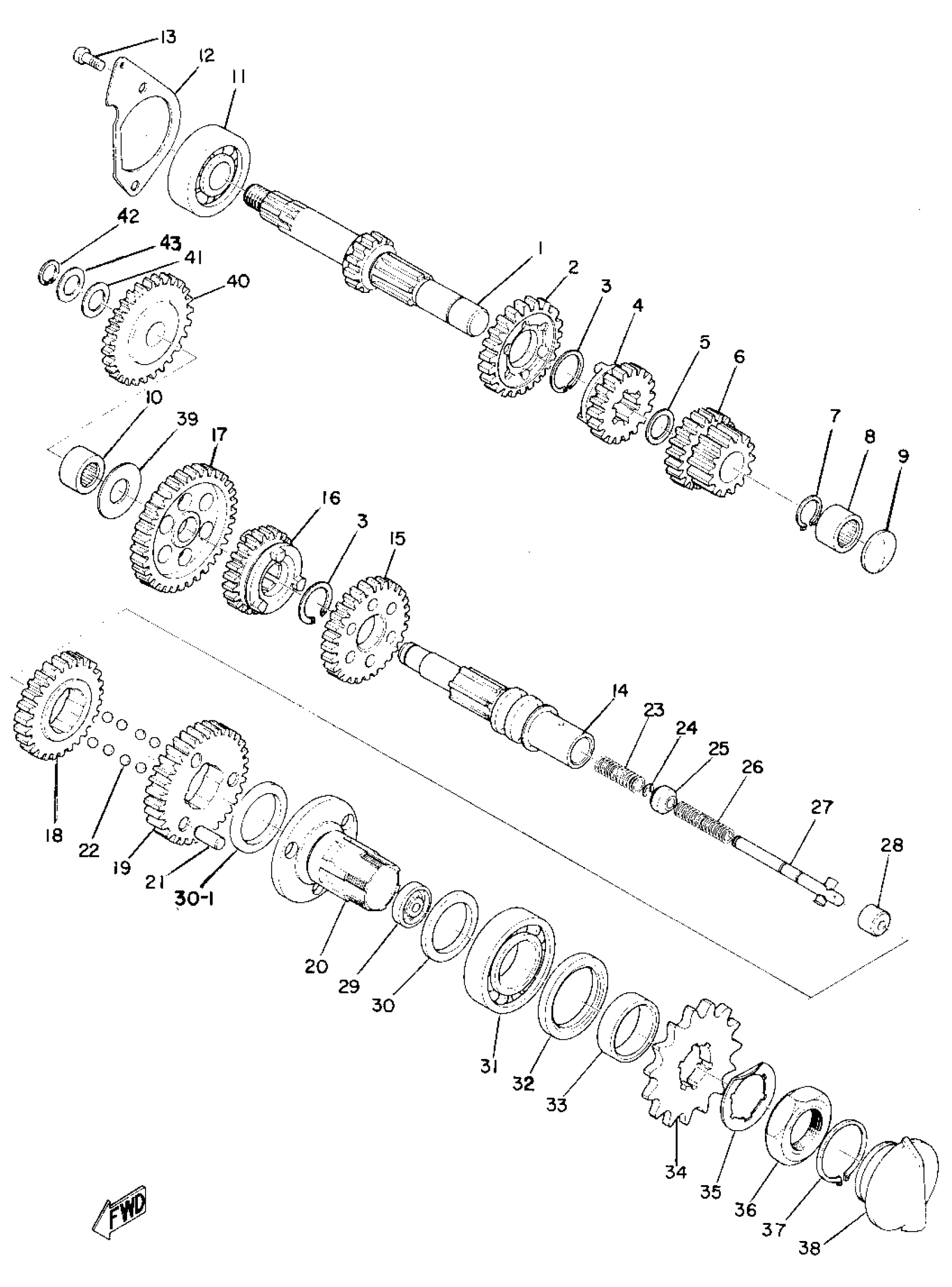

Yamaha L5T (L5T_L5TA) 1969 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSEMBLY

(234-17401-00-00)

Unavailable

1

AXLE, MAIN

(234-17411-00-00)

Unavailable

1

SHIM 2

(234-17428-00-00)

Unavailable

2

CIRCLIP (525)

93410-20038-00

$3.76

3

CIRCLIP (525)

93410-20038-00

$3.76

4

GEAR, 2ND PINION

(234-17121-00-00)

Unavailable

5

SHIM, MAIN AXLE (1.0)

164-17417-00-10

$7.99

6

PINION ASSEMBLY

(234-17180-00-00)

Unavailable

7

CIRCLIP

93440-15012-00

$8.49

8

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

9

PLUG, EXPANSION

(90330-24005-00)

Unavailable

10

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

11

BRG,R-B 6303 47MM 115G NK

93306-30302-00

$45.99

12

PLATE, COVER

(257-17471-01-00)

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

14

AXLE, COUNTER

(234-17431-00-00)

Unavailable

15

GEAR, 2ND WHEEL

(234-17221-00-00)

Unavailable

16

GEAR, 3RD WHEEL

(234-17231-00-00)

Unavailable

17

GEAR, 1ST WHEEL

(234-17211-00-00)

Unavailable

18

GEAR, DRIVE 1

(234-17281-00-00)

Unavailable

19

GEAR, DRIVE 2

(234-17291-00-00)

Unavailable

20

AXLE, DRIVE

(234-17421-00-00)

Unavailable

21

PIN, GEAR DRIVE

(234-17294-00-00)

Unavailable

22

BALL

93509-32012-00

Unavailable

23

NO LONGER AVAILABLE (234-18123-00)

90501-08303-00

Unavailable

24

CIRCLIP (EU0)

99080-04600-00

Unavailable

25

HEAD, SHIFTER

234-18412-00-00

Unavailable

26

SPRING, COMPRESSION

(90501-08303-00)

Unavailable

27

ROD, SHIFTER

(234-18411-00-00)

Unavailable

28

COLLAR

(90387-06017-00)

Unavailable

29

OIL SEAL, SDO-TYPE

93109-06004-00

Unavailable

30

SHIM 1

(234-17427-01-00)

Unavailable

31

BEARING

(93306-00602-00)

Unavailable

32

OIL SEAL, SD-TYPE

(93102-36057-00)

Unavailable

33

COLLAR

(90387-30199-00)

Unavailable

34

SPROCKET, DRIVE

(234-17461-50-00)

Unavailable

34

SPROCKET, DRIVE

(234-17461-60-00)

Unavailable

35

WASHER, LOCK

(90215-26103-00)

Unavailable

36

NUT, HEXAGON

(90170-28099-00)

Unavailable

37

CIRCLIP, S-TYPE

(93410-36018-00)

Unavailable

38

KNOB, SHIFTER

(234-18164-00-00)

Unavailable

39

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

40

GEAR, KICK IDLE

(201-15651-00-00)

Unavailable

41

WASHER

(132-15653-00-10)

Unavailable

42

CIRCLIP(13M)

99009-13400-00

Unavailable

43

WASHER, PLATE

90201-13013-00

Unavailable
