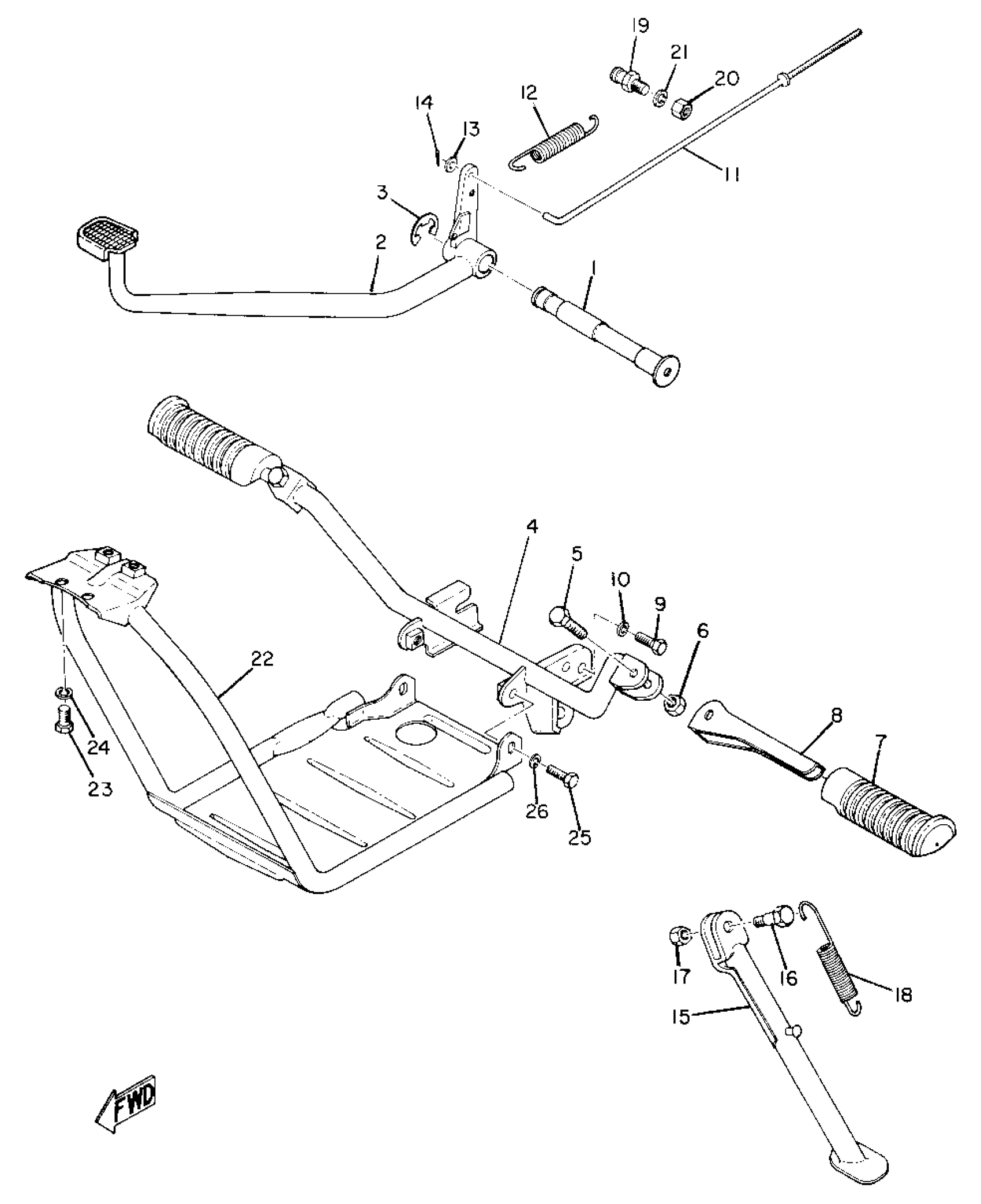

Yamaha L5T (L5T_L5TA) 1969 STAND, FOOT REST & REAR BRAKE PEDAL Diagram

#

Description
Price

1

SHAFT, MAIN STAND

(122-27112-00-00)

Unavailable

2

PEDAL, BRAKE

(205-27211-00-93)

Unavailable

3

CIRCLIP (122)

93430-12008-00

$8.49

4

FOOTREST 1

(167-27411-02-00)

Unavailable

5

BOLT (157-27416-00)

90109-08376-00

Unavailable

6

. NUT

95380-08700-00

Unavailable

7

COVER, FOOT REST

156-27413-00-00

$39.99

8

FOOTREST 1

(157-27411-00-00)

Unavailable

9

BOLT, HEXAGON

97013-08020-00

$1.16

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

ROD, BRAKE

180-27231-01-00

Unavailable

12

SPRING (109-27216-00)

90506-20041-00

$7.49

13

. WASHER, PLAIN

92990-05200-00

Unavailable

14

PIN, COTTER

91490-20025-00

$1.99

15

STAND, SIDE

(234-27311-00-00)

Unavailable

16

BOLT 122273170100

90109-08032-00

Unavailable

17

. NUT

95380-08700-00

Unavailable

18

SPRING TENSION 146273160000

90506-29052-00

Unavailable

19

BOLT

(90109-08372-00)

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

22

PROTECTOR, ENGINE

(212-21471-00-33)

Unavailable

23

BOLT(JA9)

90101-08691-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

25

BOLT, HEXAGON

97013-08016-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60
