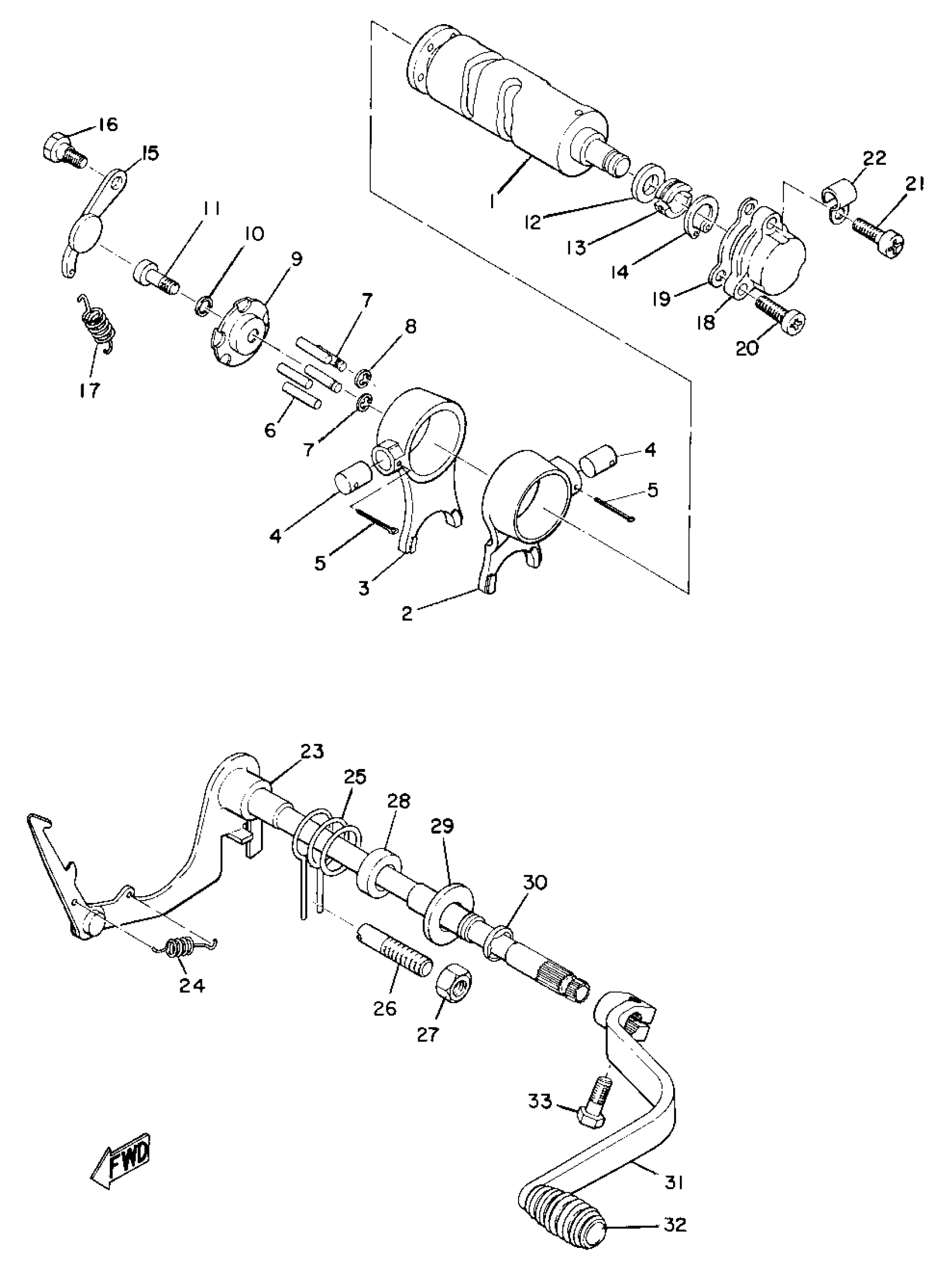

Yamaha L5T (L5T_L5TA) 1969 SHIFTER Diagram
#
1
SHIFTER ASSEMBLY
(234-18500-00-00)
Unavailable
1
CAM, SHIFT
(234-18541-00-00)
Unavailable
2
FORK, SHIFT 1
(234-18511-00-00)
Unavailable
3
FORK, SHIFT 2
(234-18512-00-00)
Unavailable
4
PIN, STRAIGHT
(90250-10020-00)
Unavailable
7
. PIN, SPEC''L SHAPE (174-18544-00)
90249-04039-00
Unavailable
8
. CIRCLIP, E-TYPE
93430-03014-00
Unavailable
13
HOLDER, SHIFT CAM
307-18571-00-00
Unavailable
15
STOPPER LEVER ASSY
132-18140-01-00
Unavailable
16
BOLT
90109-06239-00
Unavailable
17
SPRING, TENSION (260)
90506-09112-00
Unavailable
18
PLUG, BLIND SHIFT CAM
164-18589-00-00
Unavailable
19
GASKET, PLUG BLIND
4EG-18579-00-00
Unavailable
20
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
21
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
22
CLAMP
(90462-05012-00)
Unavailable
23
SHIFT SHAFT ASSEMBLY.1
(164-18101-02-00)
Unavailable
24
SPRING TENSION 132181230000
90506-09009-00
Unavailable
25
SPRING TORSION 132181240000
90508-32207-00
Unavailable
26
SCREW, ADJUSTING (367)
90149-08094-00
Unavailable
27
. NUT
95380-08700-00
Unavailable
28
SEAL, OIL (30X)
93102-12321-00
Unavailable
29
WASHER, PLATE (353)
90201-12575-00
Unavailable
30
. CIRCLIP
99001-12600-00
Unavailable
31
PEDAL, SHIFT
(167-18111-01-93)
Unavailable
32
COVER, CHANGE PEDAL
132-18113-01-00
Unavailable
33
BOLT, HEXAGON
97017-06020-00
Unavailable
