Description

Price

1

SINGLE SEAT ASSEMBLY

(225-24710-00-00)

Unavailable

1

COVER, SINGLE SEAT

(225-24711-00-00)

Unavailable

1

SINGLE SEAT ASSEMBLY

(254-24710-03-00)

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

CARRIER ASSEMBLY

(164-24810-00-35)

Unavailable

6

BOLT(JA9)

90101-08691-00

$4.29

7

NUT(6L2)

95333-08600-00

$2.49

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

CARRIER ASSEMBLY

(162-24840-00-00)

Unavailable

10

CLAMP, CARRIER

(162-24815-00-00)

Unavailable

11

CLAMP, CARRIER

(162-24815-00-00)

Unavailable

12

SCREW, FLAT HEAD

(92703-08030-00)

Unavailable

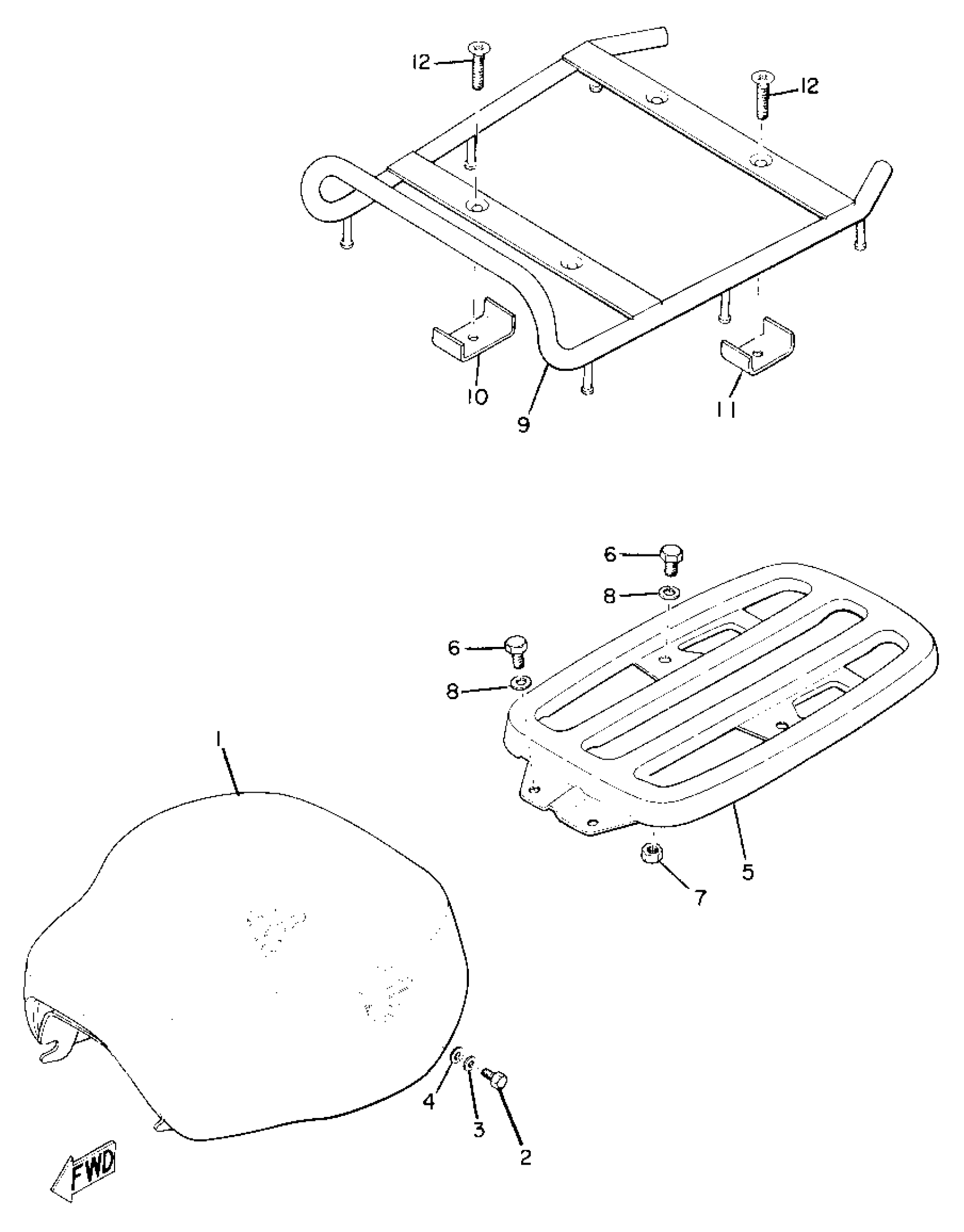

Yamaha L5T (L5T_L5TA) 1969 SEAT & CARRIER Diagram

SINGLE SEAT ASSEMBLY

COVER, SINGLE SEAT

SINGLE SEAT ASSEMBLY

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE

CARRIER ASSEMBLY

BOLT(JA9)

NUT(6L2)

YBS67-8 WASHER, SPRING

CARRIER ASSEMBLY

CLAMP, CARRIER

CLAMP, CARRIER

SCREW, FLAT HEAD
