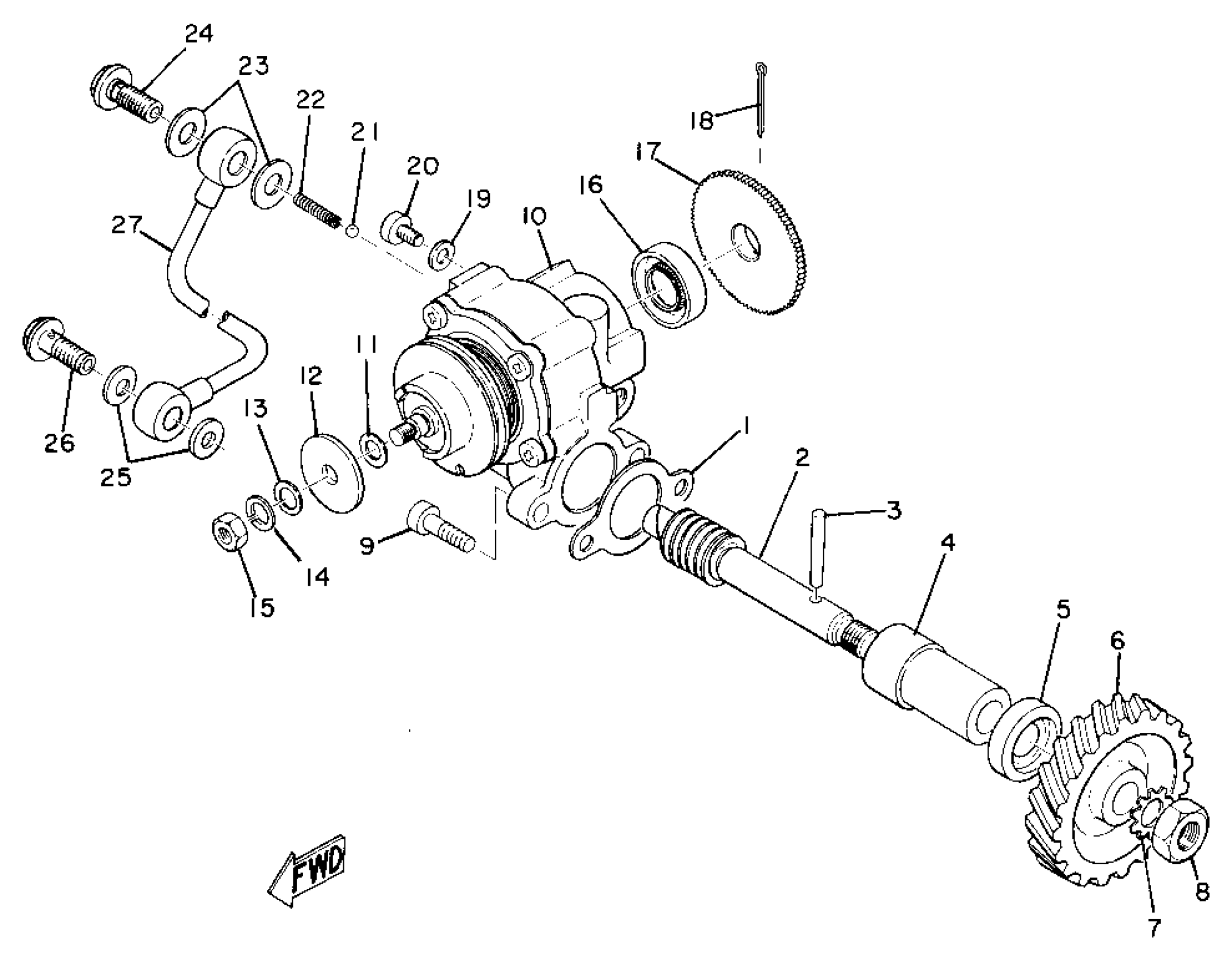

Yamaha L5T (L5T_L5TA) 1969 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

(164-13101-04-00)

Unavailable

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

2

SHAFT, WORM

(131-13175-00-00)

Unavailable

3

PIN,DOWEL (137)

93603-22028-00

$3.76

4

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

5

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

6

GEAR, PUMP DRIVE

(180-13178-00-00)

Unavailable

7

WASHER (688)

92990-08400-00

Unavailable

8

. NUT

95380-08700-00

Unavailable

9

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-10

$7.99

12

PLATE, ADJUSTING

137-13138-01-00

Unavailable

13

SHIM,PLUNGER

137-13137-00-10

$7.99

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

NUT, HEXAGON (663)

95380-05600-00

$8.49

16

OIL SEAL (J10)

93101-10090-00

Unavailable

17

PLATE, STARTER

(137-13128-00-00)

Unavailable

18

. PIN, COTTER

91401-12018-00

Unavailable

19

GASKET 137131870000

90430-04004-00

Unavailable

20

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

20

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

21

BALL

93505-32002-00

Unavailable

22

SPRING, COMPRESSION

(90501-02017-00)

Unavailable

23

GASKET(3FP)

90430-06224-00

Unavailable

24

BOLT UNION 137131650000

90401-06001-00

Unavailable

25

GASKET(3FP)

90430-06224-00

Unavailable

26

BOLT UNION 137131650000

90401-06001-00

Unavailable

27

PIPE, DELIVERY 1

(164-13161-00-00)

Unavailable
