HANDLE & WIRE

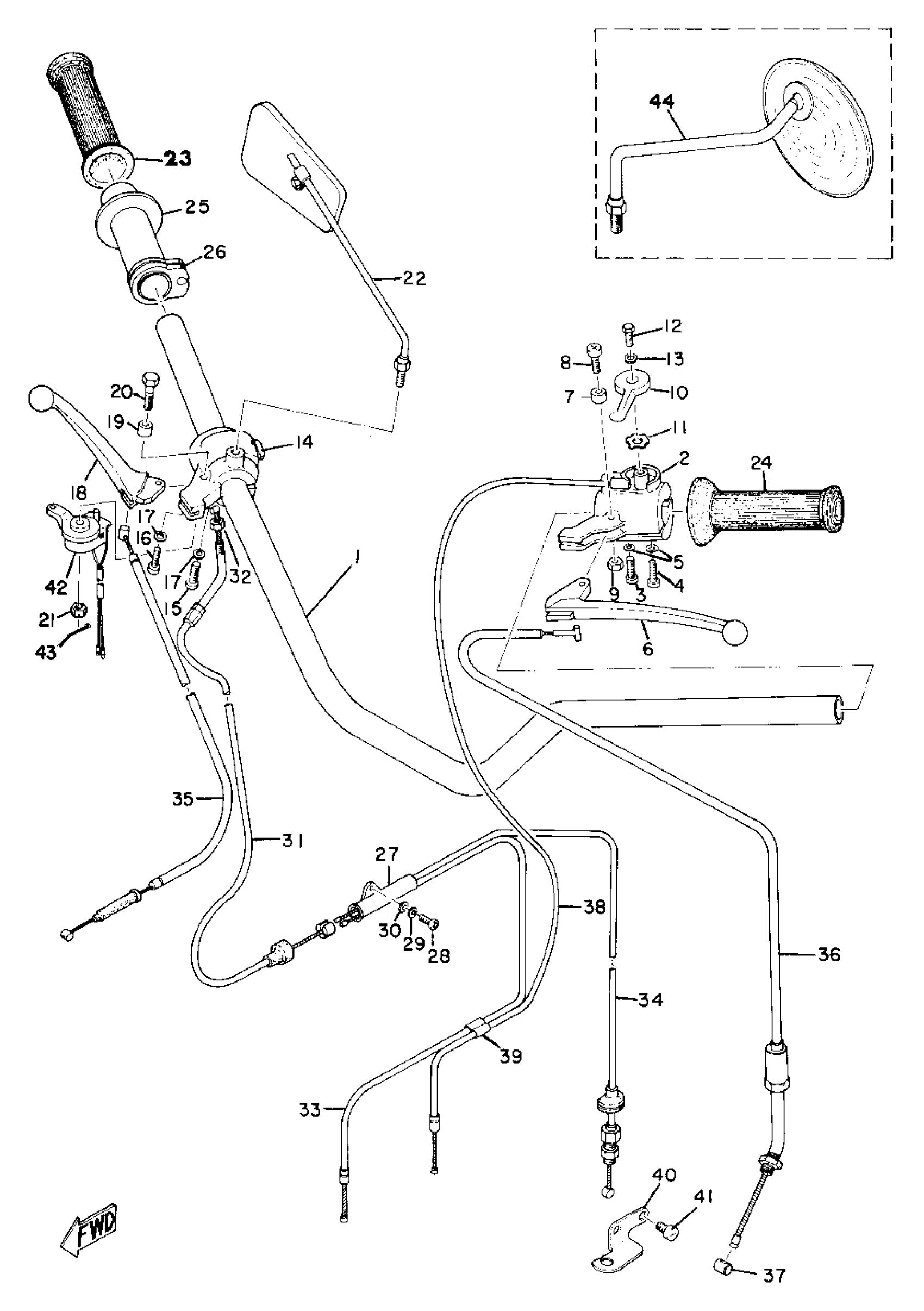

Yamaha L5T (L5T_L5TA) 1969 HANDLE & WIRE Diagram
#
1
HANDLEBAR
(212-26111-00-00)
Unavailable
2
LEVER HOLDER ASSEMBLY 1
137-82710-11-00
Unavailable
3
SCREW, PAN HEAD
98580-05020-00
Unavailable
4
SCREW, PAN HEAD
98580-05020-00
Unavailable
6
LEVER (L.H)
137-83912-02-38
Unavailable
7
. COLLAR, LEVER 1
137-83913-01-00
Unavailable
10
LEVER, STARTER
137-83941-02-00
Unavailable
14
LEVER HOLDER ASSEMBLY 2
234-82920-31-94
Unavailable
15
SCREW, PAN HEAD
98580-05020-00
Unavailable
16
SCREW, PAN HEAD
98580-05020-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
LEVER (R.H)
2N3-83922-00-00
Unavailable
19
. COLLAR, LEVER 1
137-83913-01-00
Unavailable
20
SCREW, PAN HEAD
98580-05545-00
Unavailable
21
NUT, SLTED
95307-05900-00
Unavailable
22
MIRROR ASSEMBLY RH
266-26290-00-00
Unavailable
23
GRIP LH
341-26241-00-00
Unavailable
24
GRIP RH
(137-26242-60-00)
Unavailable
25
RING, LEAF
150-26249-00-00
Unavailable
26
TUBE, GUIDE
1V1-26243-00-00
Unavailable
27
CONNECTOR, CABLE
137-26261-01-00
Unavailable
28
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
31
CABLE, THROTTLE 1
212-26311-02-00
Unavailable
32
NUT, HEXAGON
90170-10038-00
Unavailable
33
CABLE, THROTTLE 2
(137-26312-00-00)
Unavailable
34
PUMP CABLE ASSEMBLY
(225-26320-00-00)
Unavailable
35
CABLE, BRAKE
(215-26341-00-00)
Unavailable
36
CABLE, CLUTCH
225-26335-00-00
Unavailable
37
END, WIRE
164-26363-00-00
Unavailable
38
CABLE, STARTER 1
164-26331-10-00
Unavailable
39
CLIP, WIRE 2072639100
90468-15009-00
Unavailable
40
HOLDER, ADJUSTING
(180-26381-00-00)
Unavailable
41
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
42
FRONT STOP SWITCH ASSY
232-83980-30-00
Unavailable
43
. PIN, COTTER
91401-12018-00
Unavailable
44
3MIRROR ASSEMBLY LH
266-26290-10-00
Unavailable
