1969 Yamaha L5T_L5TA (L5T) Generator Diagram

← All diagrams

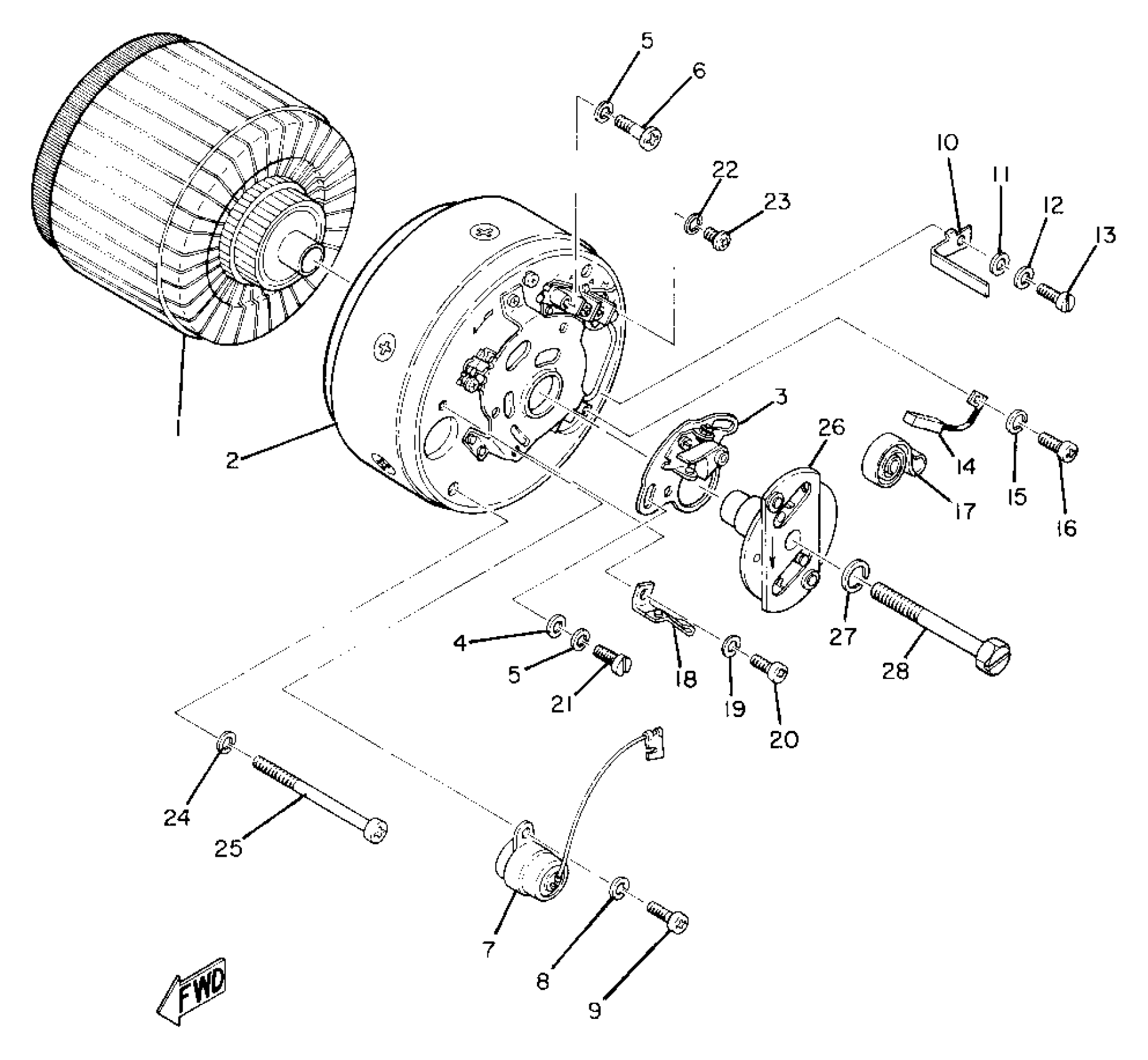

Find the part on the Generator diagram for your 1969 Yamaha L5T_L5TA (L5T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha L5T_L5TA (L5T) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER GEN ASSEMBLY

(165-81100-22-00)

1
Out of stock

1

ARMATURE

(165-81155-21-00)

1
Out of stock

2

STATOR ASSEMBLY

(165-81110-22-00)

1
Out of stock

3

.. CONTACT BRKR ASSEMBLY

165-81121-21-00

1
Out of stock

4

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

7

CONDENSER 2

(165-81126-21-00)

1
Out of stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

9

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

10

PLATE, TIMING

(165-81132-20-00)

1
Out of stock

11

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

14

.. BRUSH

165-81111-20-00

1
Out of stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

16

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

17

SPRING, BRUSH

(165-81113-20-00)

1
Out of stock

18

LUBRICATOR

(131-81231-20-00)

1
Out of stock

19

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

20

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

21

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

23

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

24

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

25

SCREW, STATOR

(165-81135-21-00)

1
Out of stock

26

. GOVERNOR ASSEMBLY

165-81153-21-00

1
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

BOLT

(165-81152-20-00)

1
Out of stock
