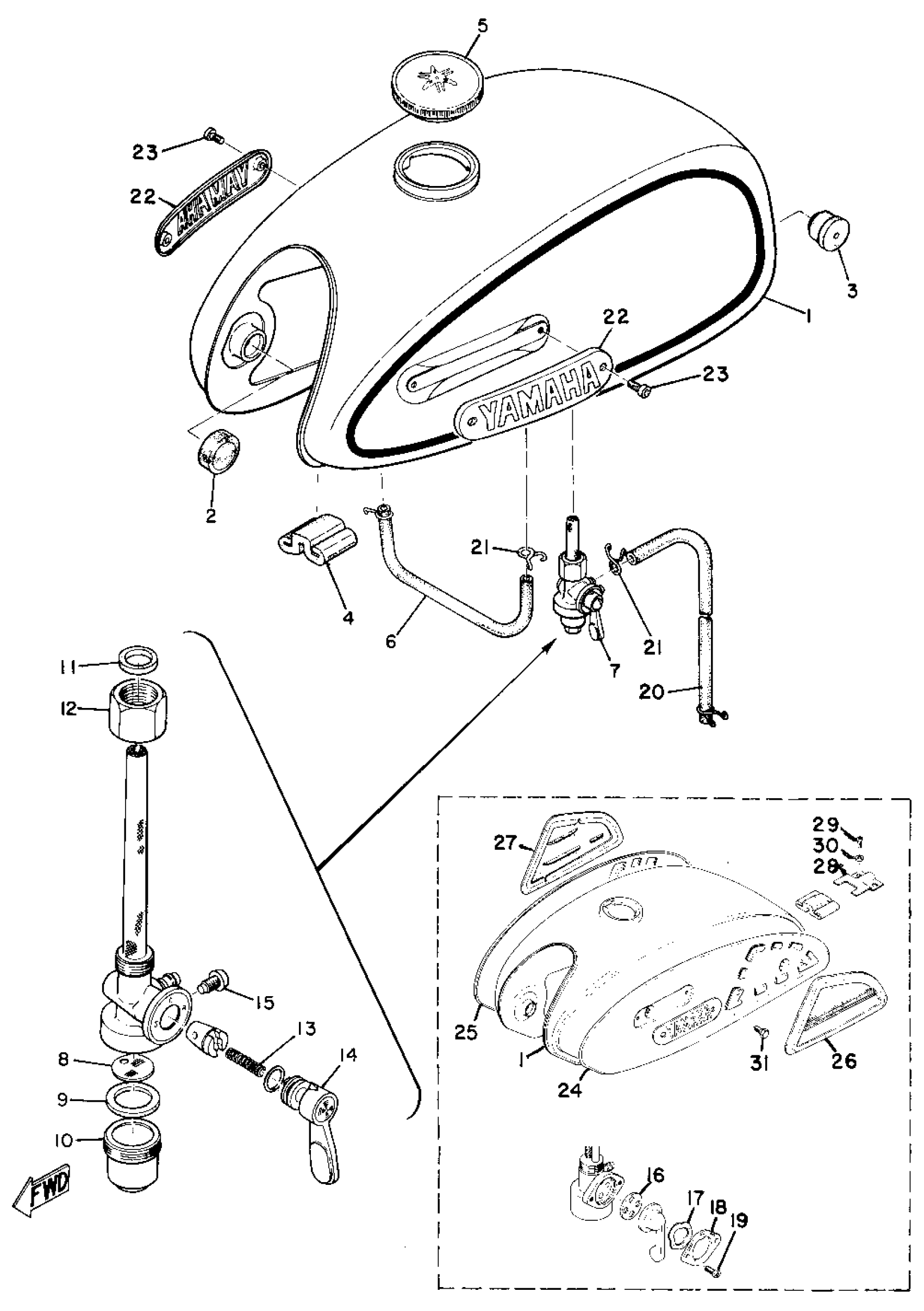

Yamaha L5T (L5T_L5TA) 1969 FUEL TANK Diagram

#

Description

Price

1

PIPE, OIL

(156-21766-00-00)

Unavailable

1

FUEL TANK

(220-24110-01-02)

Unavailable

1

FUEL TANK

(220-24110-01-X3)

Unavailable

1

FUEL TANK

(254-24110-00-63)

Unavailable

2

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

3

DAMPER, LOCATING 2

122-24182-01-00

Unavailable

4

DAMPER, LOCATING 3

(129-24183-00-00)

Unavailable

4

DAMPER, LOCATING 3

(164-24183-00-00)

Unavailable

5

CAP ASSY

122-24610-01-00

$22.99

6

HOSE (L420)

90445-092K1-00

$12.49

7

FUEL COCK ASSEMBLY 1

132-24500-02-00

Unavailable

7

FUEL COCK ASSY

367-24500-04-00

Unavailable

8

. NET, FILTER 2

122-24515-00-00

Unavailable

8

. NET, FILTER 2

304-24515-00-00

Unavailable

9

GASKET

102-24522-02-00

$5.49

9

GASKET, FILTER

498-24522-00-00

Unavailable

10

. CUP, FILTER

122-24521-00-00

Unavailable

10

. CUP, FILTER

1A0-24521-01-00

Unavailable

11

GASKET, NUT

122-24532-00-00

Unavailable

11

GASKET, FUEL COCK

434-24532-00-00

Unavailable

12

. NUT

122-24531-00-00

Unavailable

12

. NUT

132-24531-00-00

Unavailable

13

SPRING, COMPRESSION

(90501-07029-00)

Unavailable

14

. LEVER, COCK

122-24524-00-00

Unavailable

14

. LEVER, COCK

168-24524-00-00

Unavailable

15

SCREW, LVR FITTING

(127-24535-00-00)

Unavailable

16

VALVE

137-24523-00-00

Unavailable

17

WASHER, WAVE

132-24518-00-00

Unavailable

18

PLATE, LEVER FITTING

(132-24525-01-00)

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

PIPE, FUEL 1

(164-24311-00-00)

Unavailable

21

CLIP 101235600

90467-08003-00

Unavailable

22

EMBLEM 1

(129-24161-00-00)

Unavailable

22

EMBLEM 1

132-24161-00-00

Unavailable

23

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

24

COVER, SIDE 1

(254-24129-00-00)

Unavailable

25

COVER, SIDE 2

(254-24139-00-00)

Unavailable

26

GRIP, KNEE 1

(254-24171-00-00)

Unavailable

27

GRIP, KNEE 2

(254-24172-00-00)

Unavailable

28

STAY, FUEL TANK 1

(164-24115-00-00)

Unavailable

29

SCREW, PAN

98507-06100-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

BOLT,HEXAGON

97017-06008-00

Unavailable
