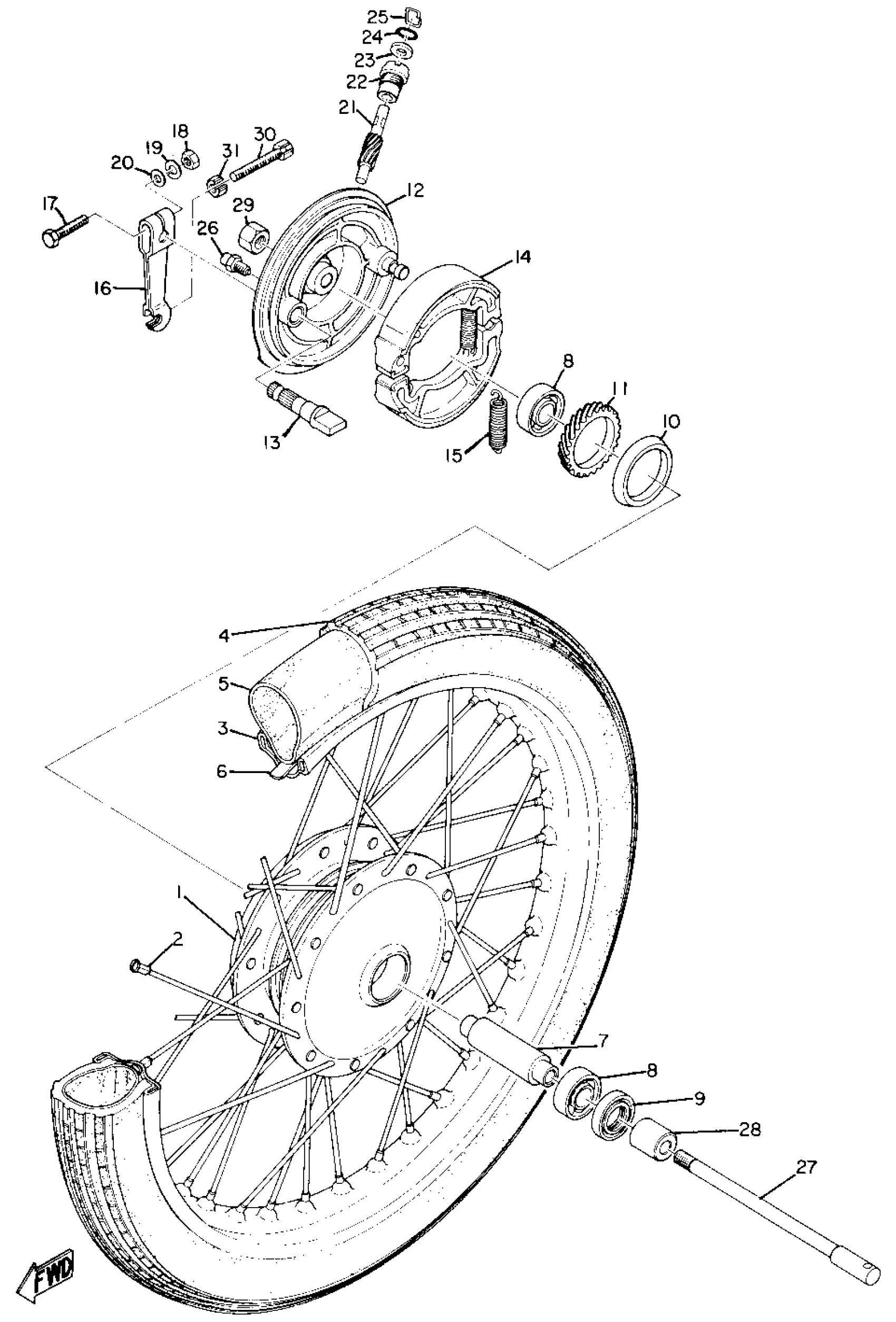

Yamaha L5T (L5T_L5TA) 1969 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(102-25111-01-38)

Unavailable

2

SPOKE SET, FRONT

(122-25104-00-00)

Unavailable

3

RIM 1.40X17

(94414-17003-00)

Unavailable

4

275X17 NITTO

(94127-17077-00)

Unavailable

5

TUBE (1E2)

94227-17106-00

$21.99

6

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

$9.49

7

SPACER, BEARING

(102-25117-00-00)

Unavailable

8

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

9

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

10

OIL SEAL, OS-TYPE

93107-42001-00

Unavailable

11

GEAR, DRIVE

(102-25135-01-00)

Unavailable

12

PLATE, BRAKE SHOE

122-25121-02-38

Unavailable

13

CAM SHAFT

122-25351-02-00

Unavailable

14

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

15

SPRING, TENSION (566).

90506-16150-00

$9.49

16

LEVER, CAMSHAFT 1

109-25155-00-00

Unavailable

17

BOLT, HEXAGON

97017-06030-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

GEAR, METER

(122-25138-00-00)

Unavailable

22

BUSHING

109-25136-00-00

Unavailable

23

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

24

O-RING (26H)

93210-14579-00

Unavailable

25

RING, STOP

102-25137-00-00

Unavailable

26

NIPPLE, GREASE

93700-06M03-00

Unavailable

27

AXLE, WHEEL

99999-02188-00

Unavailable

28

COLLAR

90387-10079-00

Unavailable

29

NUT(3BM)

95314-10600-00

Unavailable

30

BOLT (109-26345-00)

90123-06011-00

Unavailable

31

NUT (109-26344-00)

90179-06143-00

Unavailable
