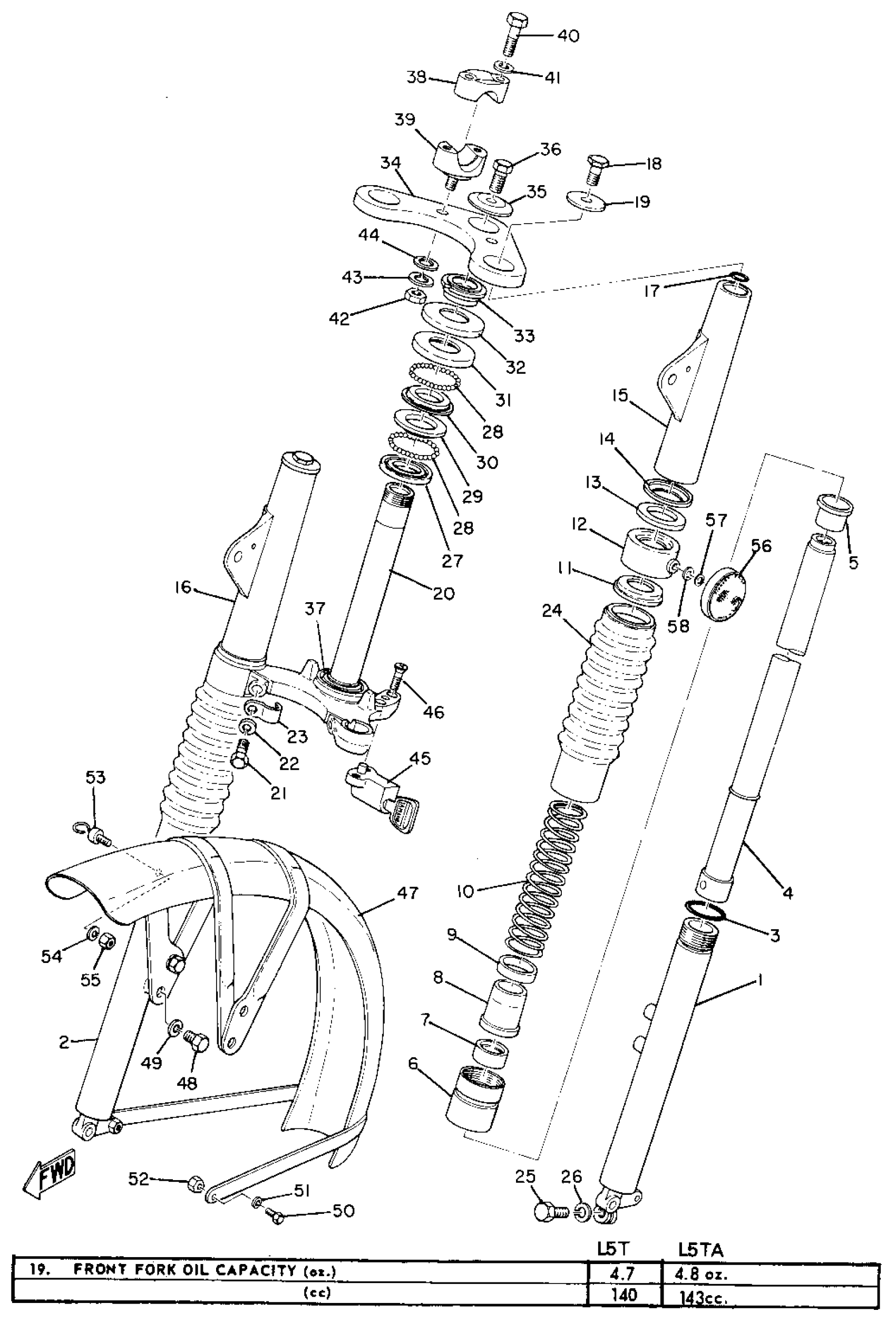

Yamaha L5T (L5T_L5TA) 1969 FRONT FORK Diagram

#

Description

Price

1

TUBE, OUTER 1

(215-23126-40-00)

Unavailable

1

FRONT FORK ASSEMBLY

(234-23100-60-46)

Unavailable

1

FRONT FORK ASSEMBLY

(234-23100-60-61)

Unavailable

1

FRONT FORK ASSEMBLY

(234-23100-60-63)

Unavailable

2

TUBE, OUTER 2

(215-23136-40-00)

Unavailable

3

. O-RING

122-23147-00-00

Unavailable

4

TUBE, INNER 1

(206-23124-00-00)

Unavailable

5

METAL, SLIDE 1

(357-23125-90-00)

Unavailable

6

OUTER NUT

(196-23150-41-00)

Unavailable

7

OIL SEAL (5R6)

93110-27010-00

Unavailable

8

SEAT, SPRING LOWER

(122-23143-00-00)

Unavailable

9

SPACER

(206-23118-00-00)

Unavailable

10

SPRING, FRONT FORK

(215-23141-40-00)

Unavailable

11

SEAT, SPRING UPPER

(215-23142-41-00)

Unavailable

12

COVER, OUTER 1

(232-23122-60-00)

Unavailable

12

COVER, OUTER 2

(232-23132-60-00)

Unavailable

13

GASKET

(183-23163-00-00)

Unavailable

14

GUIDE, COVER LOWER

(196-23116-40-00)

Unavailable

15

COVER, UPPER 1

(206-23121-60-33)

Unavailable

15

COVER, UPPER 1

(206-23121-60-33)

Unavailable

15

COVER, UPPER 1

(206-23121-60-33)

Unavailable

15

COVER, UPPER 1

(206-23121-60-33)

Unavailable

16

COVER, UPPER 2

(206-23131-60-46)

Unavailable

16

COVER, UPPER 2

(206-23131-60-63)

Unavailable

16

COVER, UPPER 2

(206-23131-60-63)

Unavailable

17

GASKET

307-23114-00-00

Unavailable

18

BOLT, CAP

205-23111-40-00

Unavailable

19

WASHER, CAP

207-23112-00-00

Unavailable

20

UNDER BRACKET

(206-23340-00-33)

Unavailable

21

BOLT 1

122-23346-02-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

23

HOLDER, CABLE 1

(183-23318-00-00)

Unavailable

24

. BOOT, FRONT FORK

196-23191-40-00

Unavailable

25

BOLT, HEXAGON

97017-08025-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

27

RACE, BALL 2

B6E-23412-00-00

Unavailable

28

BALL

93501-04011-00

Unavailable

29

RACE, BALL 1

B6E-23411-00-00

Unavailable

30

RACE, BALL 1

4FP-F3411-20-00

Unavailable

31

RACE,BALL 2

4FP-F3412-10-00

Unavailable

32

COVER, BALL RACE

136-23415-00-00

Unavailable

33

NUT (122-23453-00)

90179-25051-00

Unavailable

34

CROWN, HANDLE

(207-23435-00-35)

Unavailable

35

WASHER (1YJ)

90209-10160-00

Unavailable

36

BOLT 1222345100

90105-10006-00

Unavailable

37

SEAL, DUST

164-23462-00-00

Unavailable

38

HOLDER, HANDLE UPPER

462-23441-01-00

Unavailable

39

HOLDER, HANDLE UNDER

462-23442-00-98

Unavailable

40

BOLT(3RV)

97014-06035-00

Unavailable

41

WASHER, SPRING

92995-06100-00

Unavailable

42

NUT(3BM)

95314-10600-00

Unavailable

43

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

44

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

45

STEERING LOCK ASSEMBLY

(137-23480-00-00)

Unavailable

46

SCREW, FLAT HEAD

98780-06016-00

Unavailable

47

FENDER, FRONT

(124-21510-00-35)

Unavailable

48

BOLT(62E)

97013-08012-00

Unavailable

49

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

50

BOLT, HEXAGON

97017-06020-00

Unavailable

51

WASHER, SPRING

92995-06100-00

Unavailable

52

NUT, HEXAGON

95380-06600-00

Unavailable

53

HOLDER, CABLE

(174-21518-00-00)

Unavailable

54

WASHER, SPRING

92995-06100-00

Unavailable

55

NUT, HEXAGON

95380-06600-00

Unavailable

56

REFLECTOR, FRONT 1

(233-85111-00-00)

Unavailable

57

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

58

. WASHER, PLAIN

92990-05200-00

Unavailable
