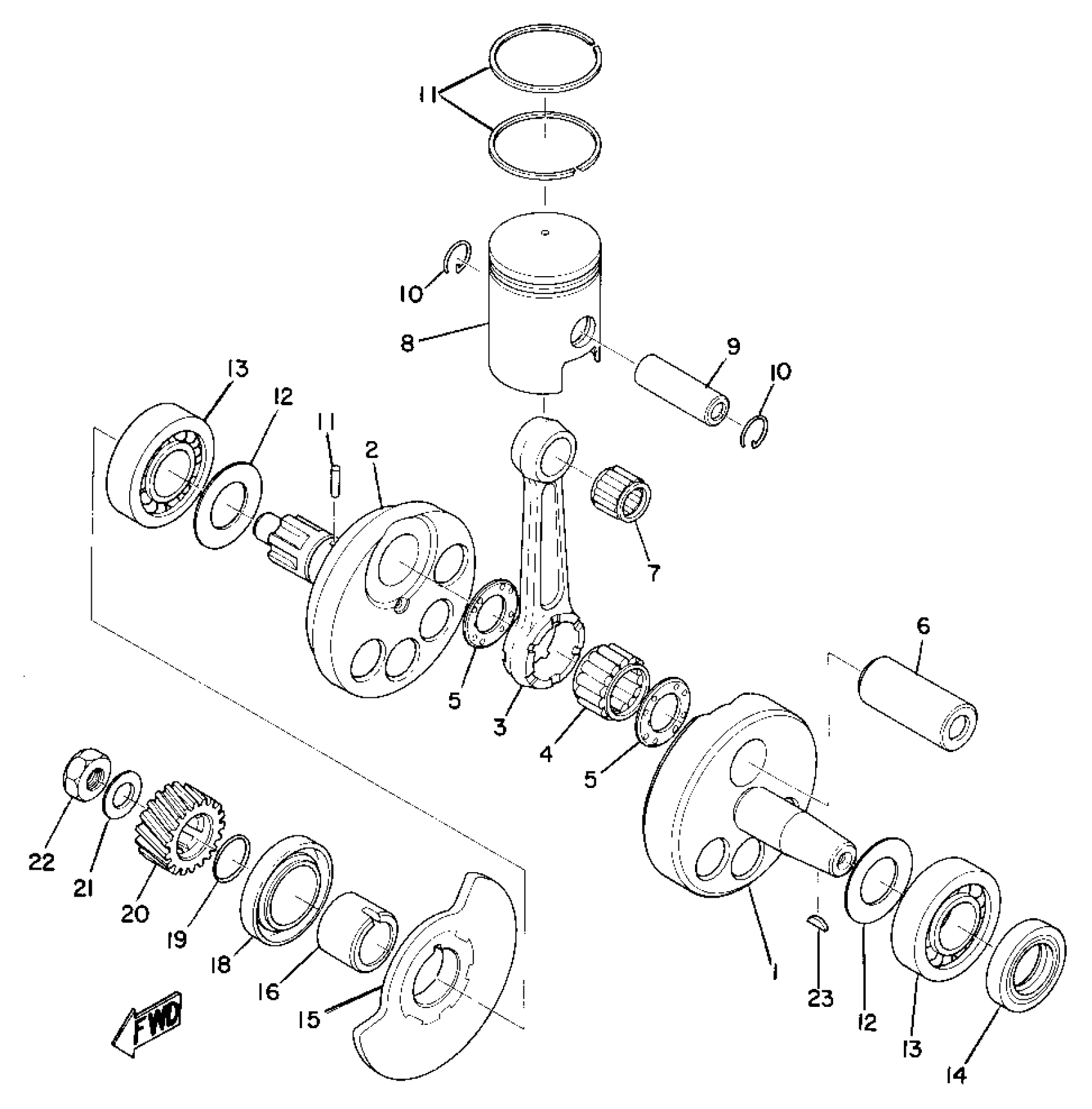

Yamaha L5T (L5T_L5TA) 1969 CRANK SHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(255-11400-00-00)

Unavailable

1

CRANK 1

(255-11412-00-00)

Unavailable

2

CRANK 2

(164-11422-00-00)

Unavailable

3

ROD, CONNECTING

164-11651-00-00

Unavailable

4

BRG,CYL-CAL ROLLER 14G TM

93310-42237-00

Unavailable

5

WASHER (29L)

90209-22248-00

Unavailable

6

PIN, CRANK

5E2-11681-00-00

$32.99

7

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

$31.99

8

PISTON STD

166-11631-01-96

Unavailable

8

PISTON STD

166-11631-01-96

Unavailable

8

UNAVAILABLE IN PRICE BOOK

166-11635-00-00

Unavailable

8

PISTON 1 O/S 0.25

166-11635-01-00

Unavailable

8

UNAVAILABLE IN PRICE BOOK

166-11636-00-00

Unavailable

8

PISTON 2 O/S 0.50

166-11636-01-00

Unavailable

8

PISTON 3 O/S 0.75

(166-11637-01-00)

Unavailable

8

PISTON 3 O/S 0.75

(166-11637-01-00)

Unavailable

8

PISTON 4 O/S 1.00

(166-11638-01-00)

Unavailable

8

PISTON 4 O/S 1.00

(166-11638-01-00)

Unavailable

9

PIN, PISTON

131-11633-00-00

Unavailable

10

CIRCLIP 131116340000

93450-15023-00

Unavailable

11

PISTON RINGSET STD

166-11601-09-00

Unavailable

11

PISTON RINGSET 1ST

166-11601-19-00

Unavailable

11

PISTON RINGSET 2ND

(166-11601-29-00)

Unavailable

11

PISTON RINGSET 3RD

(166-11601-30-00)

Unavailable

11

PISTON RINGSET 4TH

(166-11601-40-00)

Unavailable

11

PISTON RINGSET STD

305-11601-00-00

Unavailable

11

PISTON RING SET (3RD O/S)

335-11601-30-00

Unavailable

11

PISTON RING SET (1STO/S)

335-11601-10-00

Unavailable

11

PISTON RING SET (2NDO/S)

335-11601-20-00

Unavailable

11

PISTON RINGSET 4TH

(335-11601-40-00)

Unavailable

12

SHIM, CRANK 1

136-11561-00-04

Unavailable

13

OIL SEAL(4BA)

93102-20447-00

Unavailable

13

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

15

NO LONGER AVAILABLE

164-13512-00-00

Unavailable

16

COLLAR, VALVE

(164-13515-00-00)

Unavailable

17

PIN,DOWEL (137)

93604-14012-00

Unavailable

18

OIL SEAL (28X47X8-137)

93103-28012-00

Unavailable

19

O-RING(3KX)

93210-180A6-00

Unavailable

20

GEAR, PRI DRIVE

(164-16111-00-00)

Unavailable

21

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

22

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

23

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable
