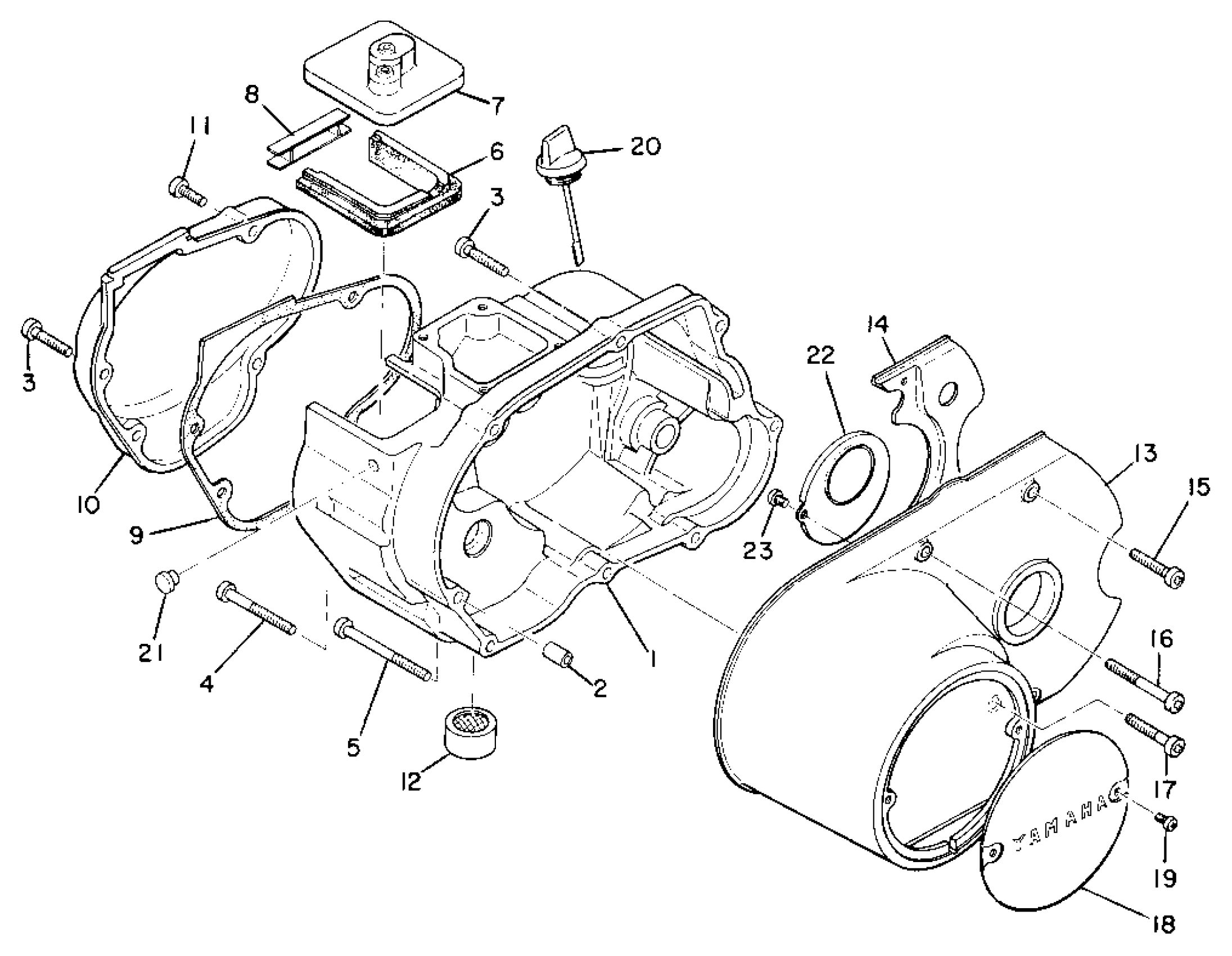

Yamaha L5T (L5T_L5TA) 1969 CRANK CASE COVER Diagram

#

Description
Price

1

CRCS COVER ASSEMBLY R

(205-15420-02-00)

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

4

SCREW PAN HEAD

98580-06565-00

Unavailable

5

SCREW PAN HEAD

98580-06550-00

$8.49

6

GUIDE, ELEMENT

(164-14458-00-00)

Unavailable

7

CAP, CARBURETOR

(201-14481-00-00)

Unavailable

8

HOLDER, GUIDE

(164-14459-00-00)

Unavailable

9

GASKET,CARB COVER

164-15453-09-00

Unavailable

10

COVER, CARBURETOR

(164-15413-00-00)

Unavailable

11

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

12

CLEANER, DRAIN

(117-15433-03-00)

Unavailable

13

CRCS COVER ASSEMBLY L

(234-15410-01-00)

Unavailable

14

COVER, CHAIN CASE

(164-15418-00-00)

Unavailable

14

UNAVAILABLE IN PRICE BOOK

164-15418-01-00

Unavailable

15

RIVET

(164-15448-00-00)

Unavailable

15

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

15

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

16

SCREW PAN HEAD

98580-06550-00

$8.49

17

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

18

COVER, GENERATOR (1)

164-15415-00-00

Unavailable

19

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

20

PLUG, OIL LEVEL

180-15362-00-00

Unavailable

21

GROMMET 122154860000

90480-12012-00

Unavailable

22

NO LONGER AVAILABLE

234-15419-00-00

Unavailable

23

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable
