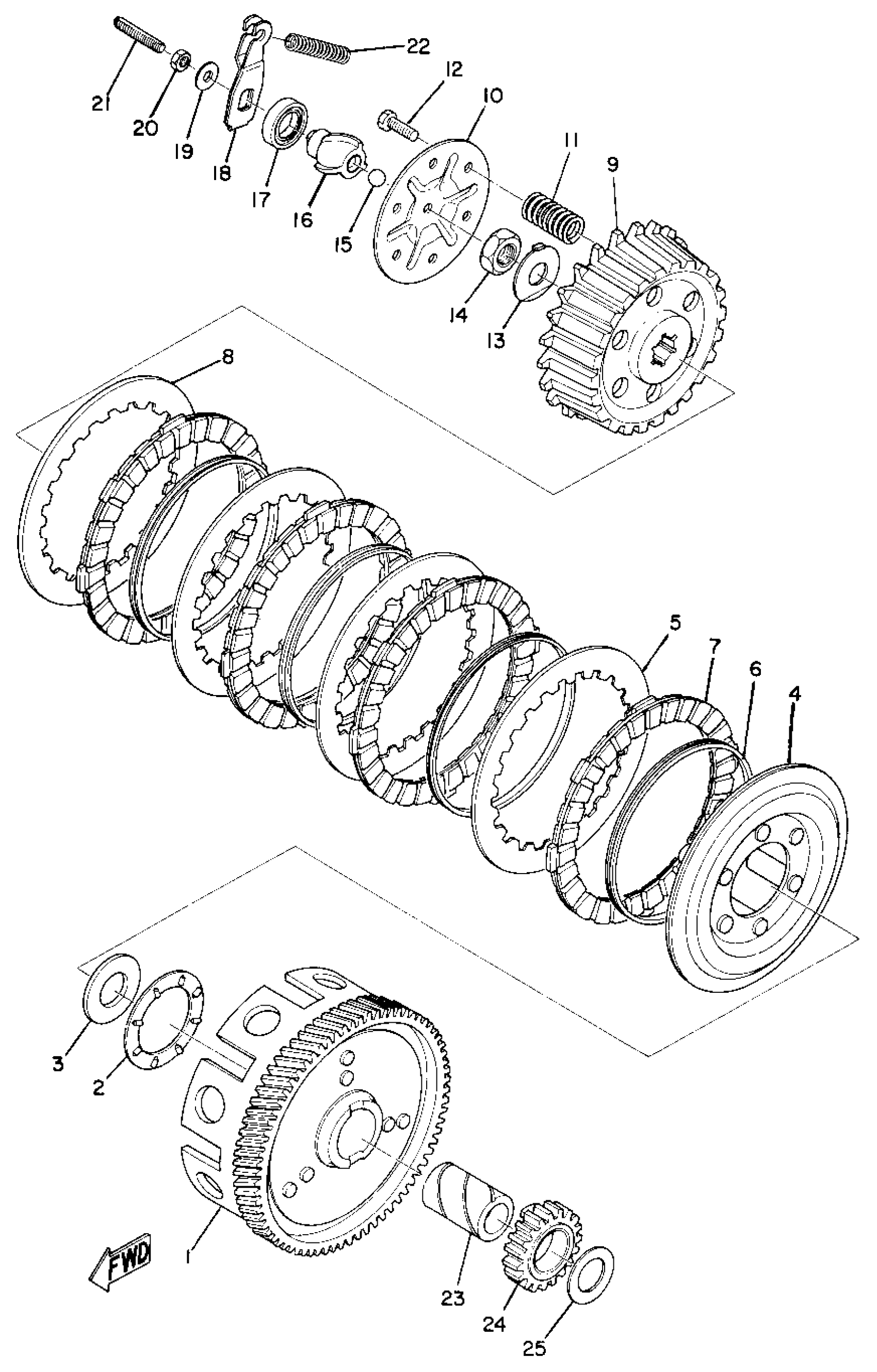

Yamaha L5T (L5T_L5TA) 1969 CLUTCH Diagram
#
Description
Price
1
PRI DRVN GEAR
(164-16105-02-00)
Unavailable
1
UNAVAILABLE IN PRICE BOOK
164-16801-02-00
Unavailable
1
PRI DRVN GEAR
(357-16150-01-00)
Unavailable
2
. BEARING, FLAT #41
93341-22302-00
Unavailable
3
PLATE, THRUST
131-16154-00-00
Unavailable
4
PLATE, PRESSURE 2
(131-16352-01-00)
Unavailable
8
PLATE, CLUTCH 3
(131-16326-00-00)
Unavailable
9
. UNAVAILABLE IN PRICE BOOK
164-16371-00-00
Unavailable
10
PLATE, PRESSURE 1
(122-16351-90-00)
Unavailable
11
SPRING COMPRESSION180163330000
90501-20126-00
Unavailable
12
SCREW, PAN HEAD
98580-05020-00
Unavailable
13
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
14
NUT, HEXAGON 1371637700
90170-12060-00
Unavailable
15
BALL
93501-04011-00
Unavailable
16
SCREW, PUSH
164-16341-01-00
Unavailable
17
OIL SEAL, SO-TYPE
93104-15009-00
Unavailable
18
LEVER, PUSH
(164-16342-01-00)
Unavailable
19
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
20
NUT(650)
95380-06700-00
Unavailable
21
BOLT, SET
(90113-06012-00)
Unavailable
22
SPRING, COMPRESSION
(90501-08040-00)
Unavailable
23
SPACER (517)
90560-17146-00
Unavailable
24
GEAR, KICK PINION
(254-15631-00-00)
Unavailable
25
PLATE, THRUST
122-16164-00-00
Unavailable
