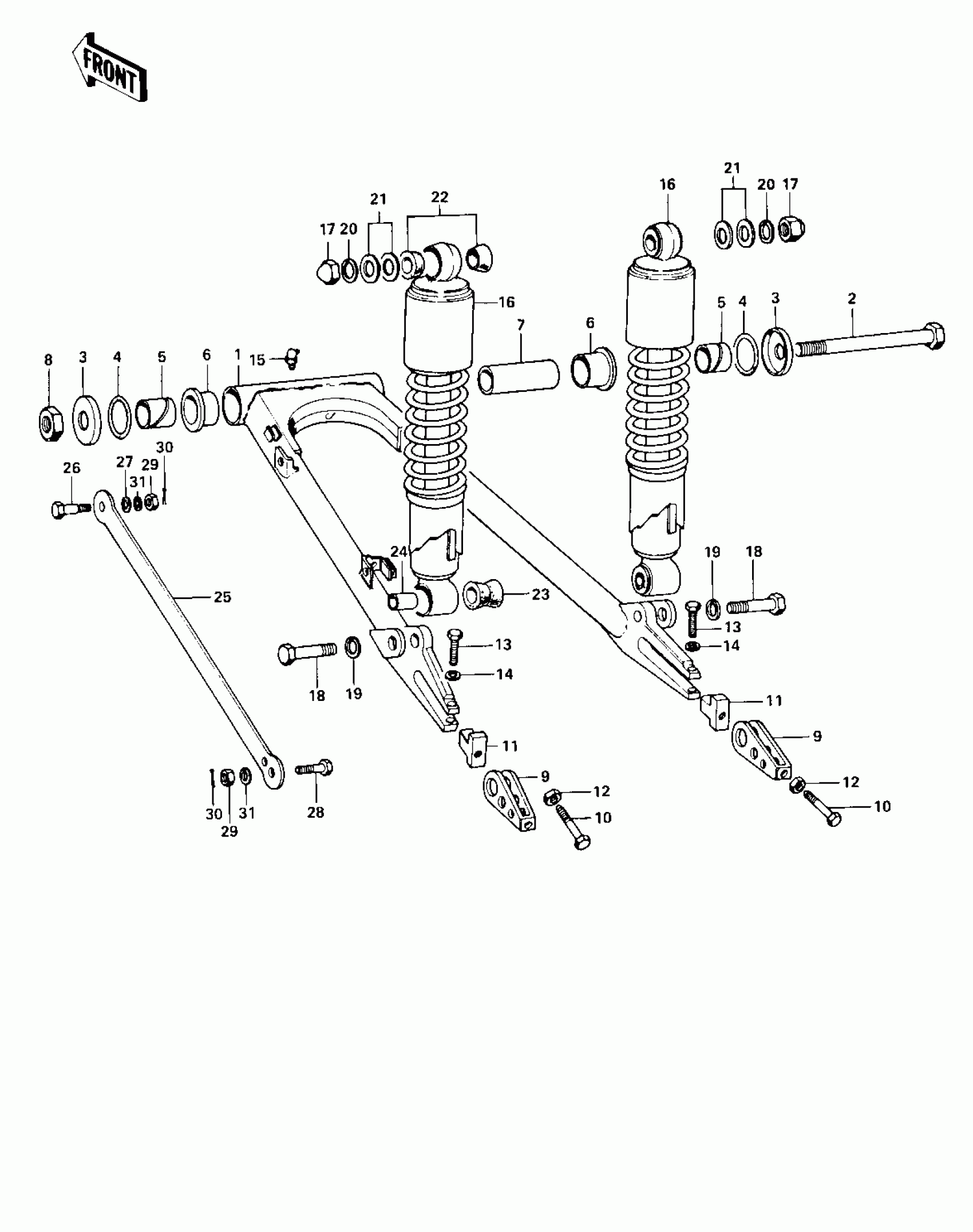

Kawasaki KZ900-A5 SWING ARM/SHOCK ABSORBERS Diagram
#
Description
Price
1
ARM,SWING
33001-046
Unavailable
2
SHAFT-SWING ARM
33032-036
Unavailable
3
CAP,SWING ARM
33035-007
Unavailable
4
"0" RING,30MM
671B2530
Unavailable
5
SLEEVE SWING ARM
33034-009
Unavailable
6
BUSHING-SWING ARM
33033-009
Unavailable
7
COLLAR,SWING ARM L=141.5MM
33036-005
Unavailable
8
NUT-SELF LOCKING
92019-012
Unavailable
9
ADJUSTER-CHAIN
33040-066
Unavailable
10
BOLT,10X50
92001-143
Unavailable
11
STOPPER,CHAIN ADJUSTER
33044-001
Unavailable
12
NUT-HEX-FINE,10MM
315B1000
Unavailable
13
BOLT
110G0840
Unavailable
14
WASHER SPRING 8MM
461F0800
Unavailable
15
GREASE NIPPLE
92005-002
Unavailable
16
SHOCK ABSBR RR
45014-107
Unavailable
17
NUT,CAP,12MM
92020-014
Unavailable
18
BOLT HEX HEAD 10X35
113N1035
Unavailable
19
WASHER SPRING 10MM
461F1000
Unavailable
20
WASHER-SPRING,12MM
461F1200
Unavailable
21
WASHER-PLAIN-SMALL,12MM
410B1200
Unavailable
22
BUSH SHCK ABS RUBBER
45017-001
Unavailable
23
BUSHING,SHCK ABSORBER
45017-011
Unavailable
24
COLLAR,SHOCKABSORBER
45016-003
Unavailable
25
TORQUE LINK,RR BRAKE
43007-032
Unavailable
26
BOLT TORQUE LINK FITT
92003-103
Unavailable
27
WASHER-PLAIN,10MM
411B1000
Unavailable
28
BOLT,TORQUE LINK
92003-147
Unavailable
29
NUT,10MM
313B1000
Unavailable
30
PIN COTTER
92041-005
Unavailable
31
WASHER SPRING 10MM
461F1000
Unavailable
