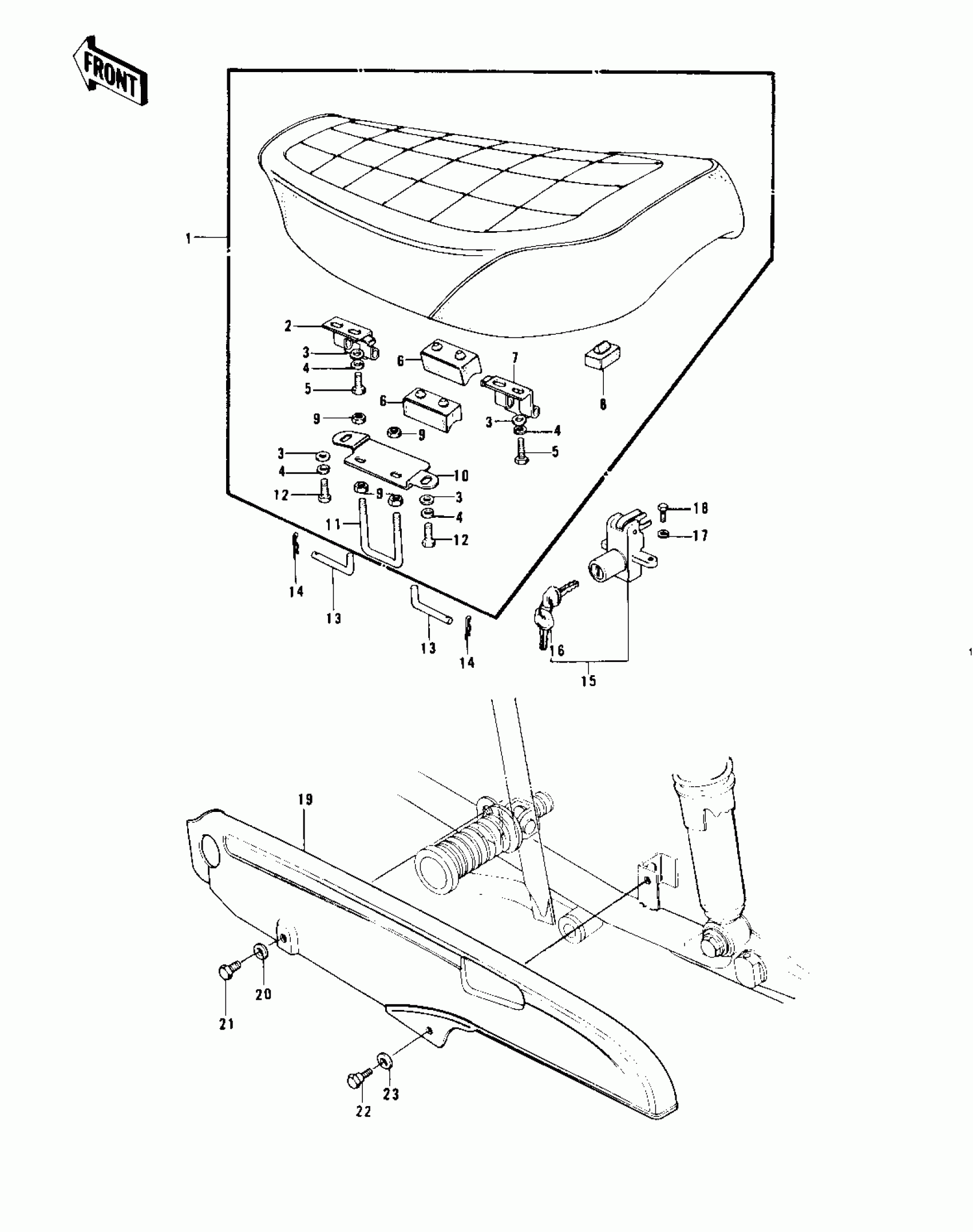

Kawasaki KZ900-A5 SEAT/CHAIN COVER Diagram
#
Description
Price
1
SEAT-ASSY,DUAL
53001-119
Unavailable
2
HINGE,REAR
53009-030
Unavailable
3
WASHER PLAIN 6MM
411B0600
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
BOLT HEX HEAD 6X16
110B0616
Unavailable
6
DAMPER RUBBER,SEAT
92075-139
Unavailable
7
HINGE,REAR
53009-032
Unavailable
8
DAMPER
92075-099
Unavailable
9
NUT 6MM
311B0600
Unavailable
10
BRACKET,SEAT CATCH
53058-003
Unavailable
11
HOOK,SEAT
53056-002
Unavailable
12
BOLT,6X14
110B0614
Unavailable
13
PIN,DUAL SEAT PIVOT
53011-008
Unavailable
14
COTTER PIN
92041-003
Unavailable
15
LOCK,SEAT
27030-005
Unavailable
17
WASHER SPRING 6MM
461F0600
Unavailable
18
BOLT, HEX HEAD, 6X12
110B0612
Unavailable
19
CASE-CHAIN
36014-061
Unavailable
20
WASHER,6.5X20X1.6
92022-125
Unavailable
21
BOLT HEX HEAD 6X18
110N0618
Unavailable
22
BOLT,HEAX HEAD,6X14
92001-115
Unavailable
23
WASHER,8.5X20X1.6
92022-195
Unavailable
