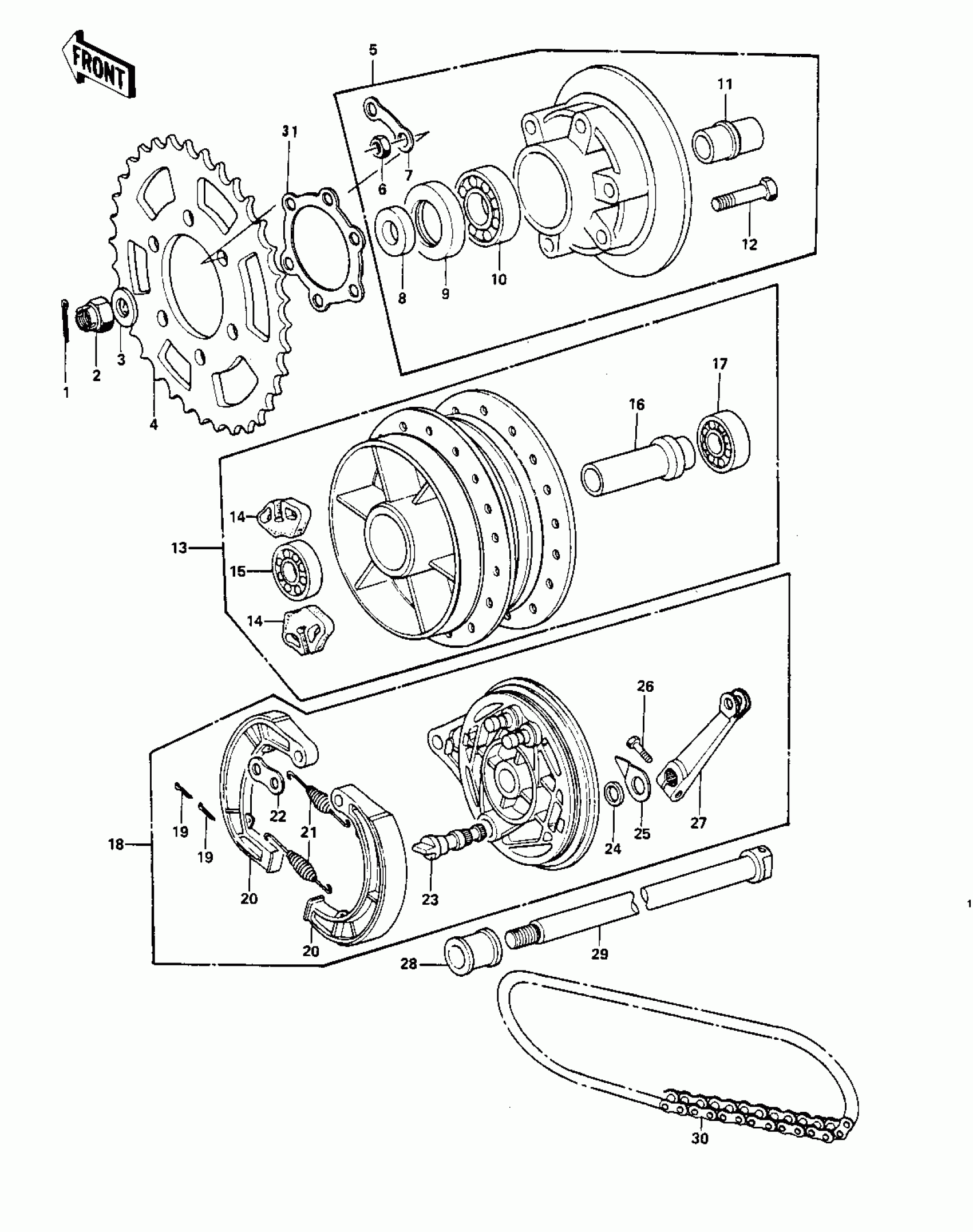

Kawasaki KZ900-A5 REAR HUB/BRAKE/CHAIN Diagram
#
Description
Price
1
PIN-COTTER,4.0X35
550D4035
Unavailable
2
NUT,CASTLE,18MM
42045-018
Unavailable
3
WASHER,20.3X34X4.5
92022-248
Unavailable
3
WASHER,PLAIN,20MM T-6.0
92022-249
Unavailable
4
REAR SPROCKET 35T
42041-118
Unavailable
5
COUPLING ASSY,RR HUB
42008-029
Unavailable
5
COUPLING ASSY,RR BRAK
42008-013
Unavailable
6
NUT,10MM
42045-005
Unavailable
7
WASHER-LOCK
92088-013
Unavailable
8
COLLAR,RR HUB COUPLNG
42037-023
Unavailable
9
SEAL-OIL,AJN40627
92050-027
Unavailable
10
BALL BEARING,#6206
601B6206
Unavailable
11
SLEEV,RR HUB CUPLING
42036-015
Unavailable
12
BOLT-REAR SPROCKET
92003-087
Unavailable
13
DRUM ASSY,REAR BRAKE
42005-030
Unavailable
14
SHOCK DAMPER
42014-021
Unavailable
15
BEARING BALL #6304
601B6304
Unavailable
16
SPACER-RR HUB BEARING
42010-021
Unavailable
17
BALL BEARING,#6304Z
601B6304Z
Unavailable
18
PANEL-ASY,RR BRK
42006-062
Unavailable
19
PIN-COTTER,3.0X25
550D3025
Unavailable
20
SHOE,BRAKE
41048-016
Unavailable
21
SPRING,BRAKE SHOE
41049-007
Unavailable
22
WASHER-BRAKE SHOE
41045-006
Unavailable
23
CAM-BRAKE
41050-017
Unavailable
24
SEAL,BRAKE CAM
41051-003
Unavailable
25
INDICATOR,BRAKE SHOE
41085-004
Unavailable
26
BOLT-SMALL-UPSET
115B0825
Unavailable
27
LEVER,REAR BRAKE CAM
42029-033
Unavailable
28
COLLAR,REAR AXLE
42032-037
Unavailable
29
AXLE,REAR
42031-034
Unavailable
30
DR CHAIN 630X92
92057-107
Unavailable
31
SPACER,REAR HUB
92026-108
Unavailable
