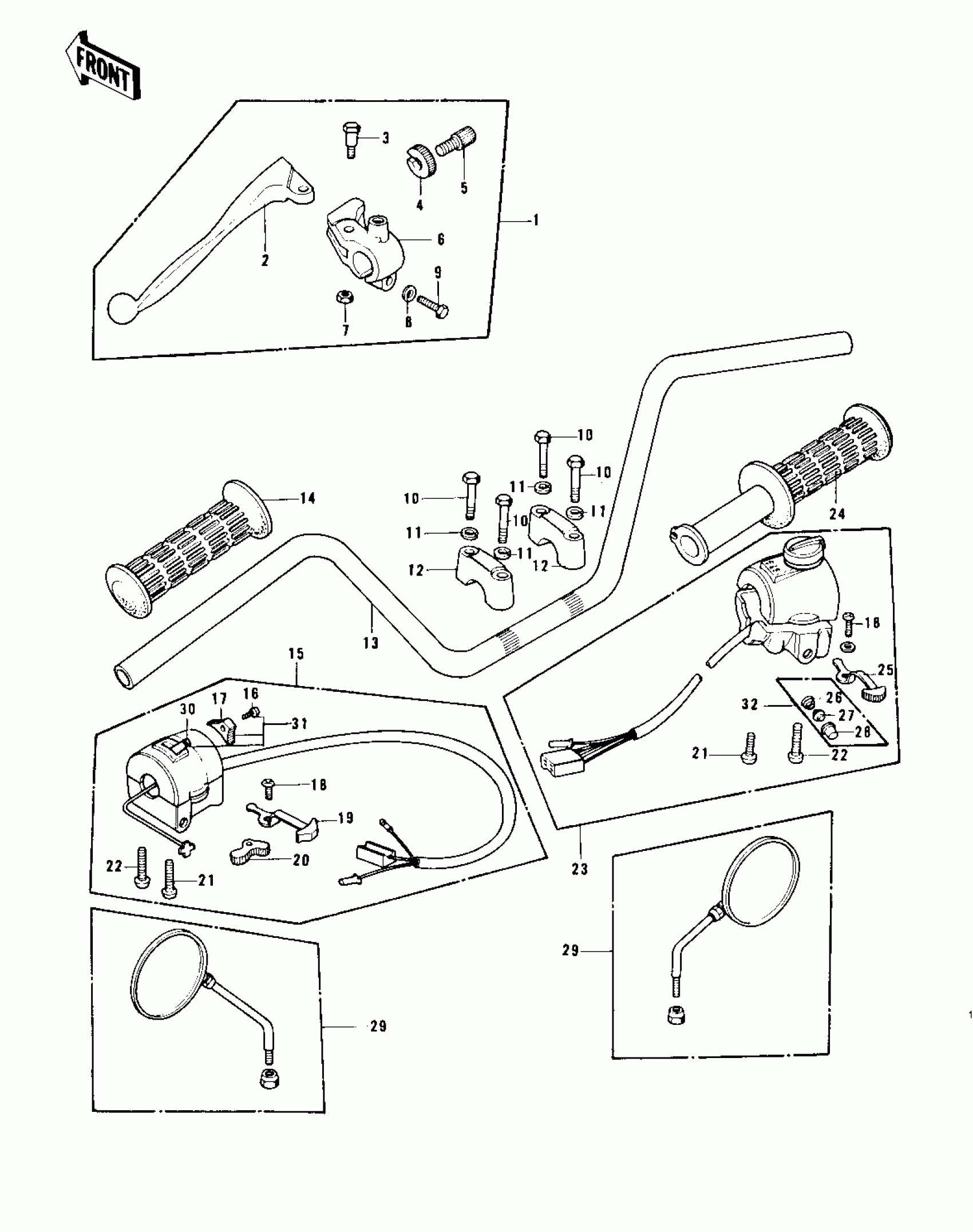

Kawasaki KZ900-A5 HANDLEBAR Diagram
#
1
LEVER ASSY,CLUTCH
46076-049
Unavailable
2
LEVER,CLUTCH
46092-022
Unavailable
3
BOLT,HEX HEAD
92007-047
Unavailable
4
NUT,CABLE ADJUST LOCK,8MM
46056-005
Unavailable
5
SCREW,CABLE ADJUST,8MM
46055-003
Unavailable
6
HOLDER,CLUTCH LEVER
46094-017
Unavailable
7
NUT,LOCK 6MM
92017-014
Unavailable
8
WASHER PLAIN 6MM
411B0600
Unavailable
9
BOLT 6X22
112B0622
Unavailable
10
BOLT 8X38
92007-002
Unavailable
11
WASHER SPRING 8MM
461F0800
Unavailable
12
HOLDER-HANDLE,UPP
46012-008
Unavailable
13
HANDLEBAR
46003-029
Unavailable
14
RUBBER,L.H GRIP
46075-028
Unavailable
15
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
15
HOUSING ASSY,CONT,L.H
46091-1079
Unavailable
16
SCREW CNTSNK HD 3X8
221B0308A
Unavailable
17
KNOB,LIGHTING SW L.H
46044-013
Unavailable
18
SCREW PAN HEAD 3X5
220B0305A
Unavailable
19
KNOB,LIGHTING SW L.H
46043-005
Unavailable
20
BUTTON, HORN PUSH
46028-006
Unavailable
21
SCREW PAN HEAD 5X30
220B0530A
Unavailable
22
SCREW-PAN-CROS
220B0535
Unavailable
23
HOUSING ASSY,R.H CONT
46091-1033
Unavailable
23
HOUSING ASSY,R.H CONT
46091-1033
Unavailable
23
HOUSING ASSY,R.H
46091-1039
Unavailable
24
GRIP ASSY,THROTTLE
46019-038
Unavailable
25
KNOB,LIGHTING SW R.H
46043-004
Unavailable
26
SWITCH ASSY,HORN BUTN
46031-005
Unavailable
27
SWITCH ASSY,HORN BUTN
46079-003
Unavailable
28
SWITCH ASSY,HORN BUTN
46028-003
Unavailable
29
REAR VIEW MIRROR
56001-1030
Unavailable
30
SWITCH,L.H
46089-014
Unavailable
31
L.H GRIP SWITCH KIT
99990-530
Unavailable
32
SWITCH,PUSH BUTTON
27010-1009
Unavailable
