1977 Kawasaki KZ900-A5 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

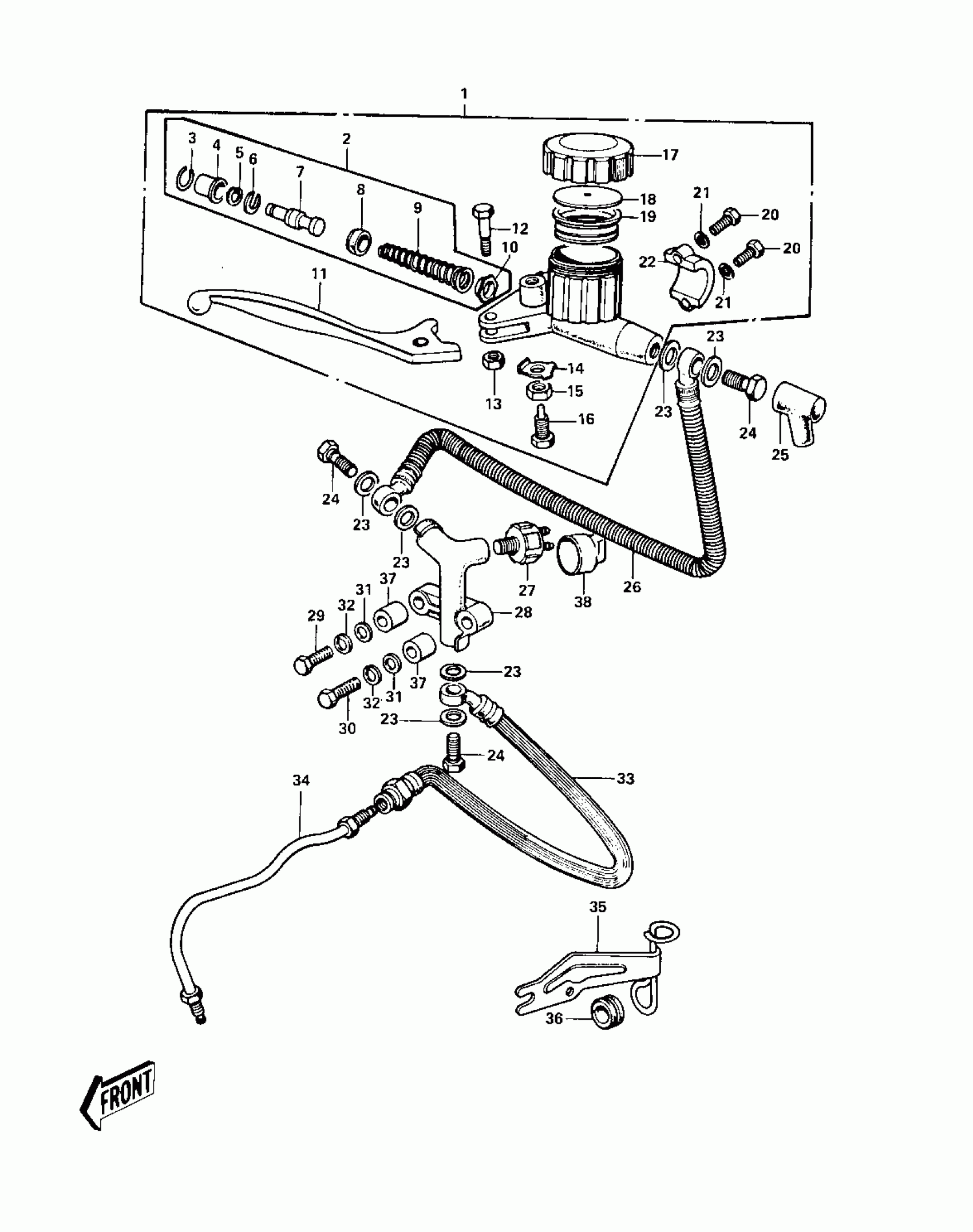

1977 Kawasaki KZ900-A5 Front Master Cylinder Diagram

#

Description
Price
Status
Order Qty

1

CYLINDER ASSY,MASTER

43015-032

Out of stock

1

CYLINDER ASSY,MASTER

43015-032

Out of stock

2

REPAIR SET-MASTER CYL

43073-001

Out of stock

3

STOPPER-BOOTS

43025-001

Out of stock

4

BOOTS

43024-001

Out of stock

5

CIRCLIP-TYPE-C,18MM

481J1800

Out of stock

6

STOPPER-PISTON

43022-001

Out of stock

7

PISTON ASSY

43072-001

Out of stock

8

CUP-PRIMARY

43019-001

Out of stock

9

SPRING ASSY-RETURN

43018-001

Out of stock

10

VALVE ASSY-CHECK

43017-001

Out of stock

11

LEVER,FRONT BRAKE

43029-003

Out of stock

12

BOLT

43033-004

Out of stock

13

NUT 6MM

312B0600

Out of stock

14

WASHER-LOCK,8MM

43031-001

Out of stock

15

NUT,8MM

311B0800

Out of stock

16

BOLT,LEVER ADJUSTING

43030-003

Out of stock

17

CAP,OIL CUP

43026-003

Out of stock

18

PLATE-MASTER CYLINDE

43027-001

Out of stock

19

DIAPHRAGM

43028-001

Out of stock

20

BOLT HEX HEAD 6X25

110N0625

Out of stock

21

WASHER PLAIN 6MM

411B0600

Out of stock

22

HOLDER-MASTER CYL

43034-001

Out of stock

23

WASHER,10.5X15X1.5

43067-001

Out of stock

24

BOLT,OIL,L=23

43066-001

Out of stock

25

BOOT,DUST

49069-001

Out of stock

26

HOSE,FRONT BRAKE

43059-022

Out of stock

27

SWITCH-FRONT BRAKE

43065-001

Out of stock

28

JOINT,THREE WAY

43061-002

Out of stock

29

BOLT HEX HEAD 6X36

110N0636

Out of stock

30

BOLT,HEX HEAD,6X45

110N0645

Out of stock

31

WASHER SPRING 6MM

461F0600

Out of stock

32

WASHER PLAIN 6MM

411B0600

Out of stock

33

HOSE,FRONT BRAKE

43059-011

Out of stock

34

PIPE,BRIDGE

43060-021

Out of stock

35

BRACKET-BRAKE HOSE

43063-001

Out of stock

36

GROMMET-HOSE BRACKET

43064-001

Out of stock

37

COLLAR

92027-241

Out of stock

38

AP,FRONT BRK SWITCH

92073-022 C

Out of stock
