1977 Kawasaki KZ900-A5 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

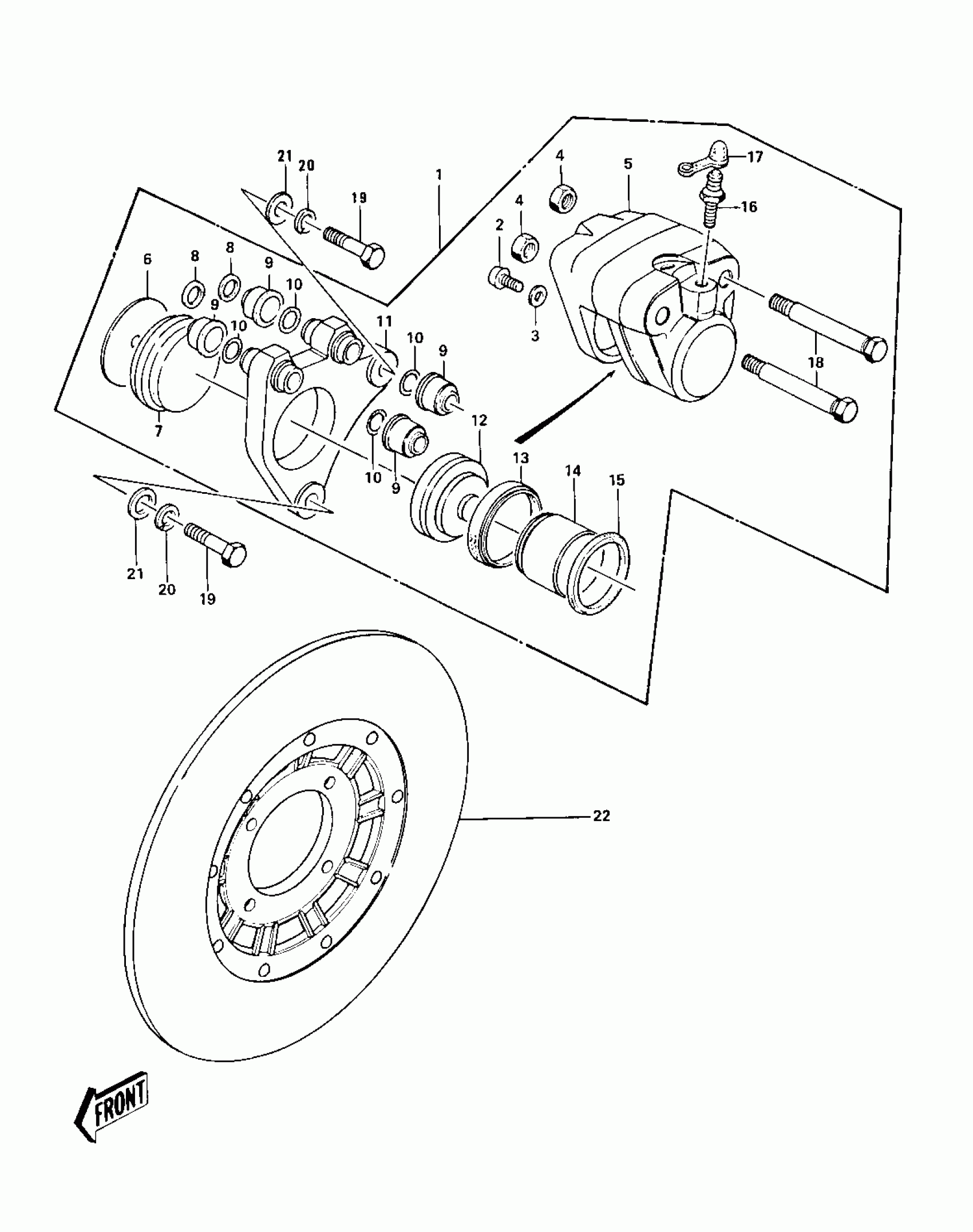

1977 Kawasaki KZ900-A5 Front Brake Diagram

#

Description
Price
Status
Order Qty

1

CALIPER ASSY,FRONT

43041-017

$293.99

In stock

2

SCREW PAN HEAD 6X12

220B0612

Out of stock

3

WASHER SPRING 6MM

461F0600

Out of stock

4

NUT-HEX-FINE,10MM

315B1000

Out of stock

5

CALIPER

43042-008

$222.14

In stock

6

SPACER

43040-004

Out of stock

7

PAD B

43051-006

Out of stock

8

PLUG

43088-002

Out of stock

9

DUST SHILD,SHAFT

43052-005

Out of stock

10

"0" RING

43053-006

Out of stock

11

HOLDER,CALIPER

43044-008

$116.98

In stock

12

PAD SET,(FRONT)

43050-5001

$232.67

In stock

12

PAD SET,(FRONT)

43050-5001

$232.67

In stock

13

DUST SEALD,RUBBER

43054-003

Out of stock

14

PISTON,CALIPER

43048-006

Out of stock

15

$11.01

In stock

16

BLEEDER SET

43085-001

$22.74

In stock

16

BLEEDER SET

43085-001

$22.74

In stock

17

CAP-BREATHER

43057-003

$2.02

In stock

18

BOLT

43045-006

$42.74

In stock

19

BOLT

92007-032

Out of stock

20

WASHER SPRING 10MM

461F1000

Out of stock

21

WASHER PLAIN 10MM

410B1000

Out of stock

22

DISC PLATE,FRONT

41080-005

$525.38

In stock
