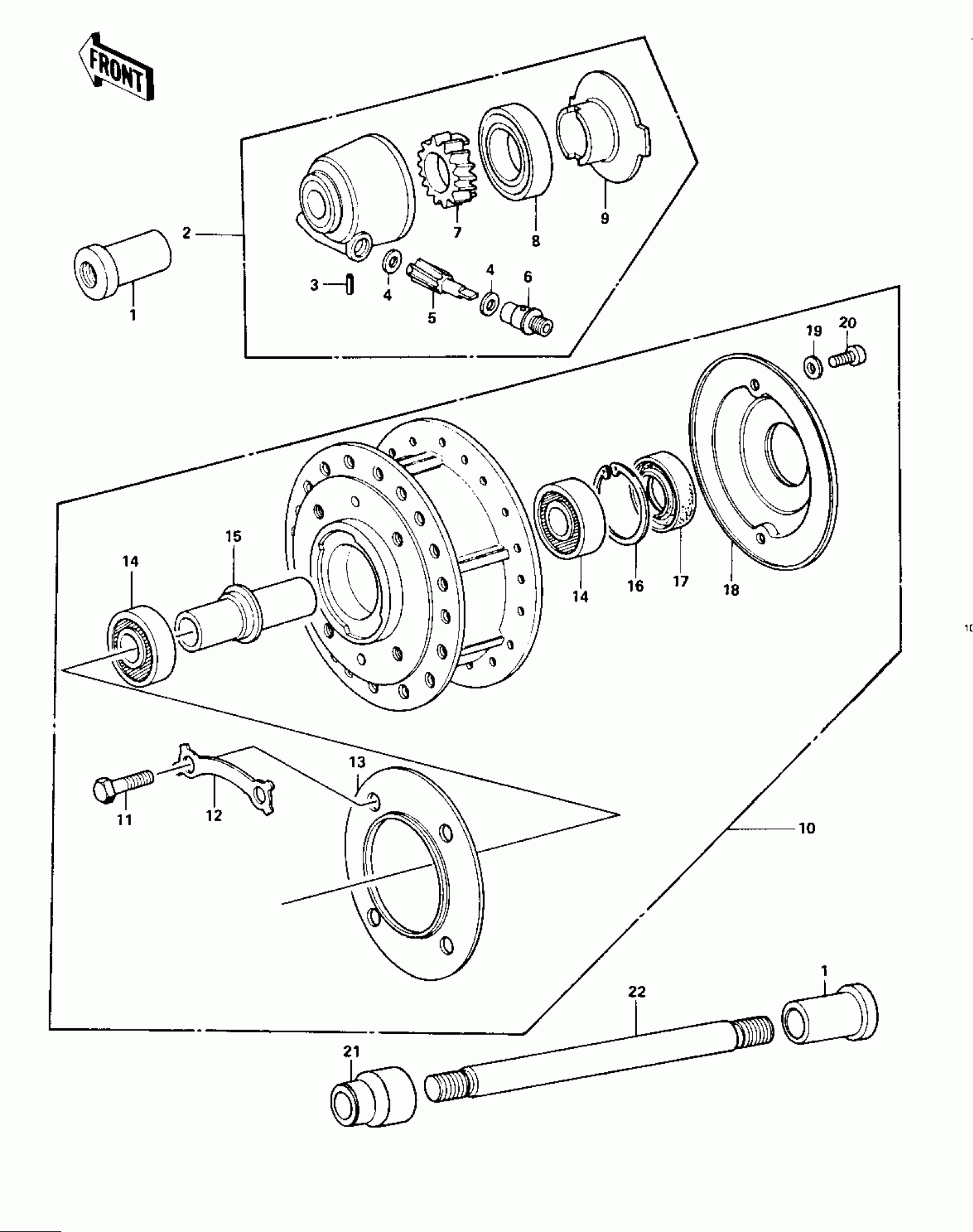

Kawasaki KZ900-A5 FRONT HUB Diagram
#
Description
Price
1
COLLAR,FRONT AXLE
41069-033
Unavailable
2
GEAR BOX ASSY
41078-008
Unavailable
3
PIN,SPRING
41082-001
Unavailable
4
WASHER,5.1X9X0.4
41063-001
Unavailable
5
PINION,SPEEDOMETER
41060-017
Unavailable
6
BUSHING,SPEEDOMETER CABLE
41062-005
Unavailable
7
GEAR-METER SCREW,26T
41059-026
Unavailable
8
OIL SEAL,BJN30427-C3
654A304208
Unavailable
9
RECEIVER,GEAR
41064-013
Unavailable
10
DRUM-ASSY,FR BRK
41034-041
Unavailable
11
BOLT
92001-158
Unavailable
12
WASHER,LOCK
92088-023
Unavailable
13
DUST COVER
41042-014
Unavailable
14
BEARING-BALL,#6203C3
601B6203
Unavailable
15
COLLAR,BRG
41039-028
Unavailable
16
CIRCLIP-TYPE-C,40MM
481J4000
Unavailable
17
OIL SEAL
654A254008
Unavailable
18
DUST COVER
41042-016
Unavailable
19
WASHER PLAIN 5MM
410B0500
Unavailable
20
SCREW PAN HEAD 5X12
220B0512A
Unavailable
21
COLLAR,FRONT AXLE
41069-032
Unavailable
22
AXLE,FRONT
41068-049
Unavailable
