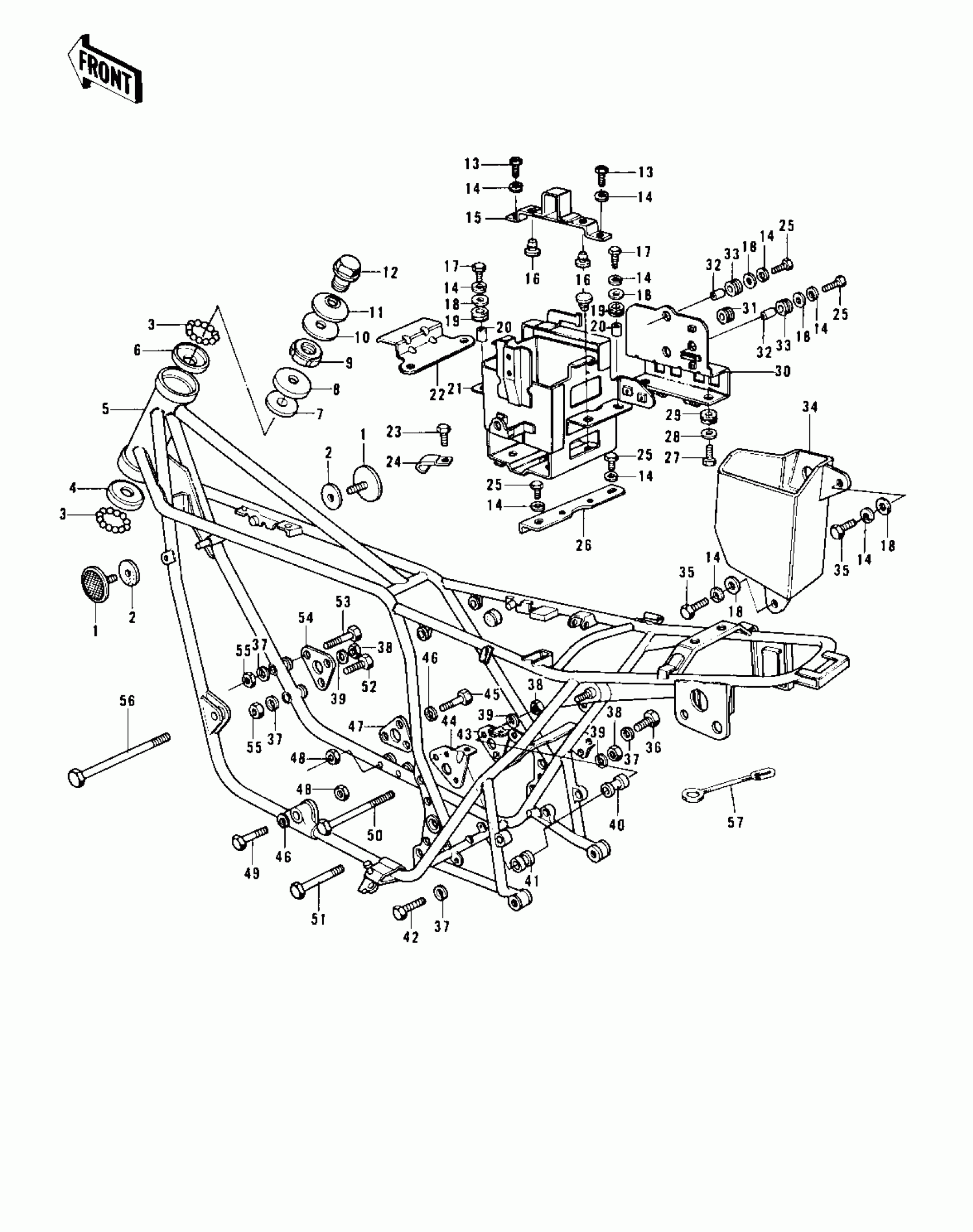

Kawasaki KZ900-A5 FRAME/FRAME FITTINGS Diagram
#
1
REFLECTOR-REFLEX,FR
28012-016
Unavailable
2
DAMPER,REFLECTOR
92094-011
Unavailable
3
BALL-STEEL,1/4
600A0800
Unavailable
4
RACE,STEERING STEM BEARING
92048-008
Unavailable
5
FRAME
32002-152
Unavailable
6
RACE,STEERING STEM BEARING
92048-006
Unavailable
7
RACE,STEERING STEM BEARING
92047-011
Unavailable
8
CAP, STEERING STEM
46098-010
Unavailable
9
NUT,30MM
92090-007
Unavailable
10
WASHER,WAVE
46100-003
Unavailable
11
WASHER,16X41X4
92022-230
Unavailable
12
BOLT,16X25.5
92007-031
Unavailable
13
SCREW-PAN-CROS,6X16
220B0616
Unavailable
14
WASHER SPRING 6MM
461F0600
Unavailable
15
BAND,BATTERY
32100-020
Unavailable
16
DAMPER,RUBBER
92075-078
Unavailable
17
BOLT, HEX HEAD, 6X25
110B0625
Unavailable
18
WASHER,6.5X20X1.6
92022-125
Unavailable
19
DAMPER RUBBER
92075-076
Unavailable
20
COLLAR,6.8X10X8.5
92027-129
Unavailable
21
CASE,BATTERY
32097-039
Unavailable
22
STAY,AIR CLEANER
32105-006
Unavailable
23
BOLT,6X10
110B0610
Unavailable
24
CLAMP,WIRING HARNESS
21126-007
Unavailable
25
BOLT HEX HEAD 6X16
110B0616
Unavailable
26
PLATE,BATTERY CASE
32113-003
Unavailable
27
BOLT,HEAX HEAD,6X14
92001-115
Unavailable
28
WASHER PLAIN 8MM
410B0800
Unavailable
29
DAMPER
92075-161
Unavailable
30
BRACKET,BASE
32129-006
Unavailable
31
DAMPER RUBBER
92075-051
Unavailable
32
COLLAR
92027-165
Unavailable
33
DAMPER RUBBER
92075-149
Unavailable
34
CASE,TOOL
32098-024
Unavailable
35
BOLT,6X14
110B0614
Unavailable
36
BOLT
110G0840
Unavailable
37
WASHER SPRING 8MM
461F0800
Unavailable
38
NUT,10MM
92019-004
Unavailable
39
WASHER SPRING 10MM
461F1000
Unavailable
40
COLLAR,ENG MOUNTING
92027-160
Unavailable
41
COLLAR,ENG MOUNTING
92027-159
Unavailable
42
BOLT, HEX HEAD, 8X36
110G0836
Unavailable
43
PLATE,ENGINE RR,R.H
32030-056
Unavailable
44
PLATE,REAR ENGINE,L.H
32030-055
Unavailable
45
BOLT,HEX HEAD,12X71
113B1271A
Unavailable
46
WASHER-SPRING,12MM
461F1200
Unavailable
47
PLATE,ENG MOUNT LOWER
32030-026
Unavailable
48
NUT,12MM
92016-045
Unavailable
49
BOLT,HEX HEAD,12X56
113B1256A
Unavailable
50
BOLT,ENGINE MOUNTING
92091-023
Unavailable
51
BOLT,ENGINE MOUNTING
92003-099
Unavailable
52
BOLT,HEX HEAD,8X59
110G0859
Unavailable
53
BOLT-8X63
110G0863
Unavailable
54
PLATE,ENG MOUNT FRON
32030-025
Unavailable
55
NUT,8MM
311B0800
Unavailable
56
BOLT,ENGINE MOUNTING
92091-022
Unavailable
57
CLAMP,OVER FLOW PIPE
92037-134
Unavailable
