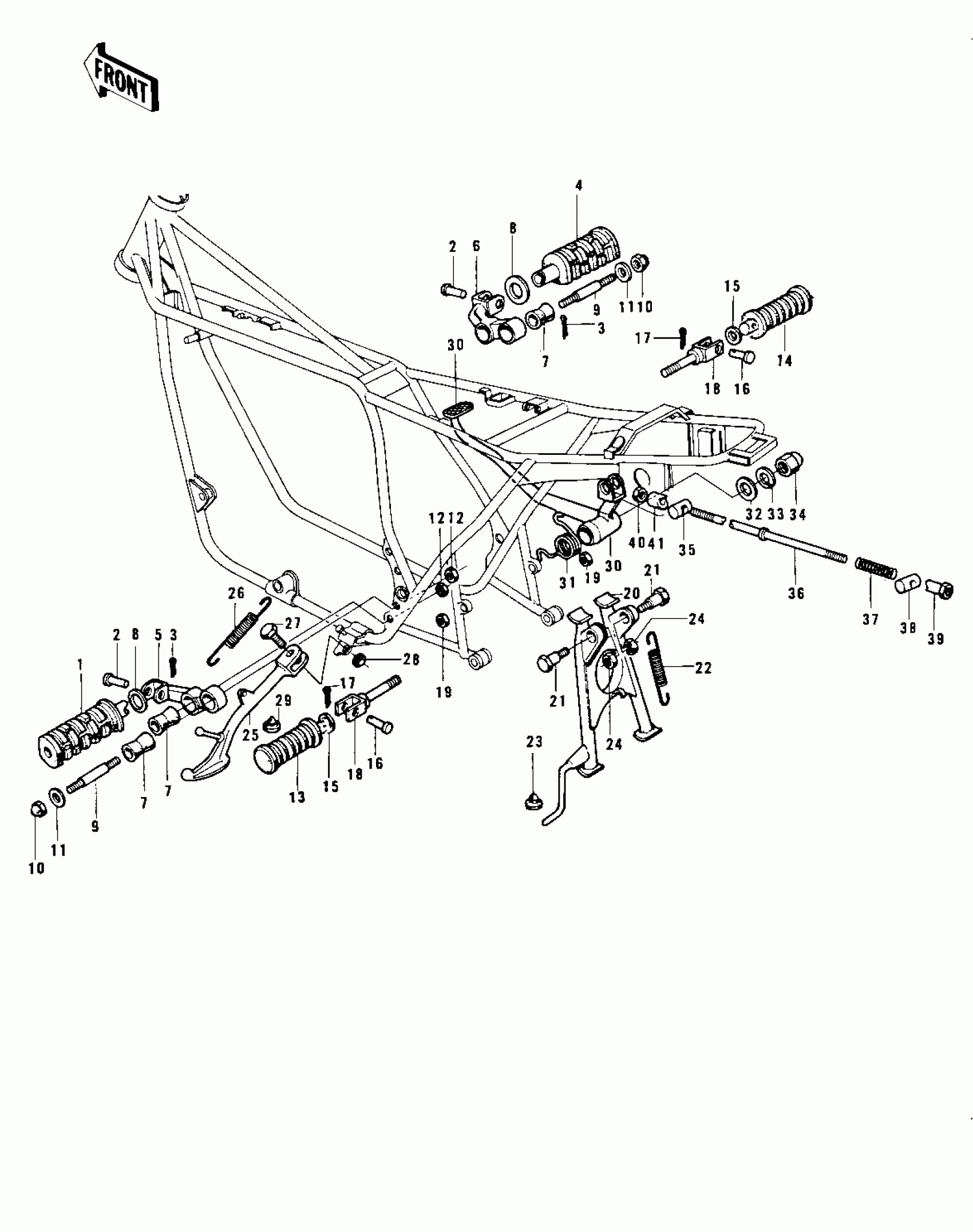

Kawasaki KZ900-A5 FOOTRESTS/STANDS/BRAKE PEDAL Diagram
#
1
BAR-FOOTREST,L.H
34028-011
Unavailable
2
PIN,8X31
92043-080
Unavailable
3
PIN COTTER 2.5X16
550D2516
Unavailable
4
BAR-FOOTREST,R.H
34028-012
Unavailable
5
BRACKET,FOOTREST,L.H
34003-036
Unavailable
6
BRACKET,FOOTREST,R.H
34003-037
Unavailable
7
DAMPER RUBBER,FOOTRST
92075-140
Unavailable
8
WASHER,25X36X2.3
92022-250
Unavailable
9
STUD,FOOTREST BAR FI
92004-048
Unavailable
10
NUT,CAP AND LOCK,8MM
92019-013
Unavailable
11
CAP,FOOTRESTBAR
92102-010
Unavailable
12
NUT-HEX-FINE,10MM
315B1000
Unavailable
13
RUBBER,FOOTREST
92076-027
Unavailable
14
RUBBER,FOOTREST
92076-027
Unavailable
15
WASHER-PLAIN (OPT)
92022-199
Unavailable
16
PIN,6X28
92043-1464
Unavailable
17
PIN-COTTER,2.0X12
550D2012
Unavailable
18
BRACKET,REAR FOOTREST
33028-011
Unavailable
19
NUT-HEX-FINE,12MM
315B1200A
Unavailable
20
STAND-MAIN
34011-029
Unavailable
21
SHAFT MAIN STAND
34019-014
Unavailable
22
SPRING,CNT STAND
34023-012
Unavailable
23
DAMPER
92075-015
Unavailable
24
NUT,14MM
92016-044
Unavailable
25
STAND-SIDE
34024-060
Unavailable
26
SPRING,STAND
34025-005
Unavailable
27
BOLT,SIDE STAND
92003-079
Unavailable
28
NUT-HEX-FINE,10MM
315B1000
Unavailable
29
DAMPER
92075-157
Unavailable
30
PEDAL,BRAKE
43001-044
Unavailable
31
SPRING,BRAKE PEDAL
43005-041
Unavailable
32
WASHER,8.5X20X1.6
92022-195
Unavailable
33
WASHER SPRING 8MM
461F0800
Unavailable
34
NUT,CAP AND LOCK,8MM
92019-013
Unavailable
35
PIN,REAR BRAKE ROD
92043-095
Unavailable
36
ROD,REAR BRAKE
43011-017
Unavailable
37
SPRING,BRAKE ROD
43012-001
Unavailable
38
PIN,BRAKE ROD
92043-065
Unavailable
39
NUT,BRAKE ROD
92015-042
Unavailable
40
NUT,LOCK,6MM
92019-008
Unavailable
41
PIN,BRAKE ROD
92027-177
Unavailable
