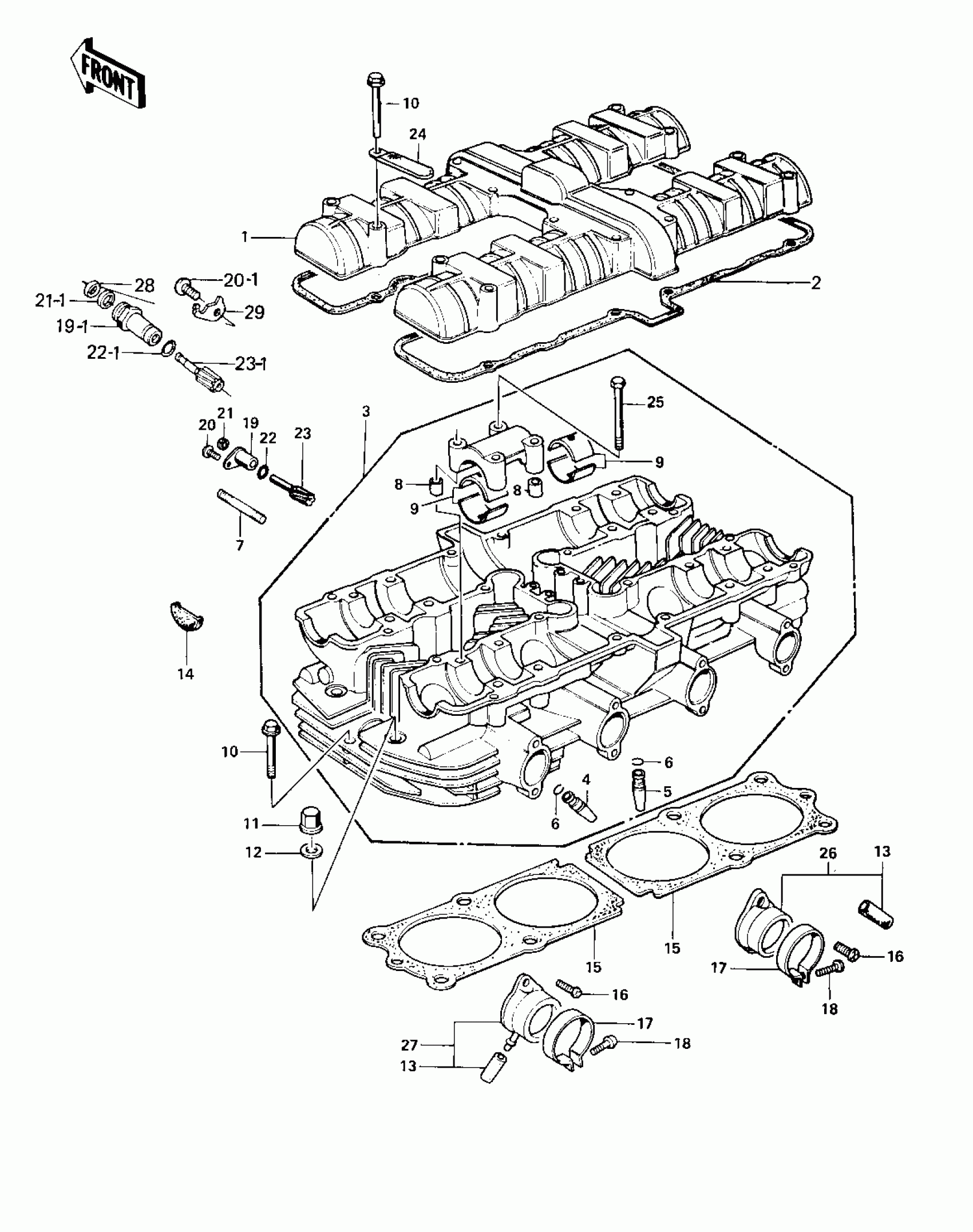

Kawasaki KZ900-A5 CYLINDER HEAD/COVER Diagram
#
1
COVER,CYLINDER HEAD,BARREL FINISH
11022-005-2H
Unavailable
2
GASKET,CYL HEAD COVE
11023-006
Unavailable
3
CYLINDER HEAD,BARREL FINISH
11002-016-2H
Unavailable
4
GUIDE,INLET VALVE
12013-001
Unavailable
4
GUIDE,INLET VALVE
12013-001
Unavailable
5
GUIDE, EXHAUST VALVE
12013-002
Unavailable
5
GUIDE, EXHAUST VALVE
12013-002
Unavailable
6
RING-SNAP,VALVE GUIDE
92036-023
Unavailable
7
STUD,6X46
92004-049
Unavailable
8
PIN,DOWEL,6.3X8X14
92042-007
Unavailable
9
BUSHING,CAMSHAFT
13034-030
Unavailable
10
BOLT,FLANGED,6X45
92003-092
Unavailable
11
NUT,FLANGED CAP,10MM
92015-076
Unavailable
12
WASHER,PLAIN,10MM
92022-215
Unavailable
13
PLUG,12X25
92068-006
Unavailable
14
PLUG,CAM SHAFT
92066-017
Unavailable
15
GASKET,CYLINDER HEAD
11004-066
Unavailable
16
SCREW PAN HEAD 6X18
220B0618
Unavailable
17
CLAMP,HOLDER
92123-001
Unavailable
18
SCREW PAN HEAD 5X20
220B0520A
Unavailable
19
GUIDE,TACHOMETER CABLE
92087-006
Unavailable
19-1
GUIDE,TACHOMETER GEAR
92087-010
Unavailable
20
SCREW PAN HEAD 6X12
220B0612
Unavailable
20-1
SCREW PAN HEAD 6X10
220B0610
Unavailable
21
SEAL-OIL
92050-075
Unavailable
21-1
SEAL-OIL
92050-075
Unavailable
22
RING-O,10MM
92055-096
Unavailable
22-1
RING-O,10MM
92055-096
Unavailable
23
GEAR,TACHOMETER,10T
13223-011
Unavailable
23-1
GEAR,TACHOMETER,10T
13223-011
Unavailable
24
CLAMP,WIRING HARNESS
21126-007
Unavailable
25
BOLT,FLANGED,6X45
92003-092
Unavailable
26
HOLDER-R.H CARBRETOR
16065-028
Unavailable
27
HOLDER,CARBURETOR,L.
16065-029
Unavailable
28
GASKET,TACHOMETER GEAR
92065-103
Unavailable
29
PLATE,STOPPER
13169-015
Unavailable
