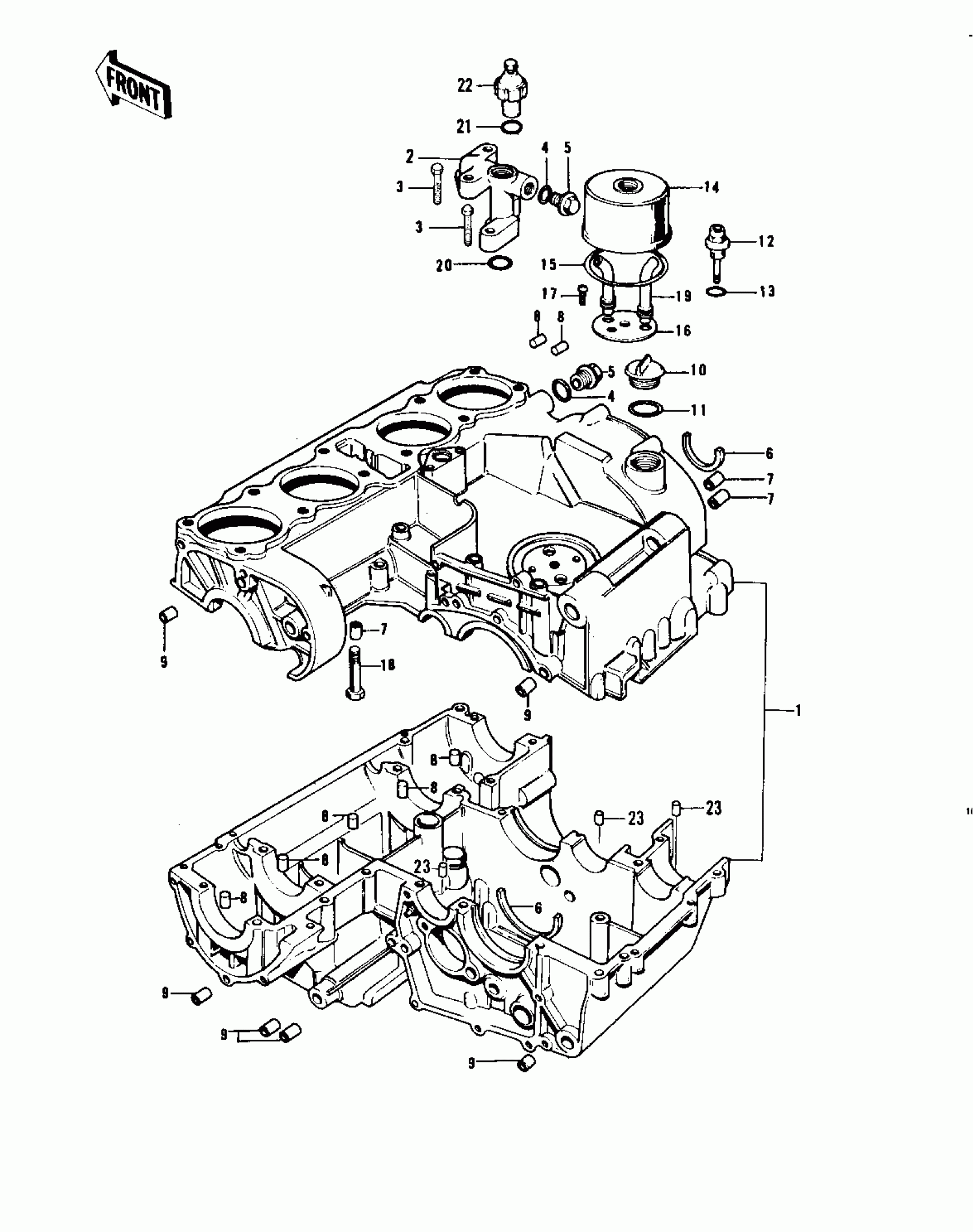

Kawasaki KZ900-A5 CRANKCASE/BREATHER COVER Diagram

#

Description

Price

1

CRANKCASE SET,BUFF FINISH

14001-104-2J

Unavailable

1

CRANKCASE SET,BUFF FINISH

14001-104-2J

Unavailable

1

CRANKCASE SET

14001-5025

Unavailable

2

PIPE

16109-003

Unavailable

3

BOLT,HEX HEAD,6X35

92001-153

Unavailable

4

O RING,15MM

670B2015

Unavailable

5

PLUG,14X12

92066-021

Unavailable

6

RING-POSITION,T=1.98

14013-1004

Unavailable

7

PIN,DOWEL,10X14

552A1014

Unavailable

8

PIN,DOWEL,6X14

610A0614

Unavailable

9

PIN,DOWEL,6.3X8X14

92042-007

Unavailable

10

CAP-OIL FILLER

16115-013

Unavailable

11

RING-O,31.5X2.6

92055-049

Unavailable

12

BOLT,BREATHER FITTING

92003-098

Unavailable

13

O RING,16MM

670B2016

Unavailable

14

BODY,BREATHER

14070-003

Unavailable

15

RING-O,91.6X3.4

92055-052

Unavailable

16

PLATE,BREATHER

14068-007

Unavailable

17

SCREW PAN HEAD 6X18

220B0618

Unavailable

18

BOLT,HEX HEAD,8X72

92003-107

Unavailable

19

PIPE,BREATHER PLATE

92059-118

Unavailable

20

O RING,18MM

670B2018

Unavailable

21

RING-O,19.5X1.5

92055-055

Unavailable

22

SWITCH,OIL PRESSURE

27010-1013

Unavailable

22

SWITCH,OIL PRESSURE

27010-1013

Unavailable

23

PIN,DOWEL,6X16

92042-016

Unavailable
