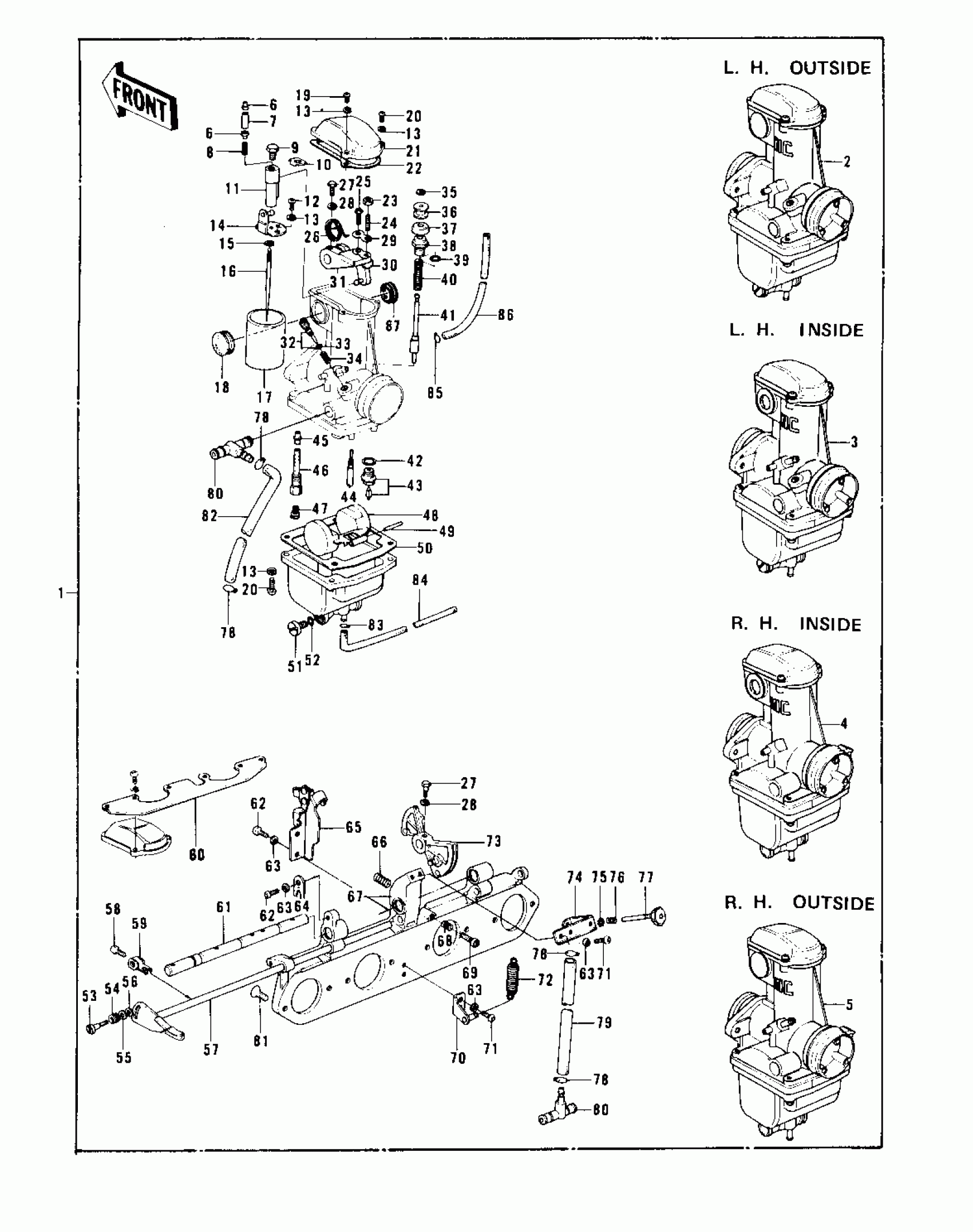

Kawasaki KZ900-A5 CARBURETORS Diagram
#
1
CARBURETOR ASSY
16001-255
Unavailable
2
CARBURETOR,L.H OUTSID
16001-268
Unavailable
3
CARBURETOR,L.H INSIDE
16001-269
Unavailable
4
CARBURETOR,R.H INSIDE
16001-270
Unavailable
5
CARBURETOR,R.H OUTSID
16001-271
Unavailable
6
SEAT-SPRING
16057-002
Unavailable
7
PIN
16042-009
Unavailable
8
SPRING
16040-004
Unavailable
9
BOLT
16067-008
Unavailable
10
WASHER,LOCK
16054-003
Unavailable
11
SHAFT,THROTTLE VALVE
16052-003
Unavailable
12
SCREW,PAN HEAD 4X12
16033-015
Unavailable
13
WASHER SPRING 4MM
461F0400
Unavailable
14
PLATE,THROTTLE VALVE
16007-018
Unavailable
15
CIRCLIP,JET NEEDLE
16008-004
Unavailable
16
JET NEEDLE,5DL3
16009-071
Unavailable
17
VALVE,THROTTLE CAL,5
16025-075
Unavailable
18
CAP,RUBBER
16039-042
Unavailable
19
UNAVAILABLE IN PRICE BOOK
16033-013
Unavailable
20
SCREW FLOAT CHAMBER
16033-009
Unavailable
21
TOP,MIXING CHAMBER
16005-027
Unavailable
22
GASKET,CHAMBER TOP
16019-031
Unavailable
23
NUT,5MM
16003-013
Unavailable
24
SCREW,LEVER
16046-009
Unavailable
25
BOLT,4X16
16067-009
Unavailable
26
SPRING,LEVER
16040-021
Unavailable
27
BOLT,HEX HEAD,5X14
16067-006
Unavailable
28
WASHER SPRING 5MM
461F0500
Unavailable
29
WASHER,PLATE
16054-008
Unavailable
30
LEVER,THROTTLE
16068-013
Unavailable
31
LEVER
16068-012
Unavailable
32
SCREW,PILOT ADJUSTING
16014-017
Unavailable
33
GASKET,"O"RING
16038-022
Unavailable
34
SPRING,PILOT AIR SCREW
16022-007
Unavailable
35
CIRCLIP
16076-003
Unavailable
36
COLLAR
16073-014
Unavailable
37
CAP,STARTER PLUNGER
16039-015
Unavailable
38
CAP,STARTER PLUNGER
16012-015
Unavailable
39
O RING,9MM
670B1509
Unavailable
40
SPRING,STARTER PLUG
16013-008
Unavailable
41
PLUNGER,STARTER
16016-017
Unavailable
42
WASHER FLOAT VLV SEAT
16029-004
Unavailable
43
FLOAT VALVE ASSY
16030-027
Unavailable
44
PILOT JET,#17.5
92064-042
Unavailable
45
NEEDLE JET,0-6
16017-093
Unavailable
46
HOLDER,NEEDLE JET
16047-004
Unavailable
47
JET-MAIN NO 115R
92063-076
Unavailable
47
MAIN JET,#110R
92063-074
Unavailable
47
JET-MAIN NO 112.5R
92063-075
Unavailable
47
JET-MAIN NO 117.5R
92063-077
Unavailable
47
MAIN JET NO 120R
92063-078
Unavailable
48
FLOAT
16031-031
Unavailable
49
PIN,FLOAT
16032-003
Unavailable
50
GASKET,FLOAT CHAMBER
16019-030
Unavailable
51
SCREW GUIDE
16049-005
Unavailable
52
"0" RING,MAIN JET COV
16038-016
Unavailable
53
SCREW
16046-005
Unavailable
54
SPRING,F
16040-009
Unavailable
55
WASHER,PLAIN
16039-020
Unavailable
56
WASHER,PLAIN,NYLON
16039-019
Unavailable
57
SHAFT,STARTER PLUNGER
16041-016
Unavailable
58
SCREW,PAN HEAD,5X7
16046-007
Unavailable
59
SCREW, PAN HEAD
16068-014
Unavailable
60
PLATE,CARB CONNECTIO
16065-040
Unavailable
61
SHAFT,CARB CONNECTIO
16041-017
Unavailable
62
SCREW,PAN HEAD,5X14
16033-016
Unavailable
63
WASHER SPRING 5MM
461F0500
Unavailable
64
PLATE,SHAFT STOPPER
16055-012
Unavailable
65
BRACKET,CABLE PULLY
16077-014
Unavailable
66
SPRING,CABLE PULLY
16040-022
Unavailable
67
HOLDER,CARB MOUNTING
16065-039
Unavailable
68
SPRING,THROTTLE ADJST
16022-010
Unavailable
69
ADJUSTER,THROTTLE LEV
16021-020
Unavailable
70
BRACKET,CABLE PULLY
16077-012
Unavailable
71
SCREW,PAN HEAD,5X14
16033-016
Unavailable
72
SPRING,CABLE PULLY
16040-020
Unavailable
73
PULLY,THROTTLE CABLE
16068-011
Unavailable
74
HOLDER,THROTTLE SCRE
16077-013
Unavailable
75
WASHER LOCK 5MM
464H0500
Unavailable
76
SPRING,THR STOP SCREW
16022-009
Unavailable
77
SCREW,THROTTLE STOP
16021-028
Unavailable
78
CLAMP,TUBE
92037-072
Unavailable
79
HOSE,FUEL I.D=6.5MM,L=260MM
92059-084
Unavailable
80
JOINT,FUEL PIPE
16046-002
Unavailable
81
SCREW,6X14
16033-029
Unavailable
82
PIPE,OVER FLOW
92059-085
Unavailable
83
CLAMP,OVERFLOW HOSE
92037-173
Unavailable
84
HOSE,FUEL OVERFLOW
92059-134
Unavailable
85
CLAMP,BREATHER TUBE
92037-174
Unavailable
86
HOSE,BREATHER, I.D.=5MM
92059-135
Unavailable
87
GROMMET,CARB
92071-102
Unavailable
