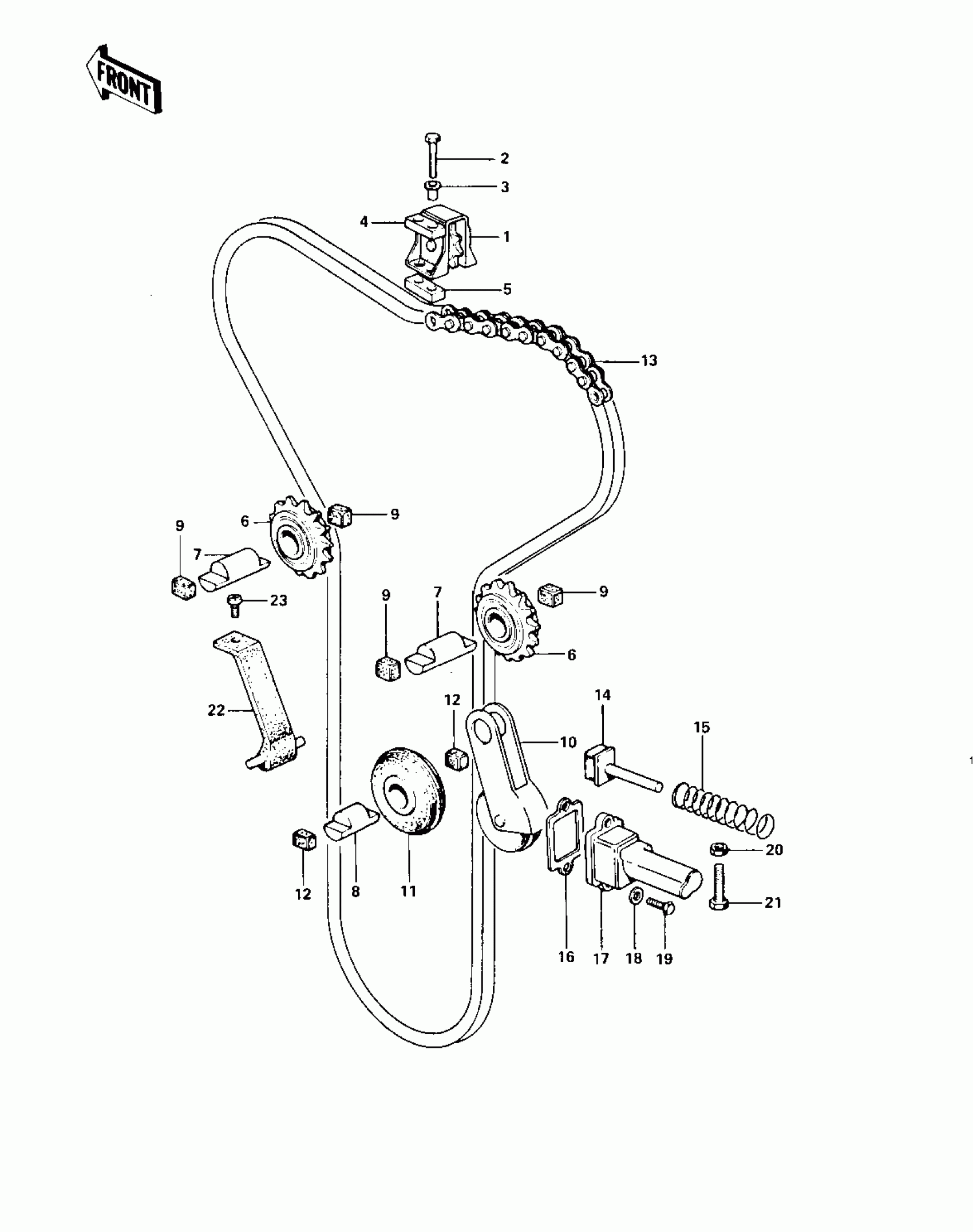

Kawasaki KZ900-A5 CAM CHAIN/TENSIONER Diagram

#

Description

Price

1

IDLER ASSY,CAM CHAIN

12057-001

Unavailable

2

BOLT,HEX HEAD 6X35

110G0635

Unavailable

3

COLLAR

92027-155

Unavailable

4

RUBBER,IDLER

92075-119

Unavailable

5

RUBBER,IDLER

92075-120

Unavailable

6

IDLER ASSY

12057-002

Unavailable

7

SHAFT-IDLER,GUIDE ROLLAR

12052-005

Unavailable

8

SHAFT-IDLER,CAM CHAIN GUIDE

12052-003

Unavailable

9

DAMPER,IDLER SHAFT

92075-232

Unavailable

10

TENSIONER ASSY,CHAIN

12048-001

Unavailable

11

ROLLER,CAM CHAIN GUI

12055-002

Unavailable

12

DAMPER RUBBER

92075-123

Unavailable

13

CHAIN,CAM SHAFT

21070-003

Unavailable

14

PUSH ROD,CAM CHAIN

12054-001

Unavailable

15

SPRING,TENSTIONER

92081-107

Unavailable

16

GASKET,TENSIONER

11009-1038

Unavailable

16

GASKET,TENSIONER

11009-1038

Unavailable

17

HOLDER,TENSIONER

12049-1003

Unavailable

17

HOLDER,TENSIONER

12049-1003

Unavailable

18

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

19

BOLT, HEX HEAD 6X35

110B0620

Unavailable

20

NUT 6MM

310B0600

Unavailable

21

BOLT,TENSIONER ADJUS

92003-093

Unavailable

22

GUIDE,CAM CHAIN

12053-019

Unavailable

23

SCREW PAN HEAD 6X10

220B0610

Unavailable
