1977 Kawasaki KZ900-A5 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1977 Kawasaki KZ900-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

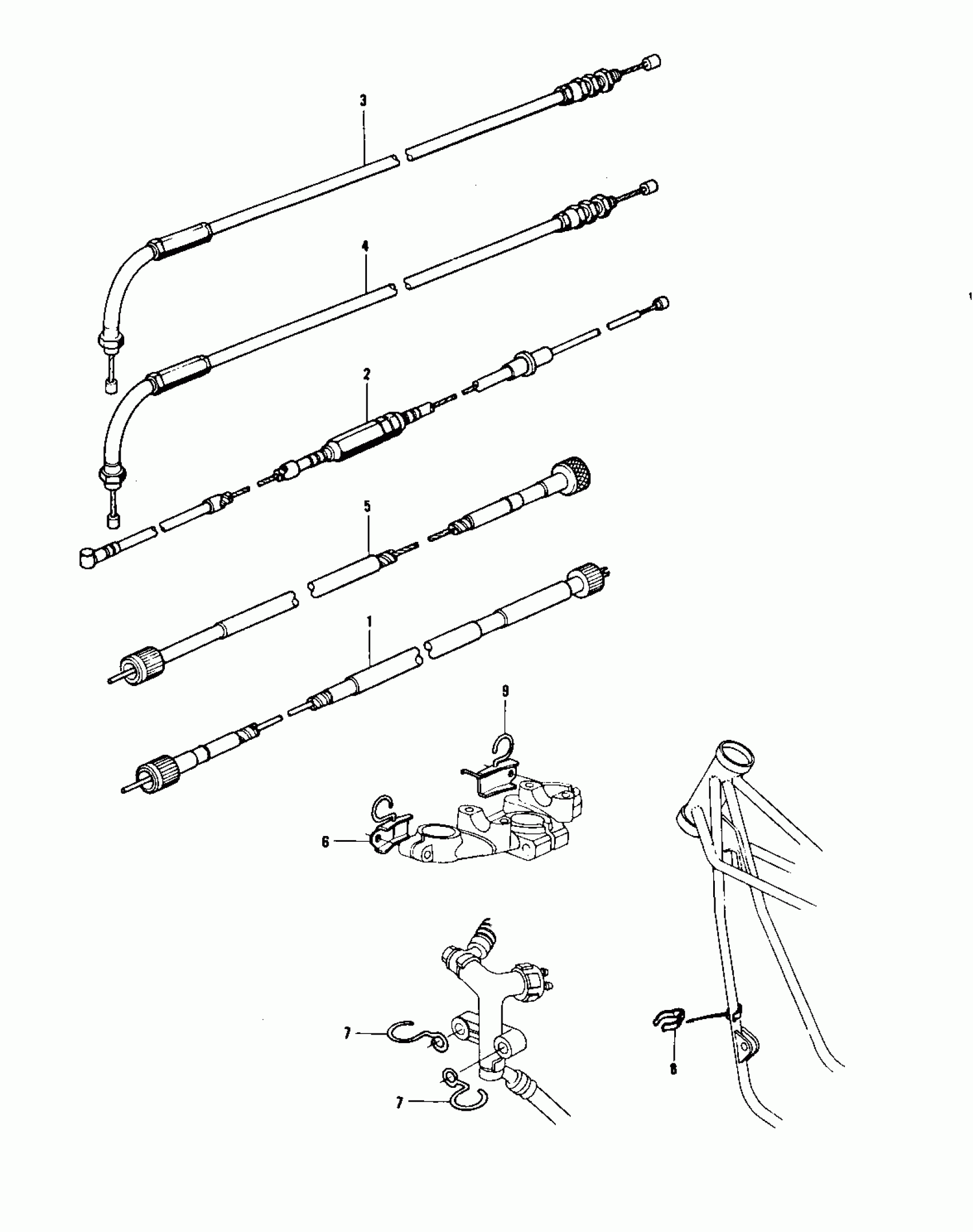

1977 Kawasaki KZ900-A5 Cables Diagram

#

Description
Price
Status
Order Qty

1

CABLE,SPEEDOMETER

54001-040

Out of stock

2

CABLE,CLUTCH

54011-048

$91.52

In stock

3

CABLE,CONTROL

54012-081

$97.05

In stock

4

CABLE,CONTROL

54012-087

$97.05

In stock

5

CABLE,TACHOMETER

54018-015

Out of stock

6

CLAMP,CABLE

92037-090

Out of stock

7

CLAMP,CABLE

92037-092

$7.72

In stock

8

CLAMP

92037-093

$10.92

In stock

9

CLAMP,CABLE

92037-104

Out of stock
