1983 Kawasaki KZ750-L3 Transmission Diagram

← All diagrams

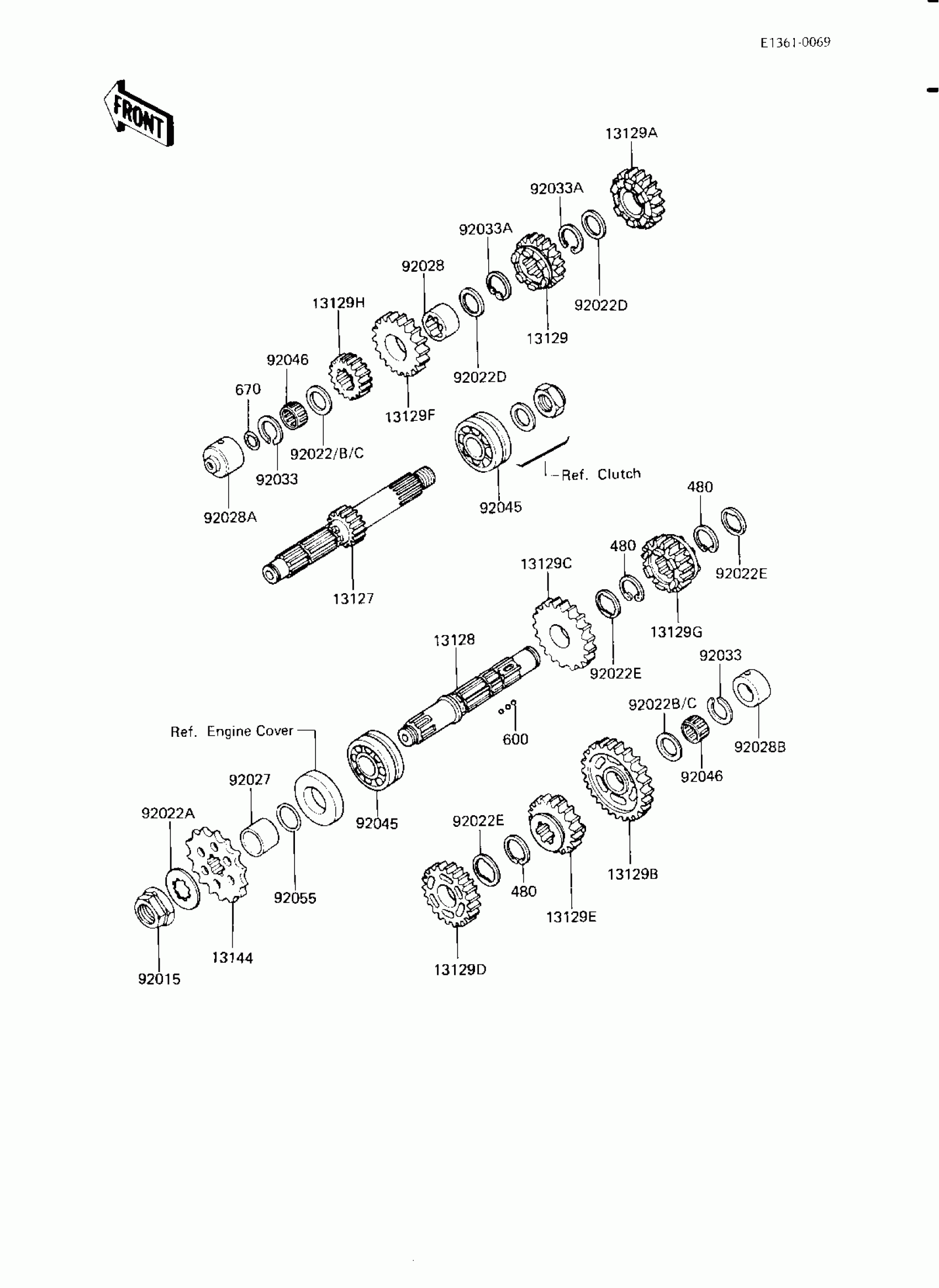

Find the part on the Transmission diagram for your 1983 Kawasaki KZ750-L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki KZ750-L3 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1018

1
Out of stock

13128

SHAFT,OUTPUT

13128-1012

1
Out of stock

13129

3RD GEAR,DRIVE SHAFT

13129-1032

1
Out of stock

13129A

4TH GEAR,DRIVE SHAFT

13129-1044

1
Out of stock

13129B

GEAR,OUTPUT LOW,35T

13129-1046

1
Out of stock

13129C

GEAR,OUTPUT 2ND,31T

13129-1047

1
Out of stock

13129D

GEAR,OUTPUT 3RD,28T

13129-1048

1
Out of stock

13129E

GEAR,OUTPUT 4TH,26T

13129-1049

1
Out of stock

13129F

TOP GEAR,DRIVE SHAFT

13129-1200

1
Out of stock

13129G

GEAR,OUTPUT TOP,21T

13129-1201

1
Out of stock

13129H

GEAR,INPUT 2ND,19T

13130-041

1
Out of stock

13144

ENGINE SPROCKET,13T

13144-1033

1
Out of stock

92015

NUT,20MM

92015-1254

1
Out of stock

92022

WASHER,20.3X30X0.7,STEEL

92022-1026

—
Out of stock

92022A

WASHER

92200-1065

1
Out of stock

92022B

WASHER,20.5X30X1,STEEL

92022-112

1
Out of stock

92022C

WASHER,20.5X30X0.5,STEEL

92022-144

—
Out of stock

92022D

WASHER,25.3X30X1

92022-161

1
Out of stock

92022E

WASHER,TOOTHED,30.5X38X1

92024-069

1
Out of stock

92027

COLLAR,ENG SPROCKET

92027-288

1
Out of stock

92028

BUSHING,INPUT TOP GEAR

92028-1007

1
Out of stock

92028A

BUSHING,INPUT SHAFT

92028-1150

1
Out of stock

92028B

BUSHING,27X34X18.6

92028-1151

1
Out of stock

92033

RING-SNAP,20MM

92033-015

1
Out of stock

92033A

RING-SNAP,24MM

92033-026

1
Out of stock

92045

BEARING-BALL,83993SH2-CS

92045-035

1
Out of stock

92046

BEARING-NEEDLE,20V2715

92046-1045

1
Out of stock

92055

RING-O

92055-035

1
Out of stock

480

CIRCLIP-TYPE-C,30MM

480J3000

1
Out of stock

600

BALL-STEEL,5/32

600A0500

1
Out of stock

670

O RING,8MM

670B1508

1
Out of stock
