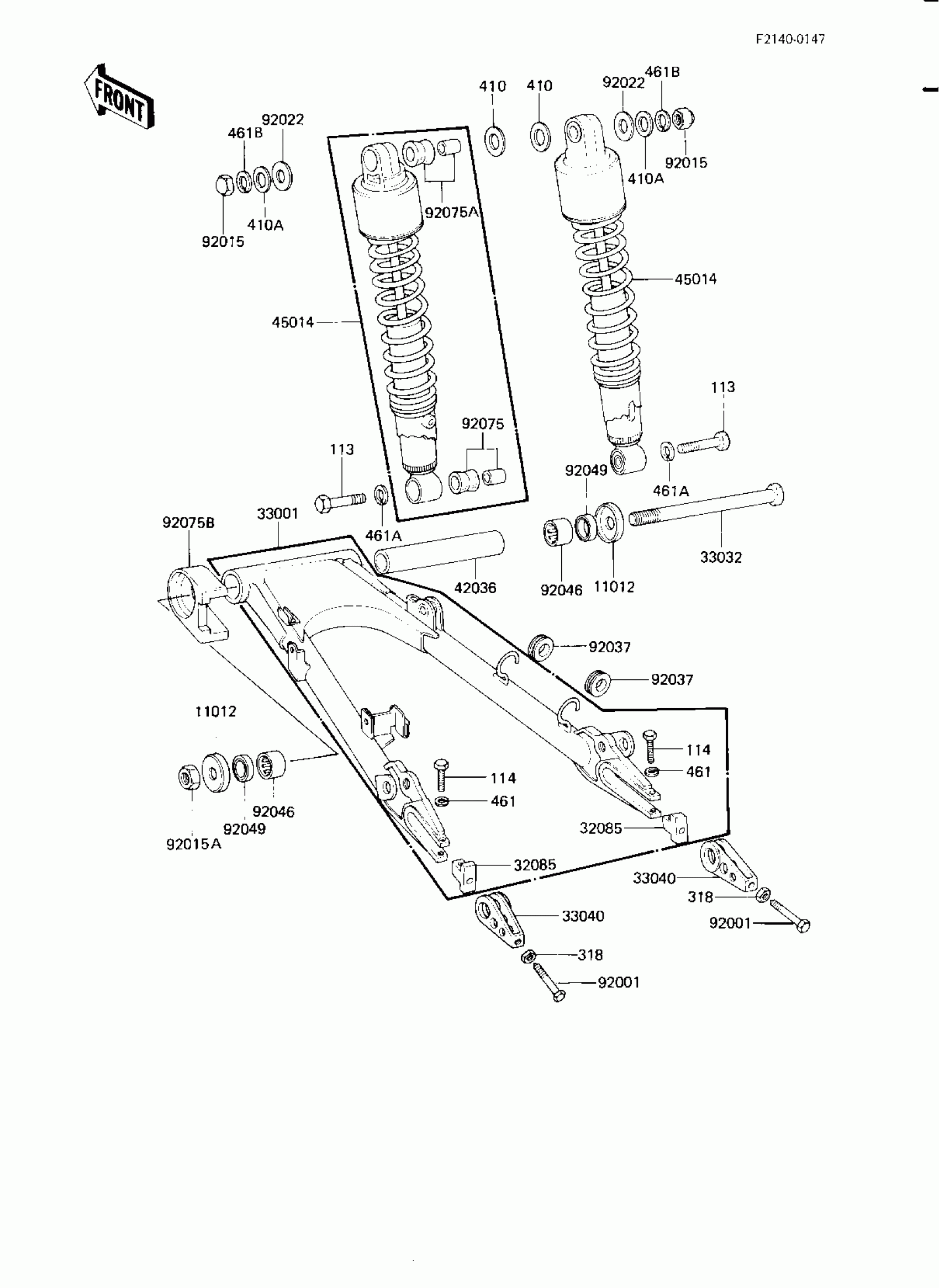

Kawasaki KZ750-L3 SWING ARM/SHOCK ABSORBERS Diagram

#

Description
Price

11012

CAP,SWING ARM

33035-009

Unavailable

32085

STOPPER,CHAIN ADJUST

33044-002

Unavailable

33001

ARM-COMP-SWING

33001-1159

$272.47

33032

SHAFT-SWING ARM,16X3

33032-1028

$76.33

33040

ADJUSTER,CHAIN

33040-056

Unavailable

42036

SLEEVE,SWING ARM

42036-1012

Unavailable

45014

SHOCKABSORBER,RR,BLA

45014-1225-10

$395.59

92001

BOLT,8X50

92001-1399

$7.22

92015

UNAVAILABLE IN PRICE BOOK

2911-51029

Unavailable

92015A

NUT,LOCK,16MM,BLACK

92015-1207

Unavailable

92022

WASHER,12.4X28X2.3,B

92022-1303

Unavailable

92037

GROMMET,HOSE CLAMP

43064-007

$4.18

92046

BEARING-NEEDLE,HK2216

92046-1115

Unavailable

92049

SEAL-OIL,MHA22284

92049-1059

$8.74

92075

DAMPER,SHOCKABSORBER,LWR

45017-019

$15.84

92075A

DAMPER,SHOCKABSORBER

92075-1141

$11.31

92075B

DAMPER,

92075-1144

$18.29

113

BOLT-SMALL-FINE,10X3

112C1035

Unavailable

114

BOLT-SMALL-UPSET

115G0835

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

410

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

410A

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

461A

WASHER-SPRING,10MM,BLACK

461K1000

Unavailable

461B

WASHER-SPRING,12MM,BLACK

461K1200

Unavailable
