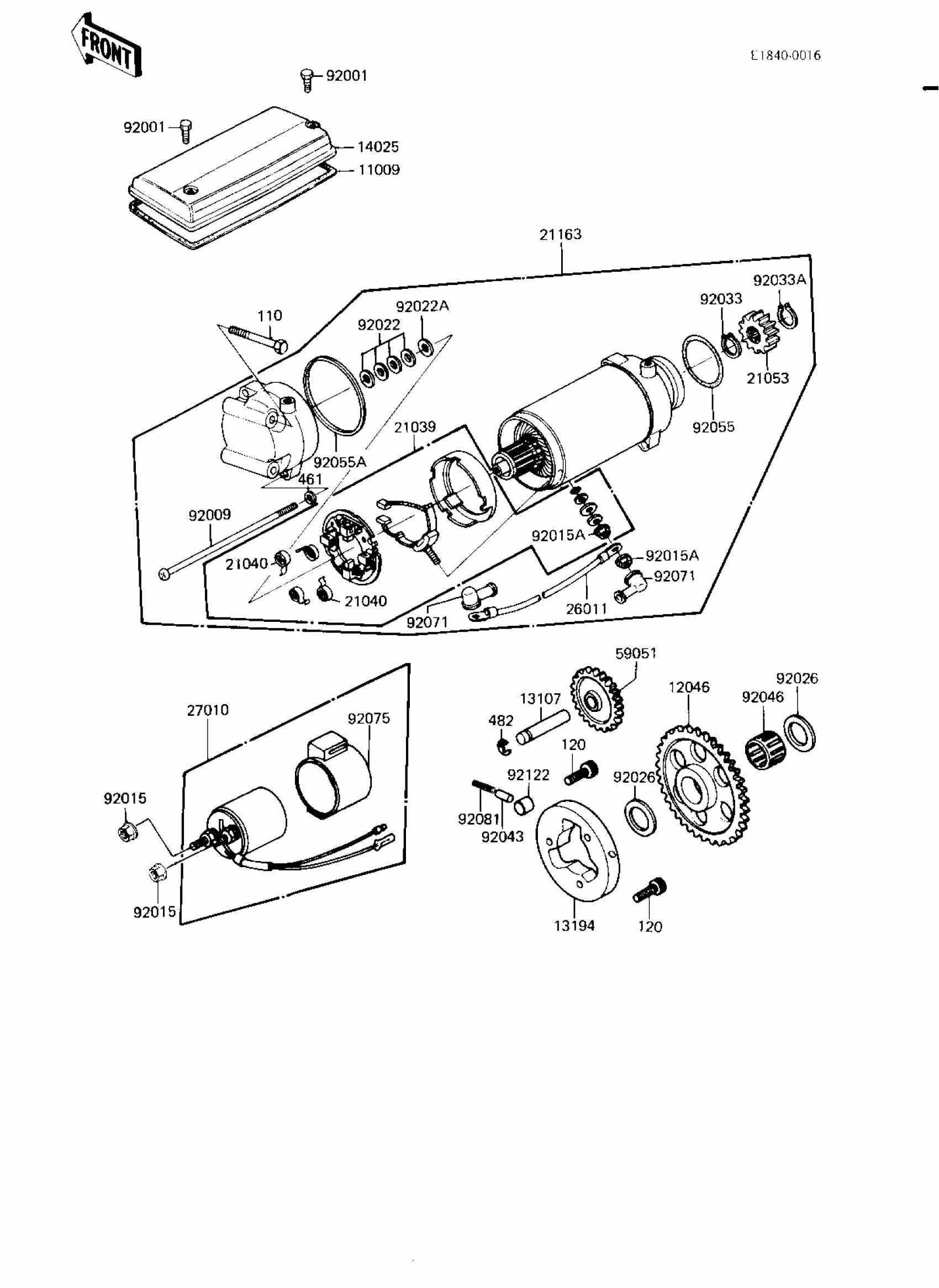

Kawasaki KZ750-L3 STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

11009

GASKET,STARTER COVER

21166-003

Unavailable

12046

SPROCKET,STARTER,58T

12046-1032

Unavailable

13107

SHAFT,IDLE GEAR

21143-003

$14.64

13194

CLUTCH-ASSY-ONEWAY

13193-1012

Unavailable

14025

COVER,STARTER

21165-003

Unavailable

21039

BRUSH,CARBON

21039-1053

$94.23

21040

SPRING-BRUSH

21040-1003

$9.41

21053

SPROCKET-ASSY,STARTER

21053-004

$93.28

21163

STARTER-ELECTRIC

21163-1190

$596.26

26011

WIRE-LEAD,STARTER MOTOR

26011-1135

$74.28

27010

SWITCH ASSY,MAGNETIC

21164-005

$159.50

59051

GEAR-SPUR,IDLE,29T

21167-004

$101.58

92001

BOLT,6X10

92001-1151

$5.01

92009

SCREW,PAN HEAD,6X130

21099-006

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92022A

WASHER,9.1X18X0.8

92022-1132

$6.22

92026

SPACER,25X36X3.2

92026-1025

$6.16

92033

RING-SNAP,17MM

92033-034

$10.44

92033A

RING-SNAP,13MM

92033-037

$9.80

92043

PIN

92043-087

$12.76

92046

BEARING-NEEDLE,K253017

92046-056

$23.42

92055

RING-O,40MM

21027-008

$12.48

92055A

RING-O,64MM

92055-1086

$10.00

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING

92081-110

$4.76

92122

ROLLER,15X13

92122-004

$11.07

110

BOLT-UPSET

112G0660

Unavailable

120

BOLT-SOCKET,8X12

120P0812

$4.24

461

WASHER SPRING 6MM

461F0600

$0.69

482

CIRCLIP 12MM

482K0200

$1.25
