Description

Price

13091

HOLDER,SEAT HOOK

13091-1137

Unavailable

13091A

HOLDER,SEAT HOOK,RH

13091-1158

Unavailable

14025

COVER,SEAT,EBONY

14025-5089-H8

Unavailable

27012

HOOK,SEAT LOCK

27012-1027

$20.43

27012A

HOOK,SEAT

53008-021

$11.34

27016

LOCK-ASSY,SEAT

27016-5049

Unavailable

32099

CASE,MANUAL

32099-011

$16.66

53001

SEAT-ASSY,DUAL,L/BAN

53001-1215

Unavailable

53003

LEATHER,SEAT

53003-1023

$227.47

92009

SCREW,TAPPING,5X8

92009-1043

$4.77

92027

COLLAR,L=13.1

92027-251

Unavailable

92071

GROMMET

92071-056

$4.26

92075

DAMPER,SEAT

92075-1133

$11.84

92075A

DAMPER,SEAT,RR

92075-1276

Unavailable

92075B

DAMPER,SEAT

92075-1313

Unavailable

92075C

RUBBER,FENDER COVER

92075-174

$4.78

92075D

DAMPER,FEMALE

92075-175

$4.39

110

BOLT-UPSET 6X14

112B0614

Unavailable

110A

BOLT-UPSET,6X20

112G0620

$2.12

220

SCREW-PAN-CROS,6X10,BLACK

220C0610

$1.81

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69

461A

WASHER-SPRING,6MM,BLACK

461K0600

$0.64

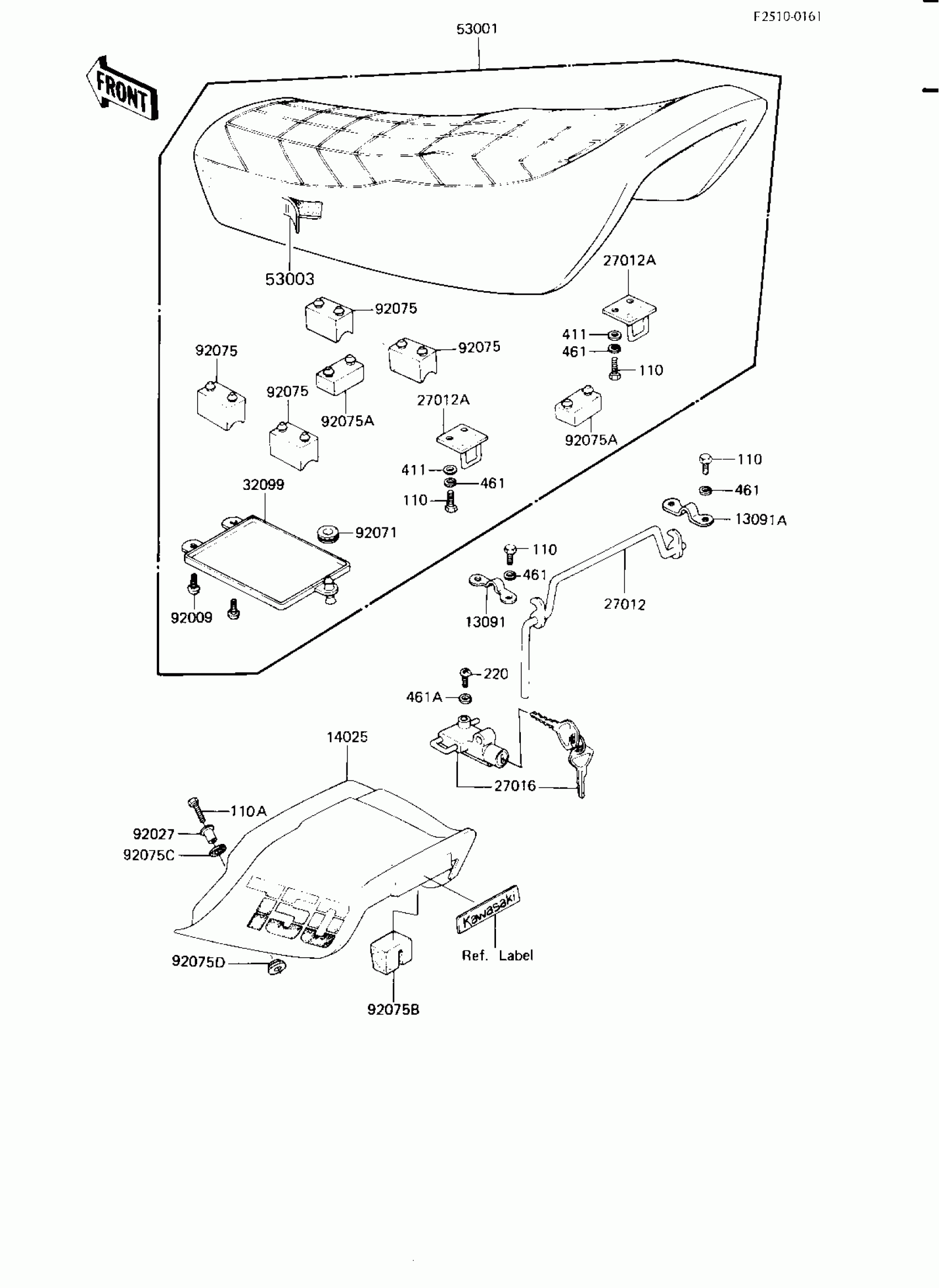

Kawasaki KZ750-L3 SEAT/SEAT COVER Diagram

HOLDER,SEAT HOOK

HOLDER,SEAT HOOK,RH

COVER,SEAT,EBONY

HOOK,SEAT LOCK

HOOK,SEAT

LOCK-ASSY,SEAT

CASE,MANUAL

SEAT-ASSY,DUAL,L/BAN

LEATHER,SEAT

SCREW,TAPPING,5X8

COLLAR,L=13.1

GROMMET

DAMPER,SEAT

DAMPER,SEAT,RR

DAMPER,SEAT

RUBBER,FENDER COVER

DAMPER,FEMALE

BOLT-UPSET 6X14

BOLT-UPSET,6X20

SCREW-PAN-CROS,6X10,BLACK

WASHER PLAIN 6MM

WASHER SPRING 6MM

WASHER-SPRING,6MM,BLACK
