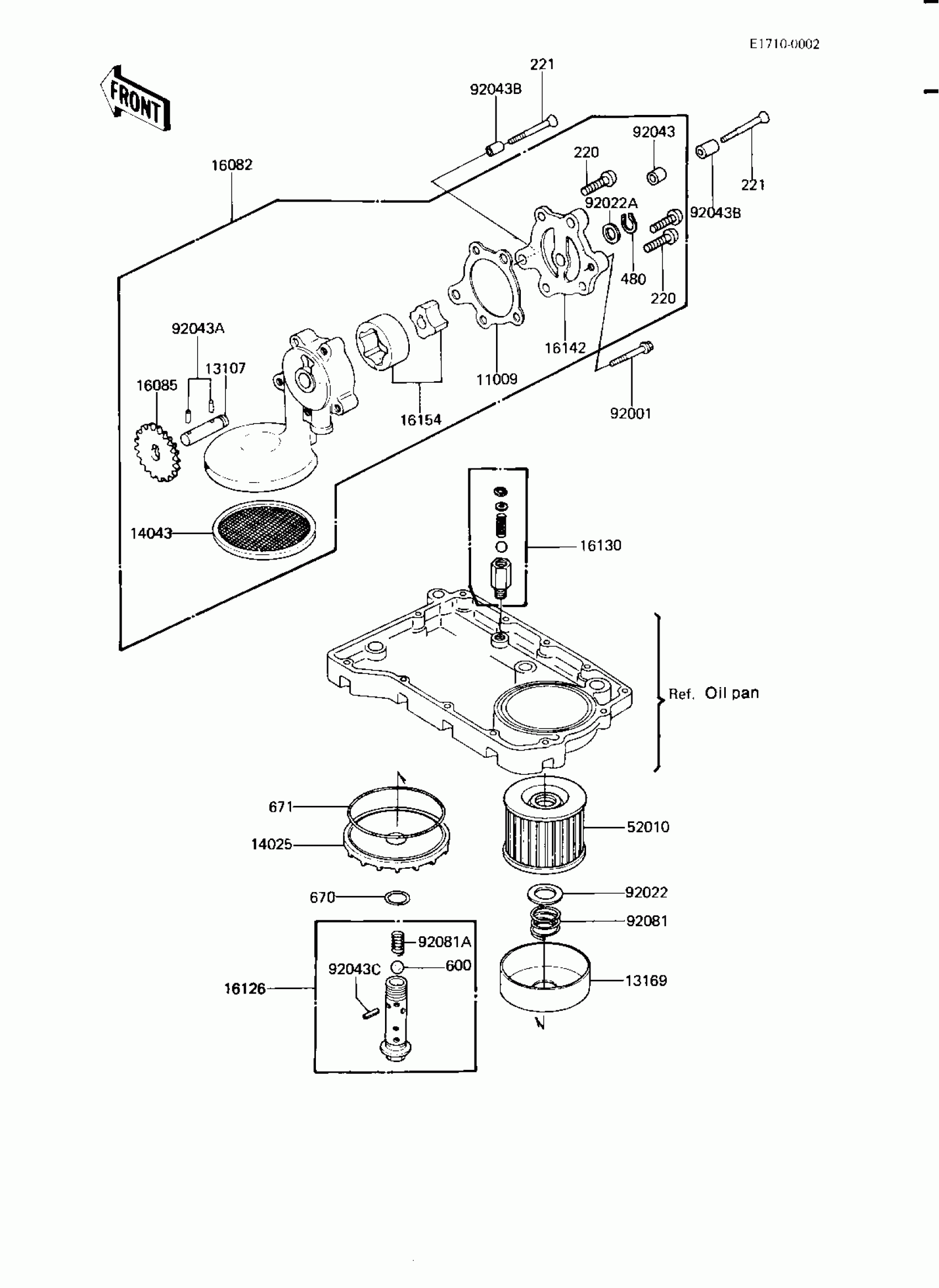

Kawasaki KZ750-L3 OIL PUMP/OIL FILTER Diagram

#

Description
Price

11009

GASKET,OIL PUMP COVER

16145-004

$2.66

13107

SHAFT,OIL PUMP

16086-004

Unavailable

13169

PLATE,OIL FILTER

13169-1110

$7.49

14025

COVER,OIL FILTER

16101-004

$39.50

14043

FILTER,OIL PUMP

16111-004

$45.22

16082

PUMP-ASSY-OIL

16082-064

Unavailable

16085

GEAR,OIL PUMP,57T

16085-025

Unavailable

16126

VALVE,OIL FILTER

16126-1108

$37.32

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

16142

COVER-PUMP

16142-005

$39.24

16154

ROTOR-PUMP

16154-003

$89.99

52010

ELEMENT-OIL FILTER

16099-003

$9.28

92001

BOLT,FLANGED,6X45

92001-165

$3.98

92022

WASHER,20.5X30X1

92022-1012

$3.32

92022A

WASHER,11.2X15X1

92022-311

$3.53

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92043A

PIN,DOWEL,4X12.8

92042-041

$5.71

92043B

PIN,DOWEL,8X28

92042-050

$3.85

92043C

PIN,SPRING,2X20

92043-111

$5.46

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-109

$10.85

220

SCREW PAN HEAD 6X22

220B0622

Unavailable

221

SCREW-CSK-CROS,6X55

221B0655

Unavailable

480

CIRCLIP-TYPE-C,11MM

480J1100

$0.95

600

BALL-STEEL,3/8"

600A1200

$1.14

670

O RING,16MM

670B2016

$1.04

671

O RING,90MM

671B2590

$7.54
