1983 Kawasaki KZ750-L3 Ignition Switch/locks/reflectors Diagram

← All diagrams

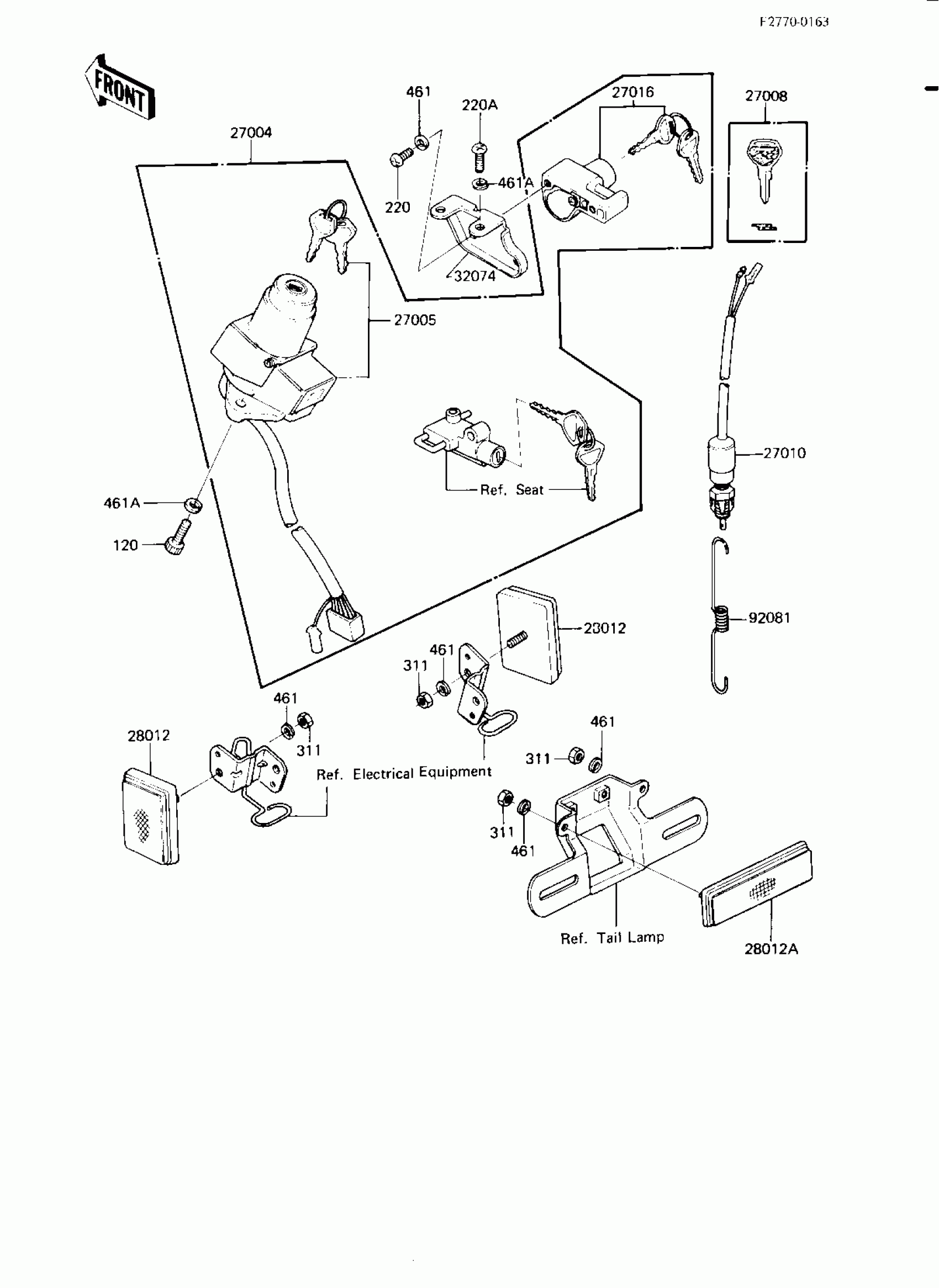

Find the part on the Ignition Switch/locks/reflectors diagram for your 1983 Kawasaki KZ750-L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki KZ750-L3 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

27004

SWITCH-ASSY,ALL

27004-5205

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5024

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1103

1
Out of stock

27010

SWITCH,REAR BRAKE

27010-1019

1
Out of stock

27016

LOCK ASSY,HELMET

27016-5038

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1003

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1005

1
Out of stock

32074

BRACKET-LOCK,HELMET,

32074-1035

1
Out of stock

92081

SPRING,BRAKE LAMP SWITCH

27011-011

1
Out of stock

120

BOLT-SOCKET,6X16

120S0616

1
Out of stock

220

SCREW PAN HEAD 5X8

220B0508

1
Out of stock

220A

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

311

NUT-HEX

311B0500

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock

461A

WASHER SPRING 6MM

461F0600

1
Out of stock
