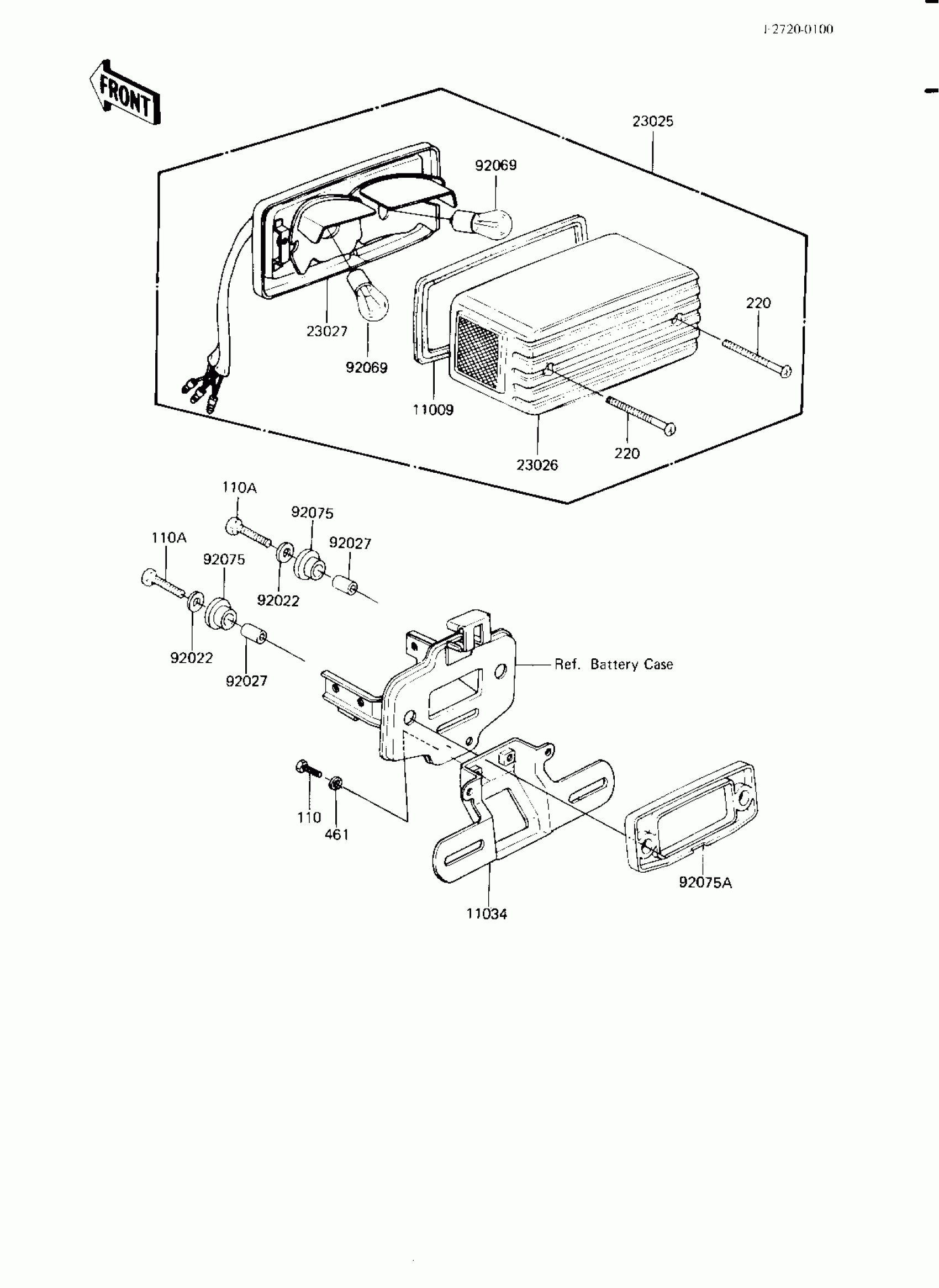

Kawasaki KZ750-L3 TAILLIGHT Diagram

Description

Price

11009

GASKET,TAIL LAMP

11009-1221

$14.05

11034

BRACKET

11034-1922

Unavailable

23025

LAMP-TAIL,BLACK

23025-1038

Unavailable

23026

LENS,TAIL LAMP

23026-1021

$141.52

23027

BODY-COMP-TAIL LAMP,B

23027-1025

$152.55

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X17.6

92027-1316

$10.47

92069

BULB,12V 27/8W

92069-059

$6.19

92075

DAMPER RUBBER

92075-1092

Unavailable

92075A

DAMPER

92075-1282

Unavailable

110

BOLT-UPSET,6X12

112G0612

Unavailable

110A

BOLT-UPSET

112G0625

Unavailable

220

SCREW-PAN-CROS

220C0465

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
