Description

Price

21119

IGNITER

21119-1050

Unavailable

21121

COIL,IGNITION #1.#4

21121-1027

$254.26

21121A

COIL,IGNITION #2.#3

21121-1028

Unavailable

21130

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

21148

ADVANCER,AUTO TIMING

21148-1013

Unavailable

59026

COIL-PULSING

59026-1019

Unavailable

92001

BOLT,8X63

92001-1397

$5.43

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,BREAKER GOVERNOR

92022-244

$14.09

92037

CLAMP,WIRING HARNESS

21126-008

$4.73

92070

SPARK PLUG B7ES

B7ES

Unavailable

92070A

SPARK PLUG B8ES

B8ES

$3.62

92070D

SPARK PLUG BR8ES

BR8ES

$3.62

92071

GROMMET,PLUG CAP

21131-004

$10.97

92071A

GROMMET,HIGH TENSION

21132-005

$4.26

110

BOLT-UPSET

112G0618

$1.01

220

SCREW-PAN-CROS

220B0512

$0.47

411

WASHER PLAIN 6MM

411B0600

$2.84

461

WASHER SPRING 6MM

461F0600

$0.69

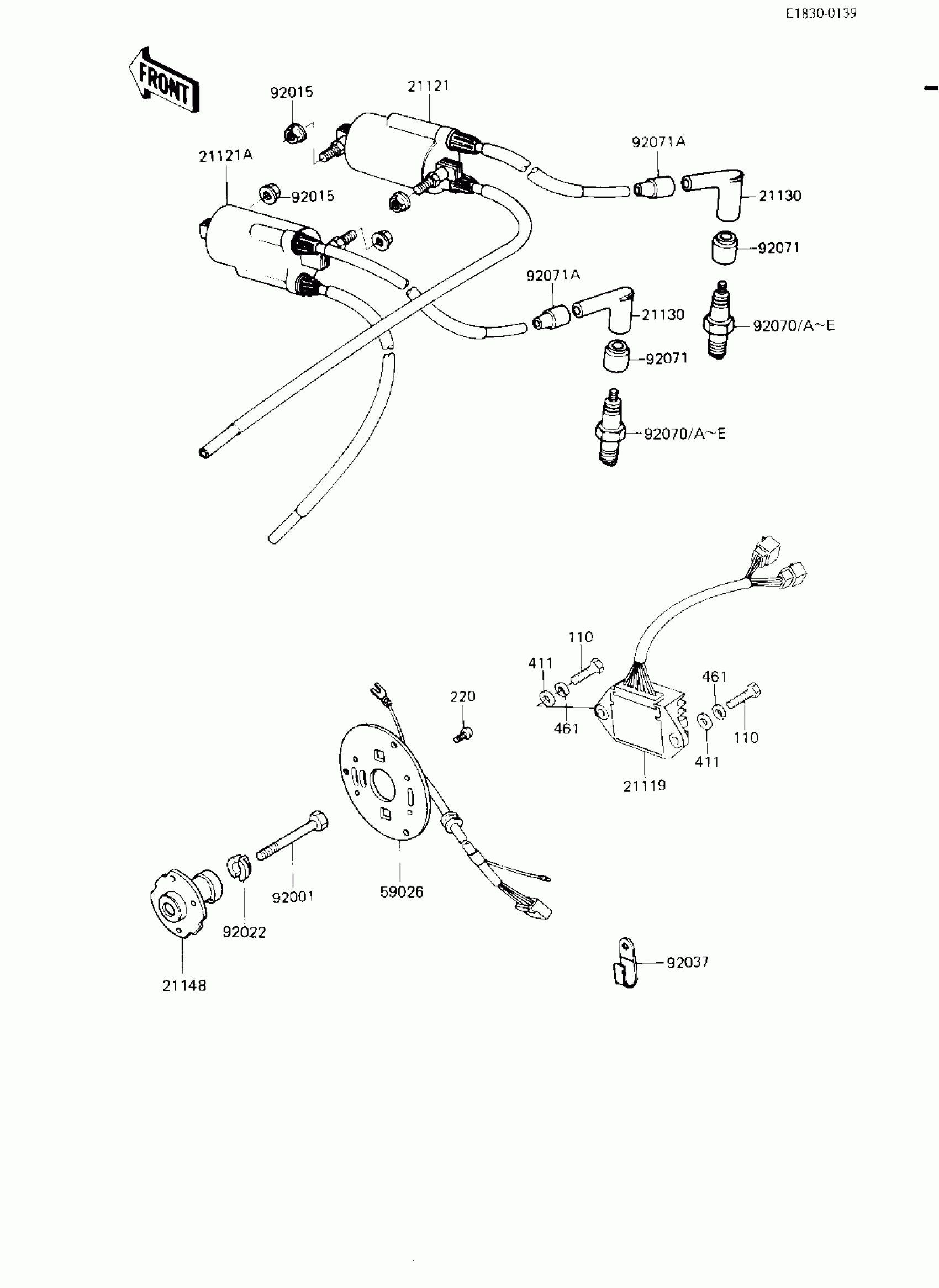

Kawasaki KZ750-L3 IGNITION Diagram

IGNITER

COIL,IGNITION #1.#4

COIL,IGNITION #2.#3

CAP-SPARK PLUG,RTFM20

ADVANCER,AUTO TIMING

COIL-PULSING

BOLT,8X63

NUT,FLANGED,6MM

WASHER,BREAKER GOVERNOR

CLAMP,WIRING HARNESS

SPARK PLUG B7ES

SPARK PLUG B8ES

SPARK PLUG BR8ES

GROMMET,PLUG CAP

GROMMET,HIGH TENSION

BOLT-UPSET

SCREW-PAN-CROS

WASHER PLAIN 6MM

WASHER SPRING 6MM
