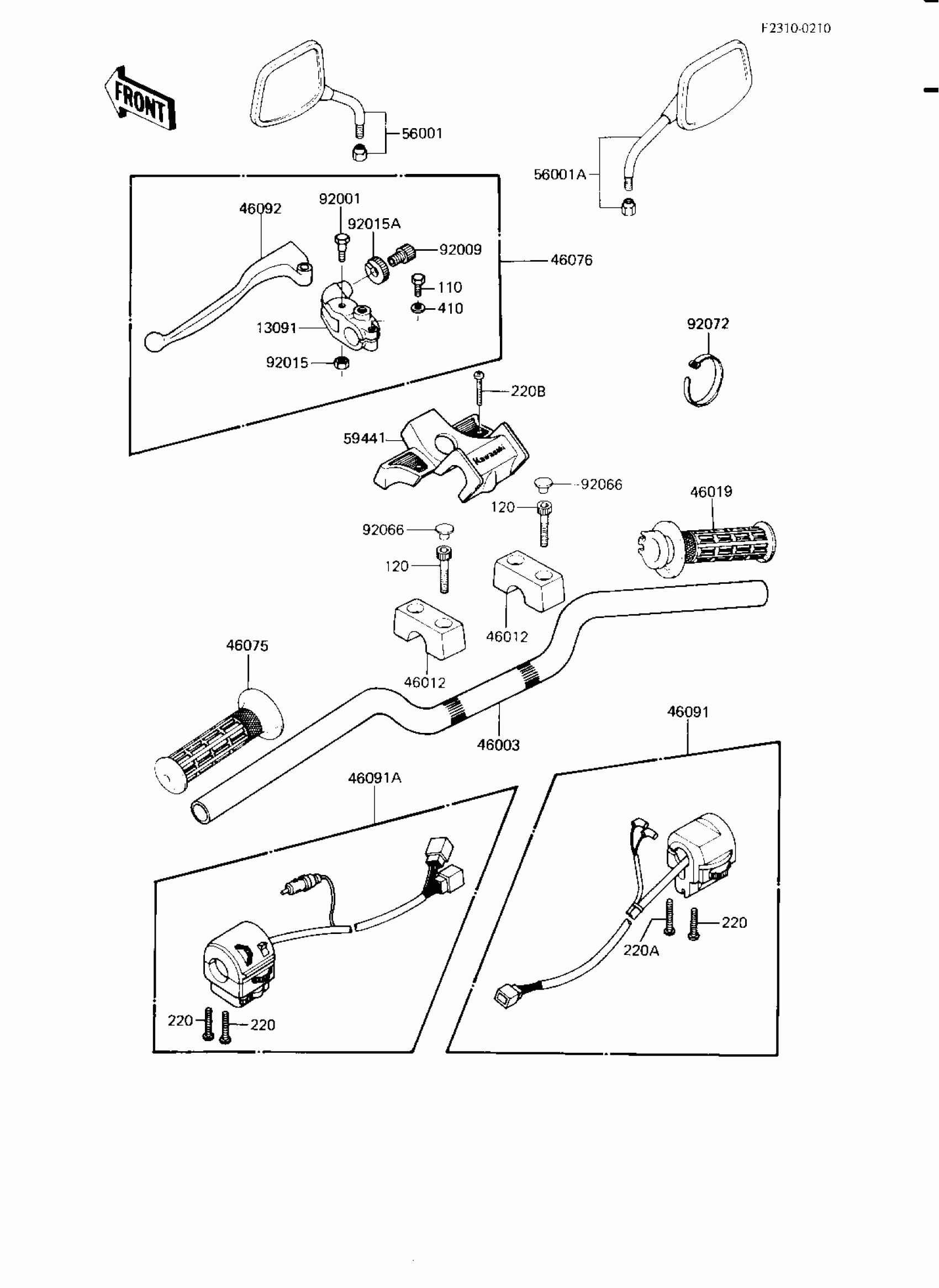

Kawasaki KZ750-L3 HANDLEBAR Diagram
#
Description
Price
13091
HOLDER,CLUTCH LEVER,F.BLACK
13091-1046
$50.69
46003
HANDLE
46003-1122
$189.17
46012
HOLDER-HANDLE
46012-1027
Unavailable
46019
GRIP-ASSY,THROTTLE
46019-1015
$51.06
46075
GRIP,LH
46075-1022
$16.96
46076
LEVER-ASSY-GRIP.CLUTC
46076-1036
$60.47
46091
HOUSING-ASSY-CNTRL,RH
46091-1214
Unavailable
46091A
HOUSING-ASSY-CNTRL,LH
46091-1228
Unavailable
46092
LEVER-GRIP,CLUTCH
46092-1041
Unavailable
56001
MIRROR-ASSY,LH
56001-1352
Unavailable
56001A
MIRROR-ASSY,RH
56001-1353
Unavailable
59441
COVER-HANDLE
59441-1011
$34.55
92001
BOLT,CLUTCH LEVER,BLACK
92001-1548
$8.47
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92015A
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92066
PLUG
92066-1216
$4.65
92072
BAND,L=149
92072-031
$5.00
110
BOLT,6X22,BLACK
110C0622
$4.37
120
BOLT-SOCKET,8X30
120S0830
$4.37
220
SCREW-PAN-CROS
220B0535
$3.70
220A
SCREW-PAN-CROS
220B0540
$3.41
220B
SCREW-PAN-CROS,4X16
220C0416
$1.69
410
WASHER-PLAIN-SMALL,6MM,BLACK
410F0600
$0.72
