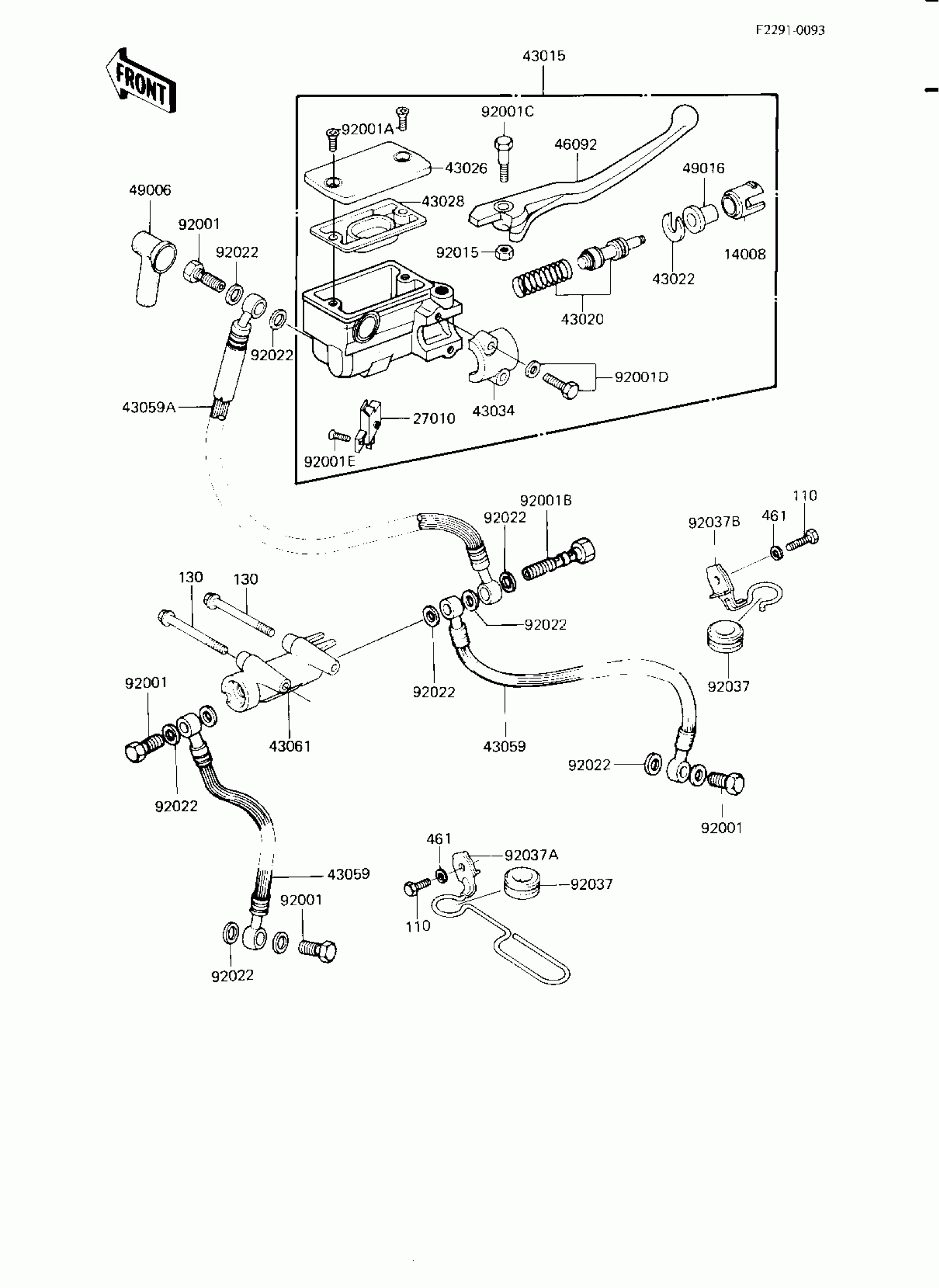

Kawasaki KZ750-L3 FRONT MASTER CYLINDER Diagram

#

Description
Price

14008

LINER,PISTON

14008-1035

$12.10

27010

SWITCH,BRAKE

27010-1056

$44.98

43015

CYLINDER-ASSY-MASTER.

43015-1118

Unavailable

43020

PISTON-COMP-BRAKE

43020-1079

$88.18

43022

STOPPER-BRAKE,PISTON

43022-1009

$5.78

43026

CAP-BRAKE,FR

43026-1023

Unavailable

43028

DIAPHRAGM,MASTER CYLINDER

43028-1029

$27.51

43034

HOLDER-BRAKE,MASTER C

43034-1013

Unavailable

43059

HOSE-BRAKE,FR,L=520

43059-1189

$111.80

43059A

HOSE-BRAKE

43059-1190

$60.50

43061

JOINT-BRAKE

43061-1004

$72.14

46092

LEVER-GRIP,FRONT BRAK

46092-1043

Unavailable

49006

BOOT,DUST

49006-1067

$9.88

49016

COVER-SEAL,BRAKE PISTON

49016-1041

$10.85

92001

BOLT,OIL,L=23

92002-1888

$5.48

92001A

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

92001B

BOLT,OIL,L=37

92002-1909

$11.83

92001C

BOLT,6X37.3,BLACK

92001-1512

$9.90

92001D

BOLT,6X25,W/WASHER,BLACK

92001-1513

Unavailable

92001E

SCREW-CSK-CROS,4X10,BLACK

92001-1532

$4.87

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92037

GROMMET,HOSE CLAMP

43064-006

$4.31

92037A

CLAMP,BRAKE HOSE,LH,

92037-1297

Unavailable

92037B

CLAMP,BRAKE HOSE,RH,

92037-1298

Unavailable

110

BOLT, 6X12, BLACK

112C0612

$2.53

130

BOLT-FLANGED,6X60

130G0660

$4.16

461

WASHER-SPRING,6MM,BLACK

461K0600

$0.64
