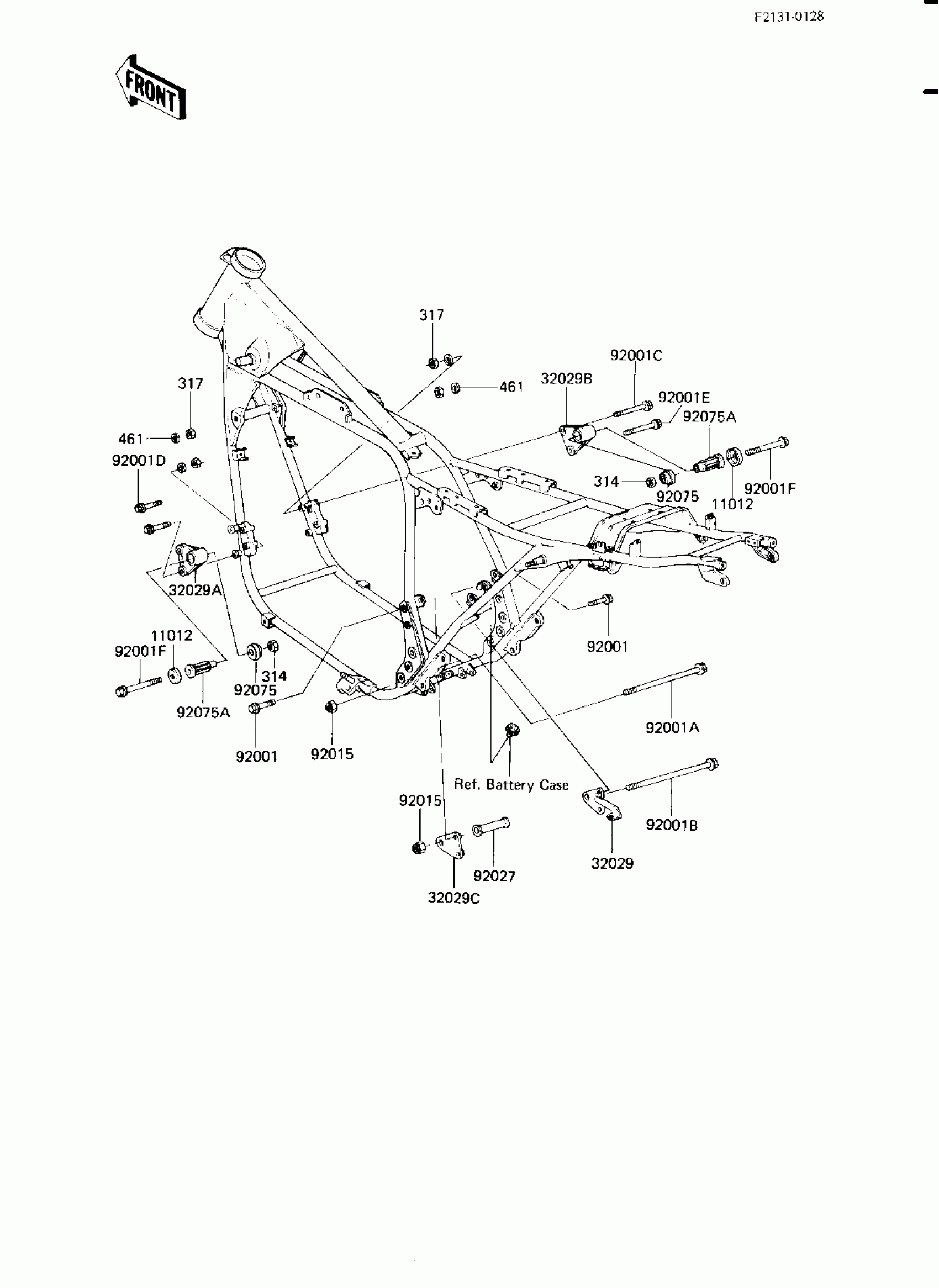

Kawasaki KZ750-L3 FRAME FITTINGS Diagram

CAP,ENGINE BRACKET

11012-1228

$7.49

PLATE,ENG.MOUNT,R.H.

32029-1129

$17.03

BRACKET-ENGINE,FR,LH

32029-1192

Unavailable

BRACKET-ENGINE,FR,RH

32029-1193

Unavailable

PLATE,RR ENG MONT,L.

32030-064

Unavailable

BOLT,FLANGED,8X40,BLACK

92001-1612

Unavailable

BOLT,FLANGED,10X225,BLACK

92001-1622

$22.63

BOLT,FLANGED,10X250

92001-1623

$19.39

BOLT,FLANGED,8X80,BLA

92001-1640

$3.51

BOLT,FLANGED,8X55,BLACK

92001-1641

$7.14

BOLT,FLANGED,8X75,BLA

92001-1642

$6.08

BOLT,FLANGED,10X105,BLACK

92001-1751

$8.10

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

COLLAR,L=54,BLACK

92027-1425

$9.14

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$16.49

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$31.41

NUT-HEX-FINE,10MM,BLACK

314C1000

Unavailable

NUT-HEX-SMALL,8MM,BLACK

317C0800

$0.73

WASHER-SPRING,8MM,BLACK

461K0800

Unavailable
